Terminals Of ECM

ECM

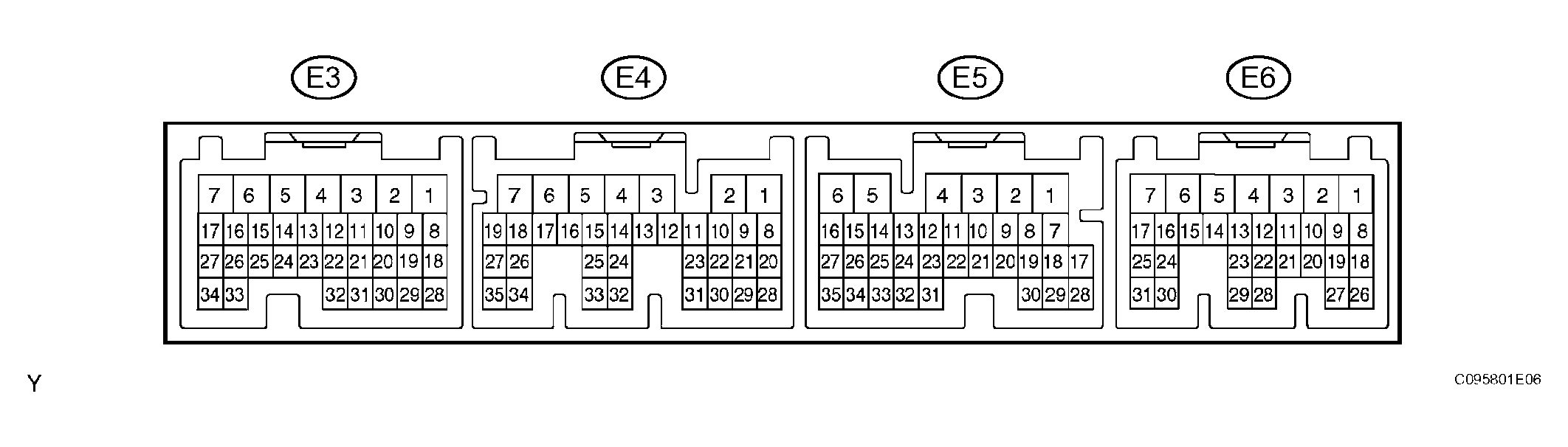

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

Use the illustration above as a reference for the ECM terminals.

TERMINAL DESCRIPTION SPECIFIED CONDITION

Symbols (Terminal No.)	Wiring Color	Terminal Description	Condition	Specified Condition
ODLP (E5-7) - E1 (E3-5)	LG - BR	O/D OFF indicator light circuit	IG switch ON and O/D OFF indicator light lights up	Below 3 V
ODLP (E5-7) - E1 (E3-5)	LG - BR	O/D OFF indicator light circuit	IG switch ON and O/D OFF indicator light goes off	10 to 14 V
L (E5-8) - E1 (E3-5)	LG-B - BR	L shift position switch signal	IG switch ON and shift lever L position	10 to 14 V
L (E5-8) - E1 (E3-5)	LG-B - BR	L shift position switch signal	IG switch ON and shift lever except L position	Below 1 V
2 (E5-9) - E1 (E3-5)	LG - BR	2 shift position switch signal	IG switch ON and shift lever 2 position	10 to 14 V
2 (E5-9) - E1 (E3-5)	LG - BR	2 shift position switch signal	IG switch ON and shift lever except 2 position	Below 1 V
D (E5-10) - E1 (E3-5)	L - BR	D shift position switch signal	IG switch ON and shift lever D position	10 to 14 V
D (E5-10) - E1 (E3-5)	L - BR	D shift position switch signal	IG switch ON and shift lever except D position	Below 1 V
R (E5-11) - E1 (E3-5)	R-B - BR	R shift position switch signal	IG switch ON and shift lever R position	10 to 14 V
R (E5-11) - E1 (E3-5)	R-B - BR	R shift position switch signal	IG switch ON and shift lever except R position	Below 1 V
STP (E5-19) - E1 (E3-5)	G-W - BR	Stop light switch signal	Brake pedal is depressed	7.5 to 14 V
STP (E5-19) - E1 (E3-5)	G-W - BR	Stop light switch signal	Brake pedal is released	Below 1.5 V
SPD (E5-17) - E1 (E3-5)	V-W - BR	Speed signal	IG switch ON and rotate driving wheel slowly	Pulse generation
ODMS (E5-2) - E1 (E3-5)	LG-B - BR	O/D main switch signal	IG switch ON	10 to 14 V
ODMS (E5-2) - E1 (E3-5)	LG-B - BR	O/D main switch signal	IG switch ON and press continuously O/D main switch	Below 1 V
NSW (E3-16) - E1 (E3-5)	R - BR	Park neutral switch signal	IG switch ON and shift lever P and N position	Below 2 V
NSW (E3-16) - E1 (E3-5)	R - BR	Park neutral switch signal	IG switch ON and shift lever except P and N position	10 to 14 V
SL (E4-10) - E1 (E3-5)	L-W - BR	SL solenoid signal	IG switch ON	Below 1 V
SL (E4-10) - E1 (E3-5)	L-W - BR	SL solenoid signal	Vehicle driving under lock-up range	10 to 14 V
S1 (E4-11) - E1 (E3-5)	R-Y - BR	S1 solenoid signal	IG switch ON	10 to 14 V
			1st or 2nd gear	10 to 14 V
			3rd or O/D gear	Below 1 V
S2 (E4-9) - E1 (E3-5)	L - BR	S2 solenoid signal	IG switch ON	Below 1 V
			1st or O/D gear	Below 1 V
			2nd or 3rd gear	10 to 14 V
SLT+ (E4-13) - SLT- (E4-12)	R-W - P	SLT solenoid signal	IG switch ON	10 to 14 V
