Counter Shaft: Components

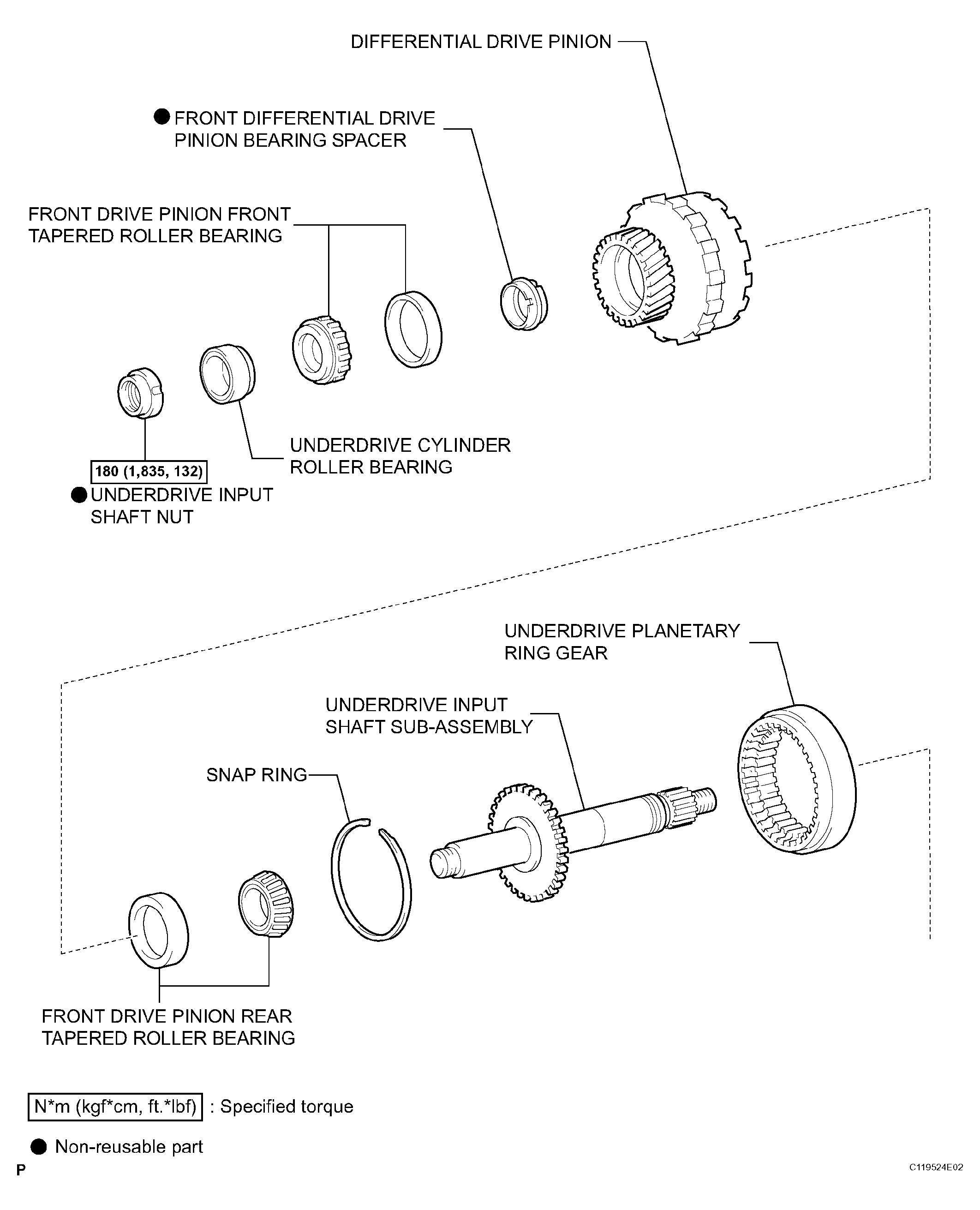

Fig 1: Exploded View Of Counter Shaft Components With Torque Specifications (1 Of 2)
G04463157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

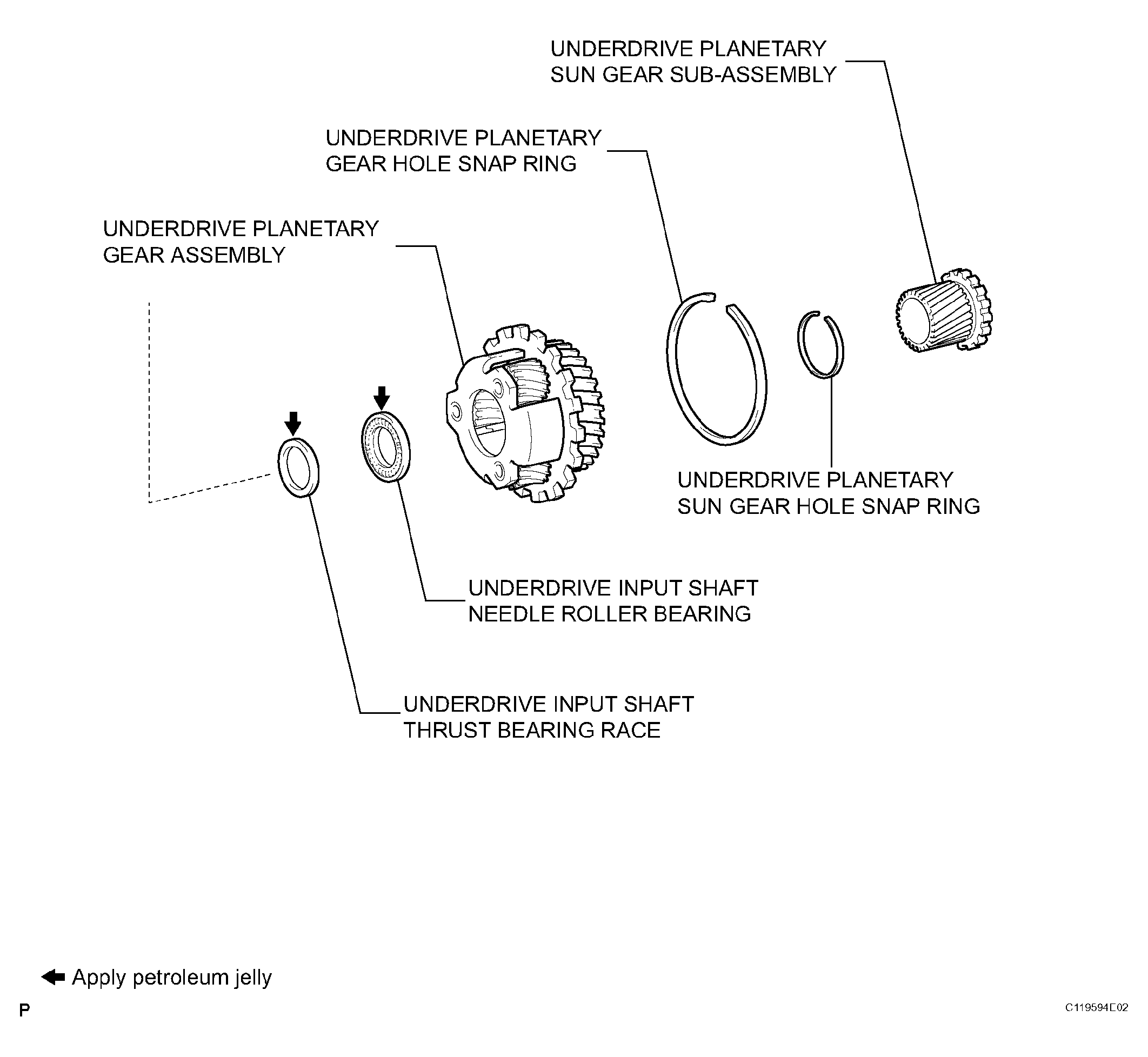

Fig 2: Exploded View Of Counter Shaft Components With Torque Specifications (2 Of 2)
G04463158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
