Differential Case: Components

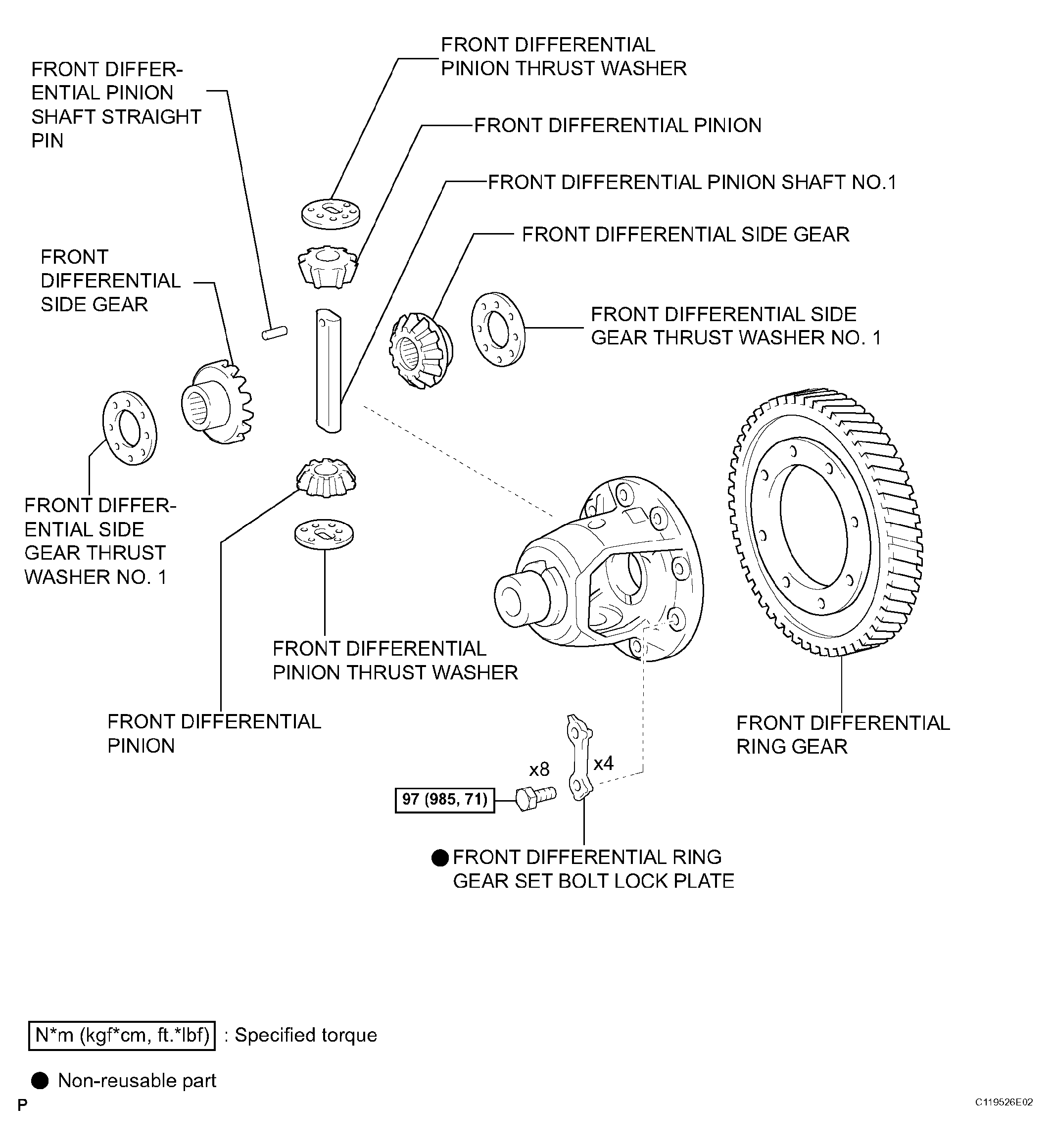

Fig 1: Exploded View Of Differential Case Components With Torque Specifications
G04463214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
