Transmission Control Cable Assembly: Removal

PRECAUTION
HINT:

(See PRECAUTION )
SEPARATE BATTERY NEGATIVE TERMINAL
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
HINT:

(See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR
HINT:

(See REMOVAL )
REMOVE INSTRUMENT PANEL BOX
HINT:

(See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
HINT:

(See REMOVAL )
REMOVE AIRBAG SENSOR ASSEMBLY CENTER
HINT:

(See REMOVAL )
SEPARATE OXYGEN SENSOR CONNECTOR
1. Remove the foot rest.
2. Pull up the floor carpet.
3. Disconnect the oxygen sensor connector.
REMOVE FLOOR PANEL BRACE FRONT
1. Remove the 2 nuts and floor panel brace.

REMOVE EXHAUST PIPE ASSEMBLY FRONT

TERMINAL DESCRIPTION SPECIFIED CONDITION

Type	See procedures
1ZZ-FE	REMOVAL
2ZZ-GE	REMOVAL

REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
1. Remove the 3 nuts and heat insulator.
REMOVE AIR CLEANER ASSEMBLY WITH HOSE
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the nut and disconnect control cable from control shaft lever.
2. Remove the clip and disconnect the control cable from the bracket.

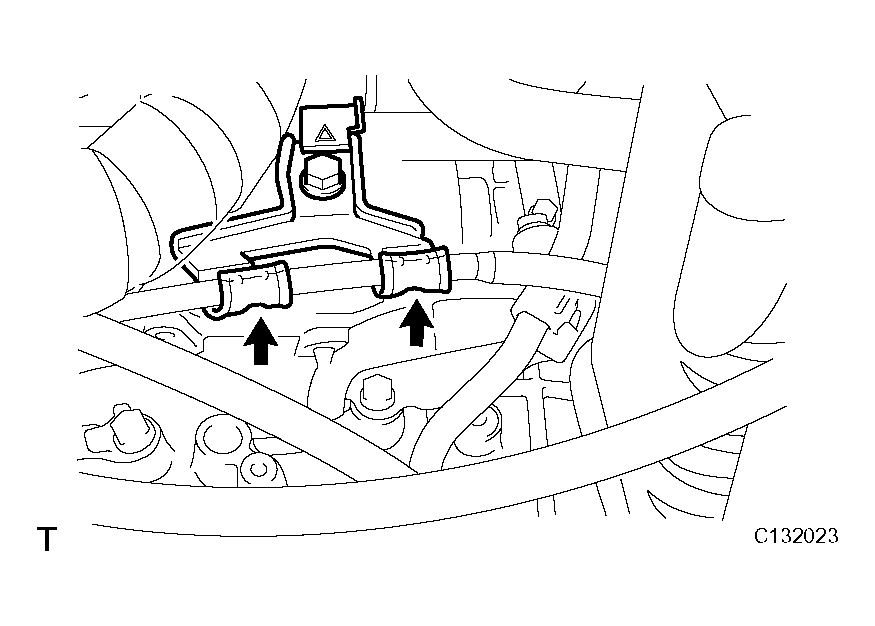

  Fig 1: Disconnecting Control Cable From Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the control cable from control cable support.

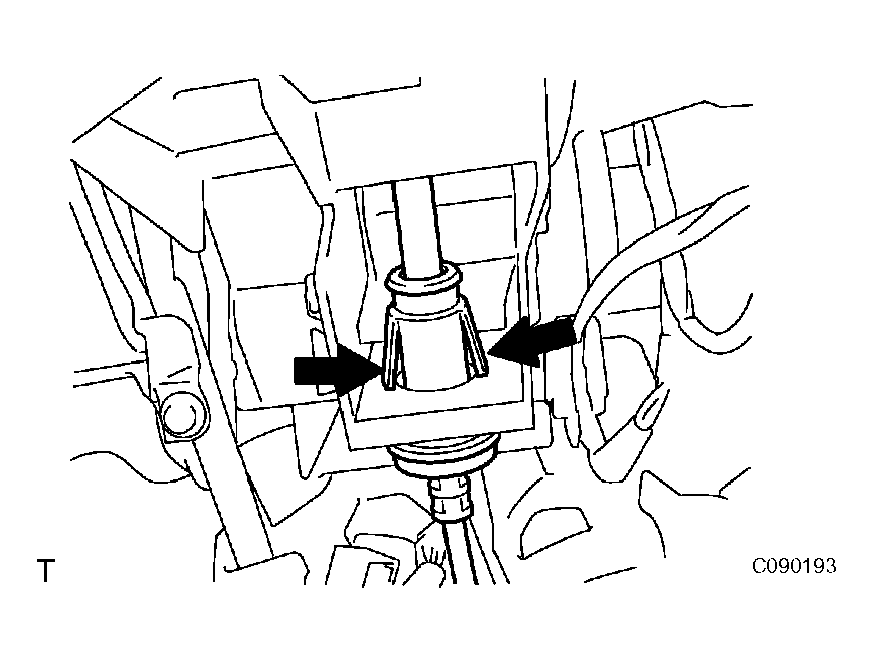

  Fig 2: Disconnecting Control Cable From Control Cable Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 nuts and separate the control cable from the body.

  Fig 3: Removing Separate Control Cable From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the cable end from the floor shift assembly.

  Fig 4: Removing Cable End From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disconnect the control cable from the shift lever plate.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 5: Disconnecting Control Cable From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts.
8. Pull out the control cable assembly from the body.
9. Remove the retainer from the shift cable.

  Fig 6: Removing Out Control Cable Assembly From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
