Stereo Component Amplifier Power Source Circuit: Wiring Diagram

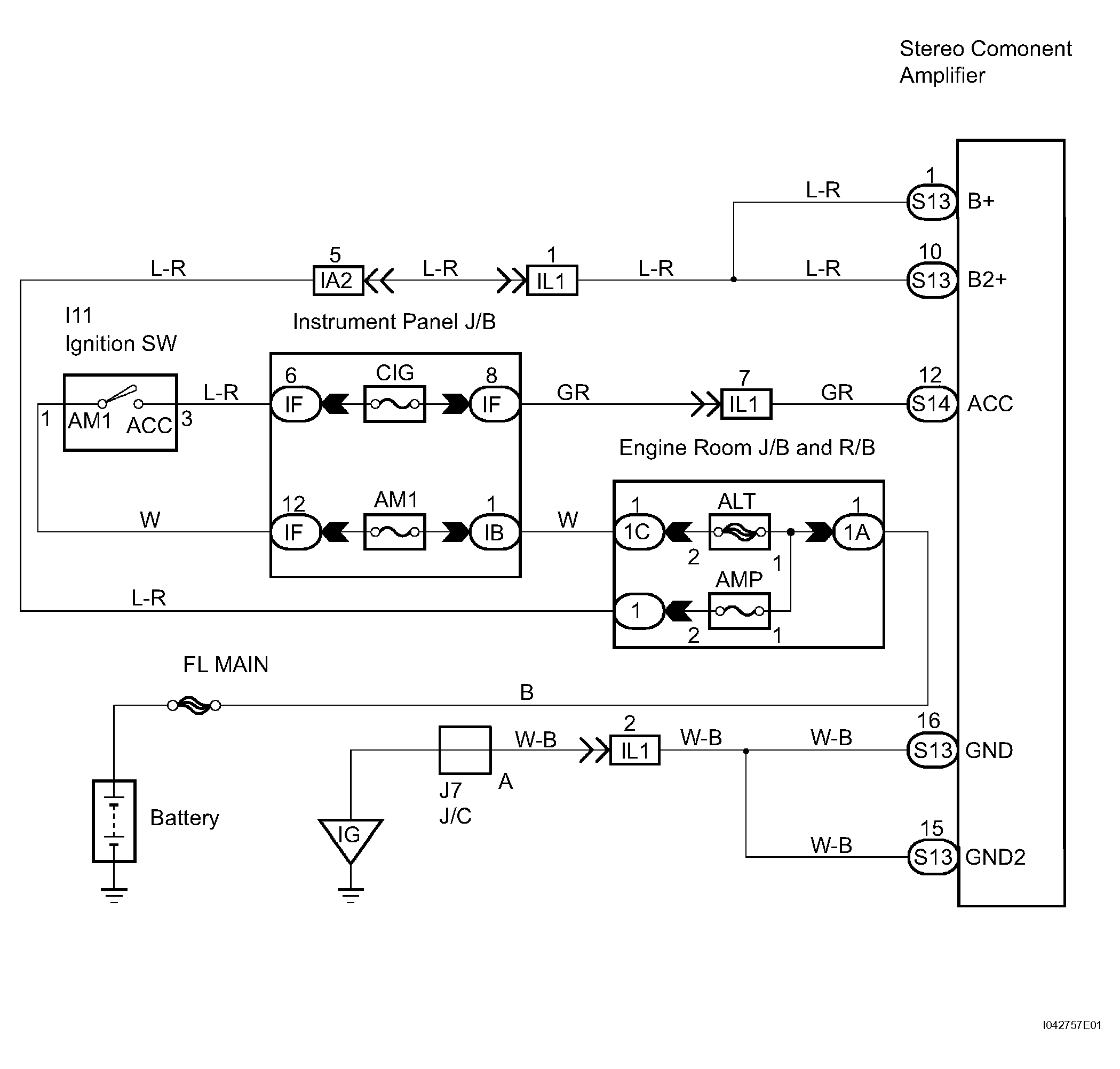

Fig 1: Stereo Component Amplifier Power Source Circuit Wiring Diagram
G04466723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
