Fuel Tank: Components

Fig 1: Exploded View Of Fuel Tank Components With Torque Specifications (1 Of 4)
G04462075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Fuel Tank Components With Torque Specifications (2 Of 4)
G04462076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

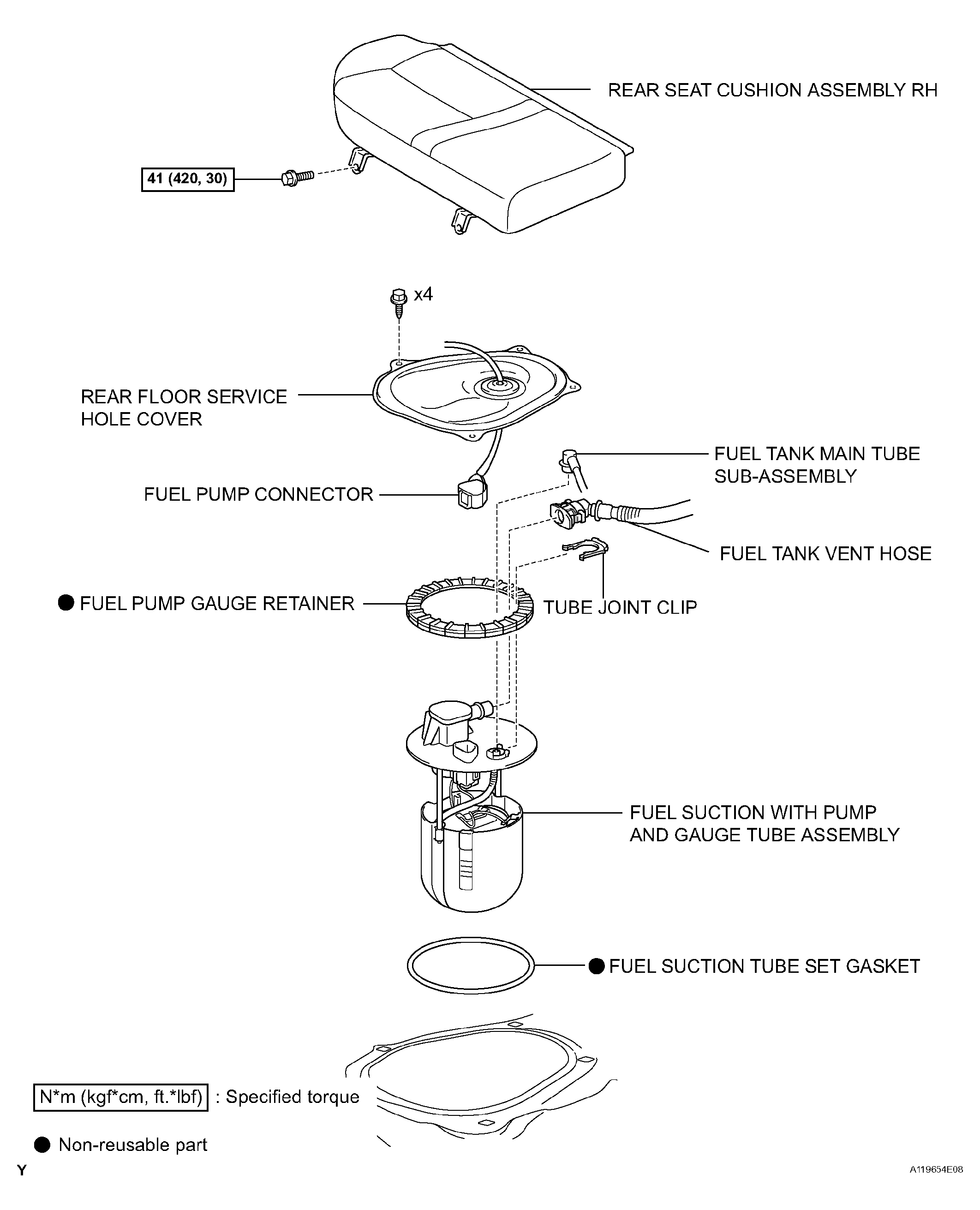

Fig 3: Exploded View Of Fuel Tank Components With Torque Specifications (3 Of 4)
G04462077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

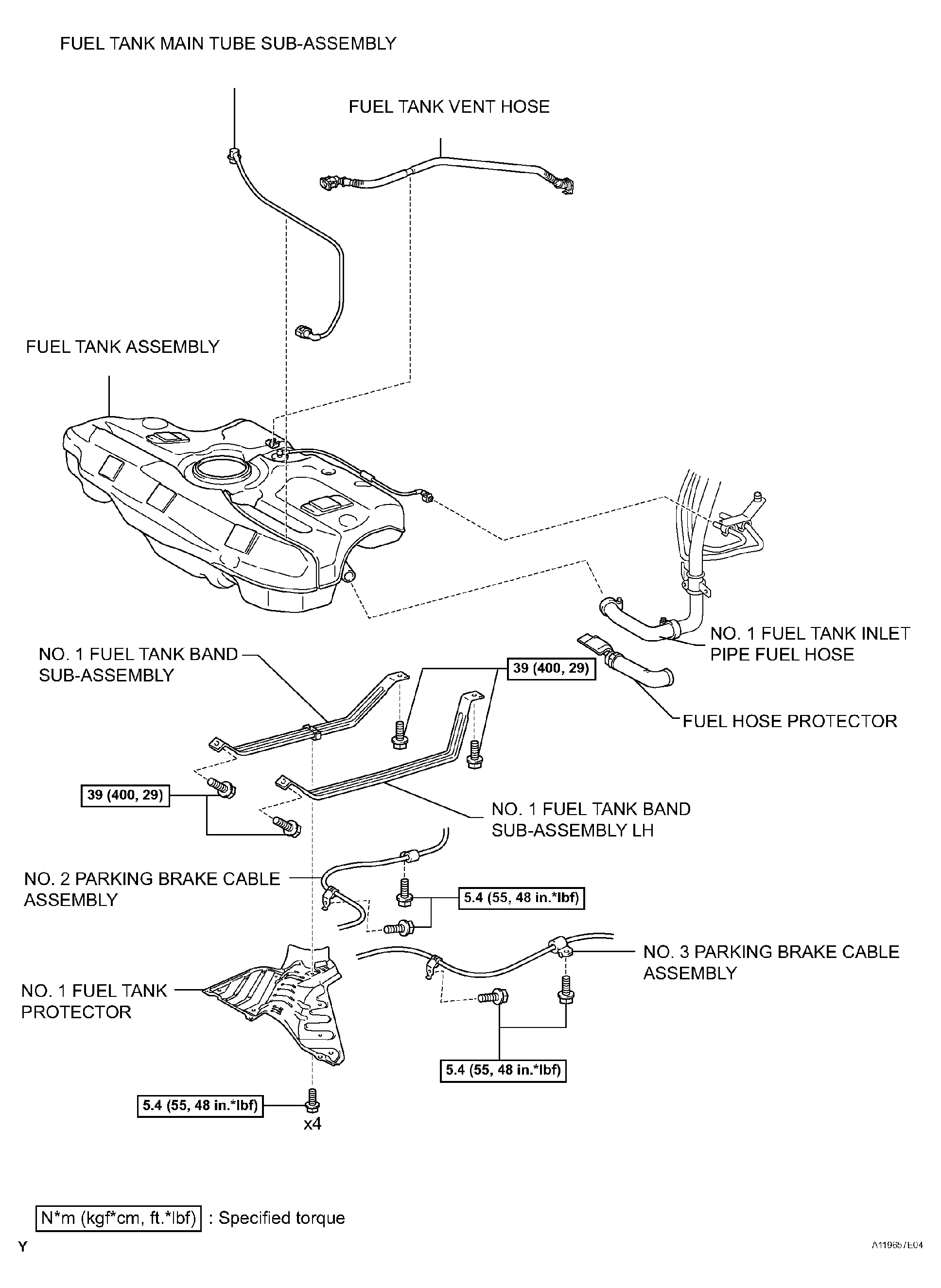

Fig 4: Exploded View Of Fuel Tank Components With Torque Specifications (4 Of 4)
G04462078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
