Radio Receiver: Removal

WARNING: This page is about a different car, the 2006 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE RADIO RECEIVER ASSEMBLY
1. Remove the 4 screws.
2. Disconnect the clamp from the No. 2 radio bracket.
3. Disconnect the connectors, then remove the radio receiver assembly.

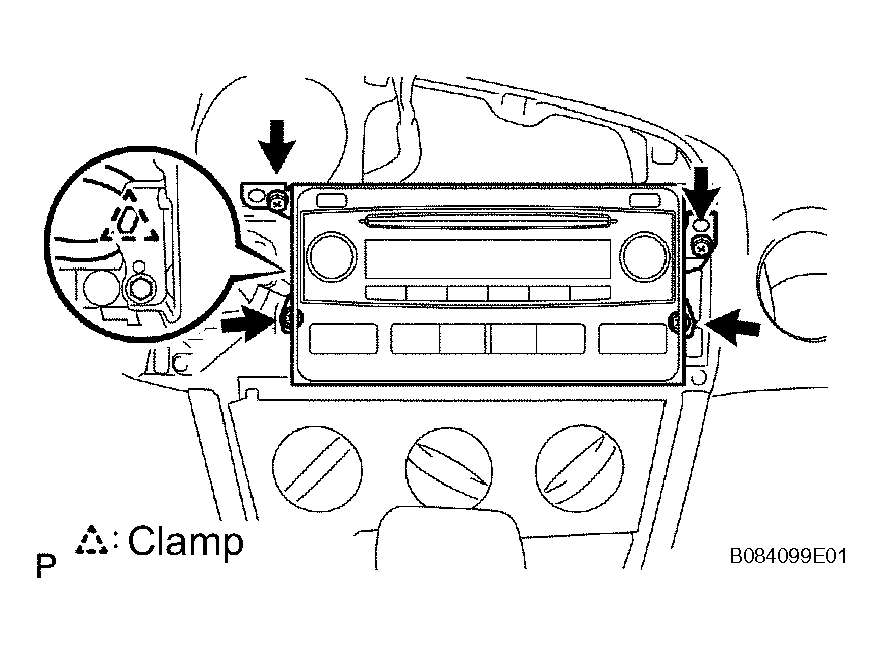

  Fig 1: Removing Radio Receiver Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 RADIO BRACKET
1. Remove the 4 screws and No. 1 radio bracket.

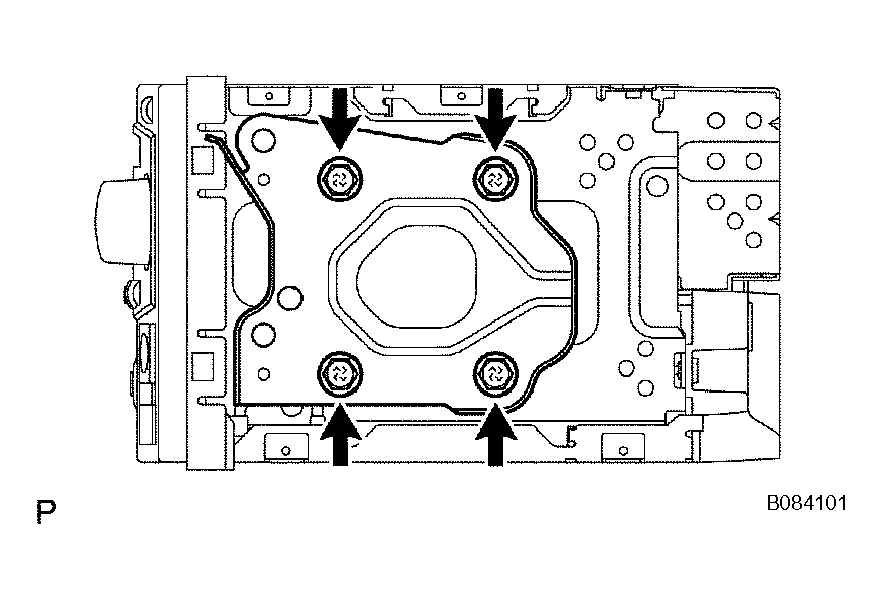

  Fig 2: Removing No. 1 Radio Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 4 screws and No. 2 radio bracket.

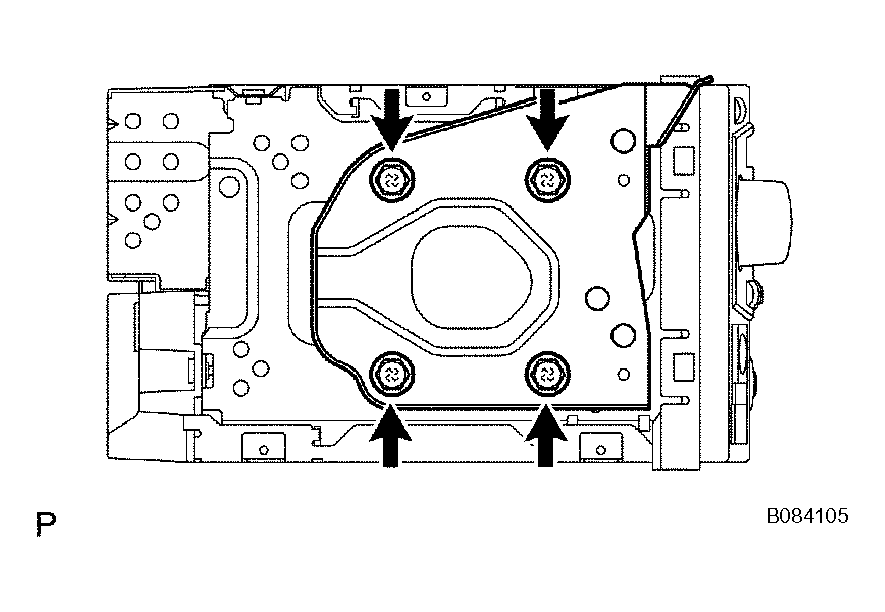

Fig 3: Removing No. 2 Radio Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER
