Battery Plug: Components

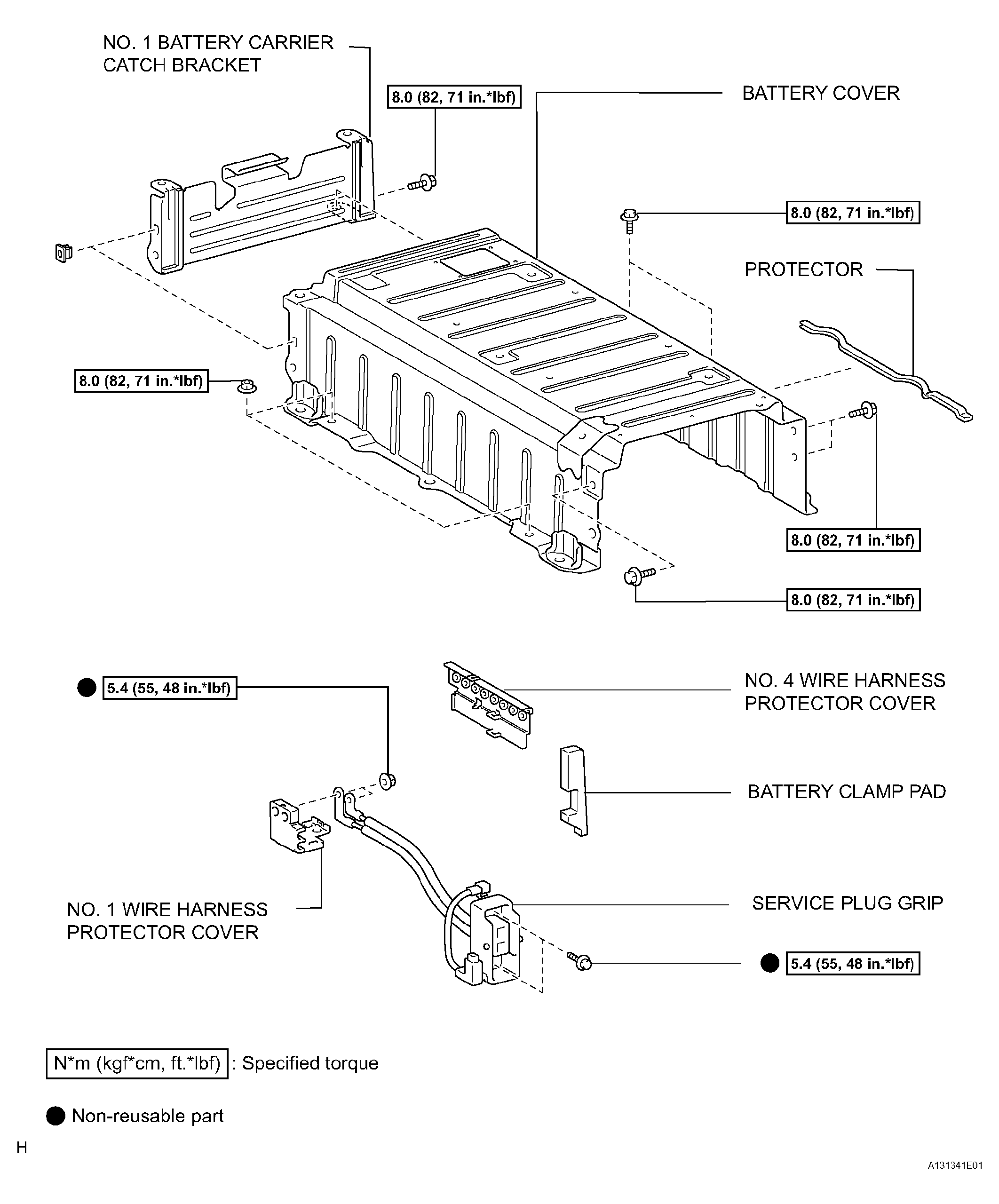

Fig 1: Identifying Battery Plug Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
