P112 Hybrid Battery Control System
>>
Junction Block
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Junction Block: Components

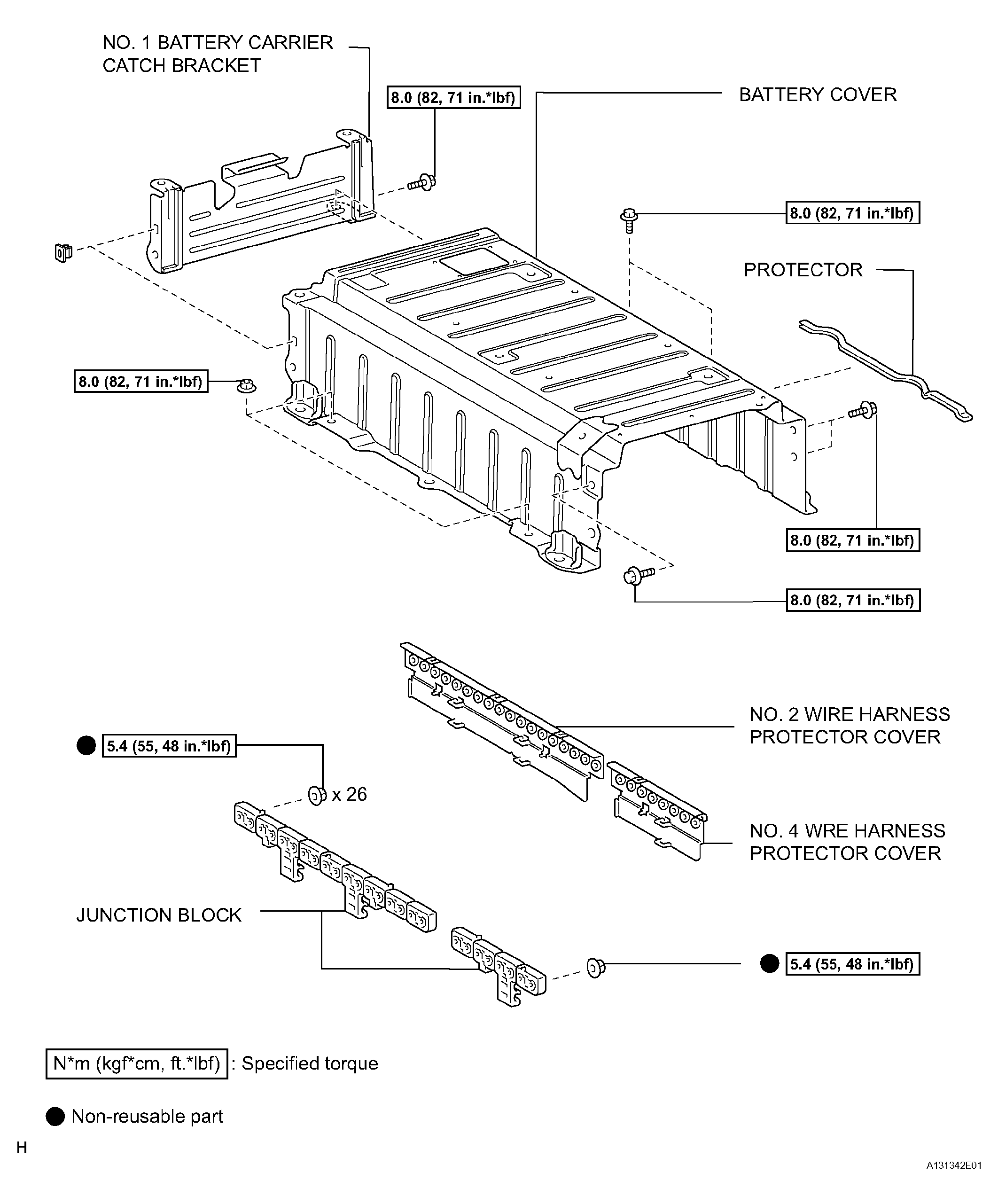

Fig 1: Identifying Junction Block Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
