Shift Control Actuator: Components

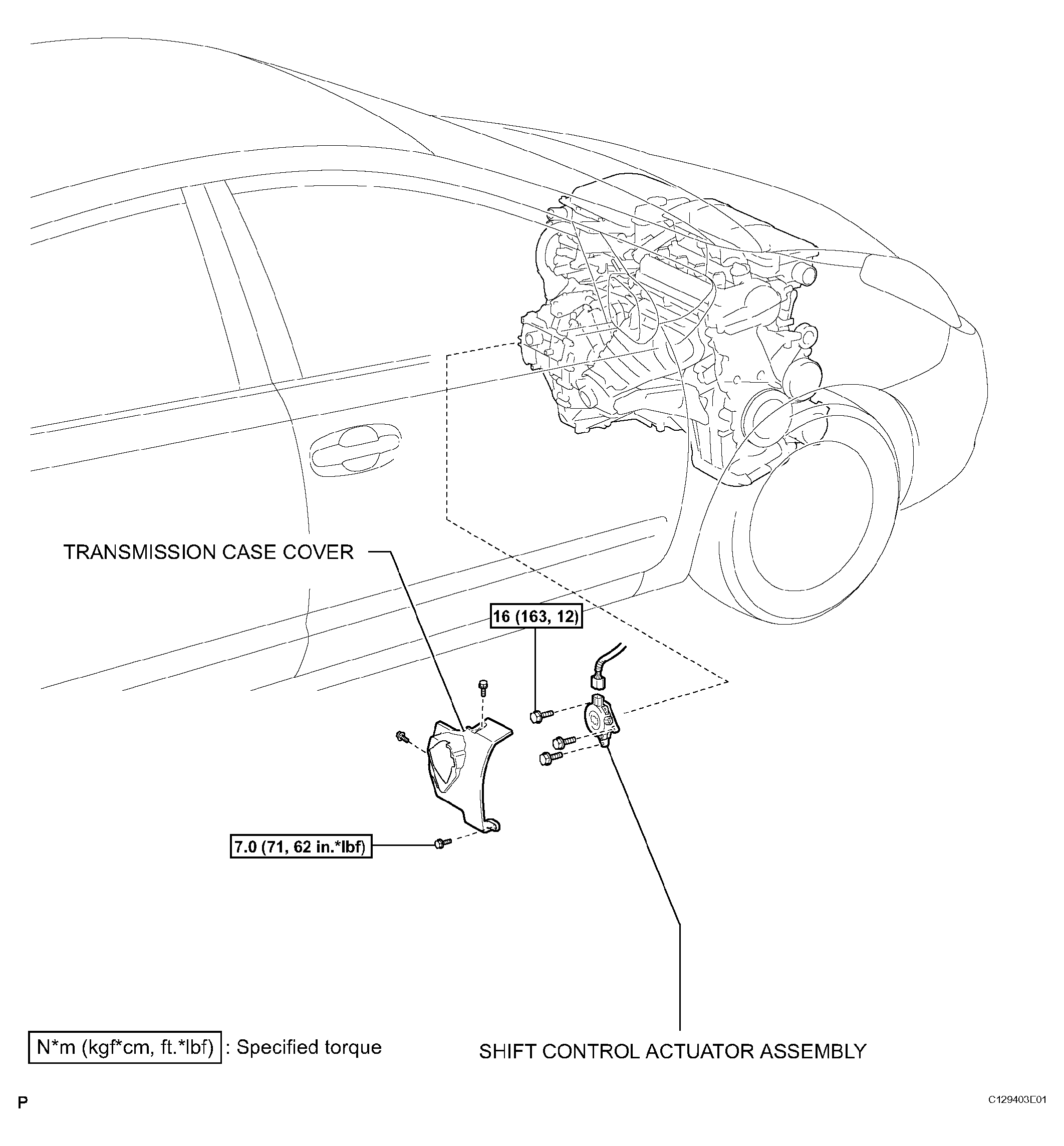

Fig 1: Shift Control Actuator Replacement Components With Torque Specifications
G04474098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
