Clock without Automatic Air Conditioning: Notes

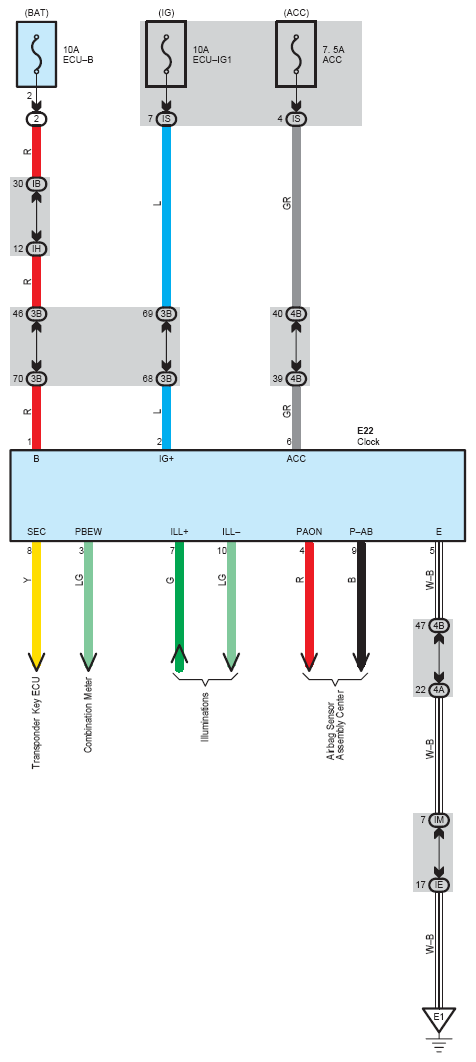

Fig 1: Clock Without Automatic Air Conditioning System Wiring Diagram
G08795510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
