Engine Control for 2GR-FE: Notes

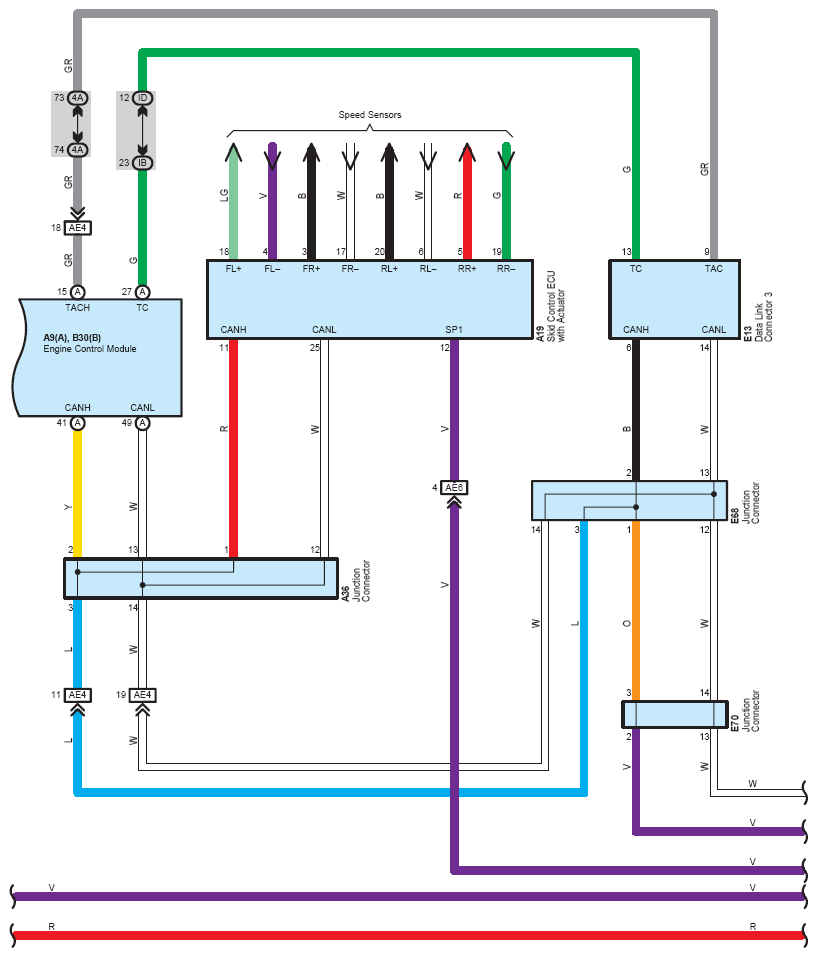

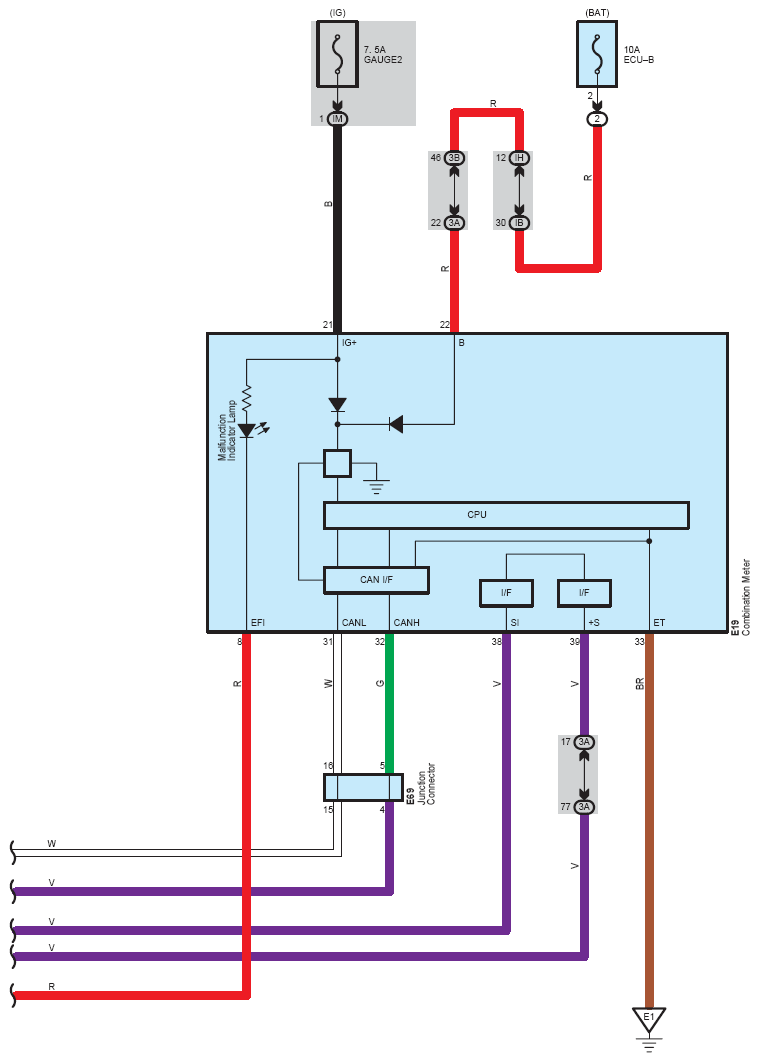

Fig 1: Engine Control For 2GR-FE System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

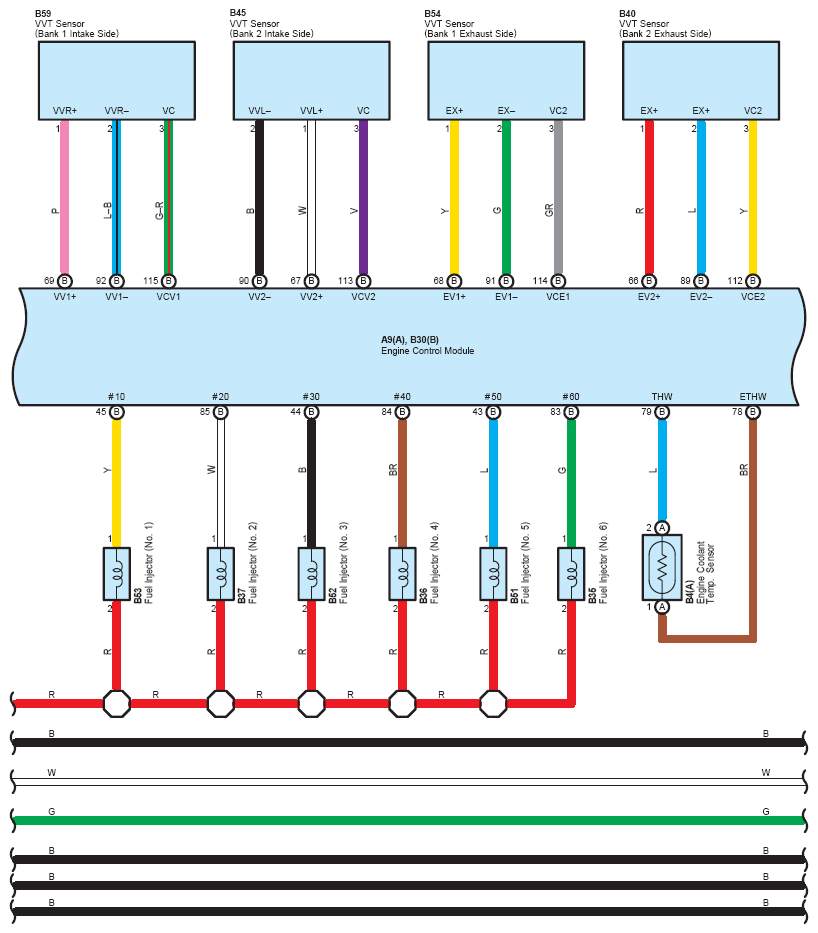

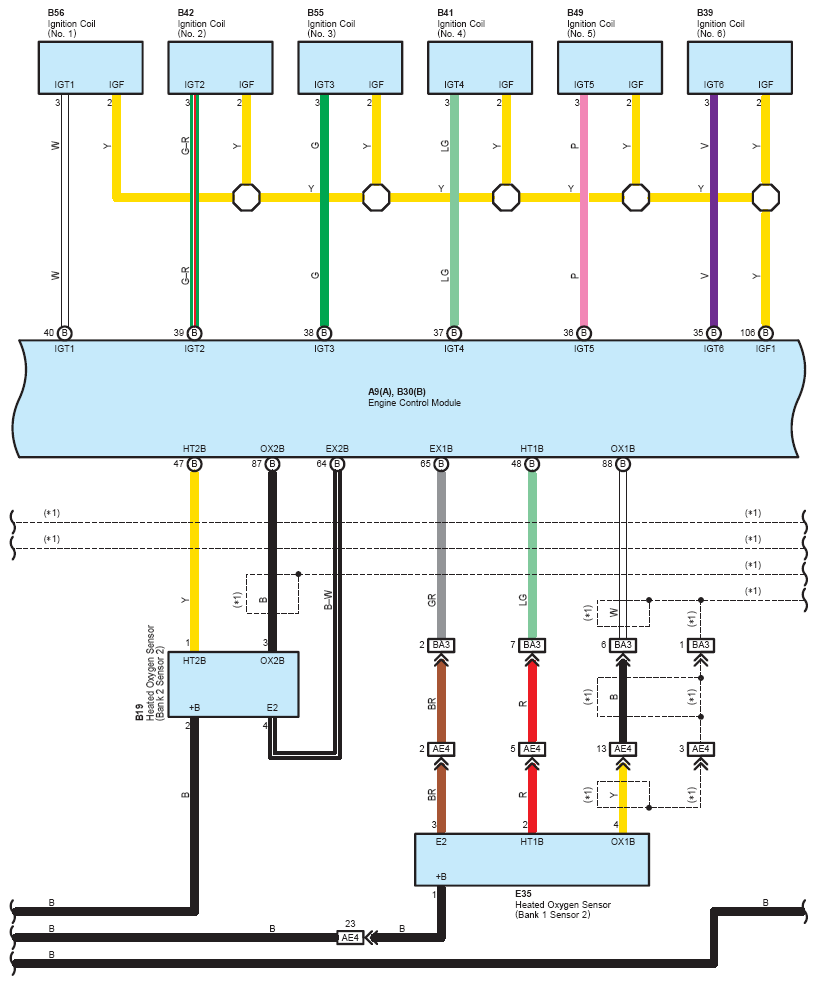

Fig 2: Engine Control For 2GR-FE System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

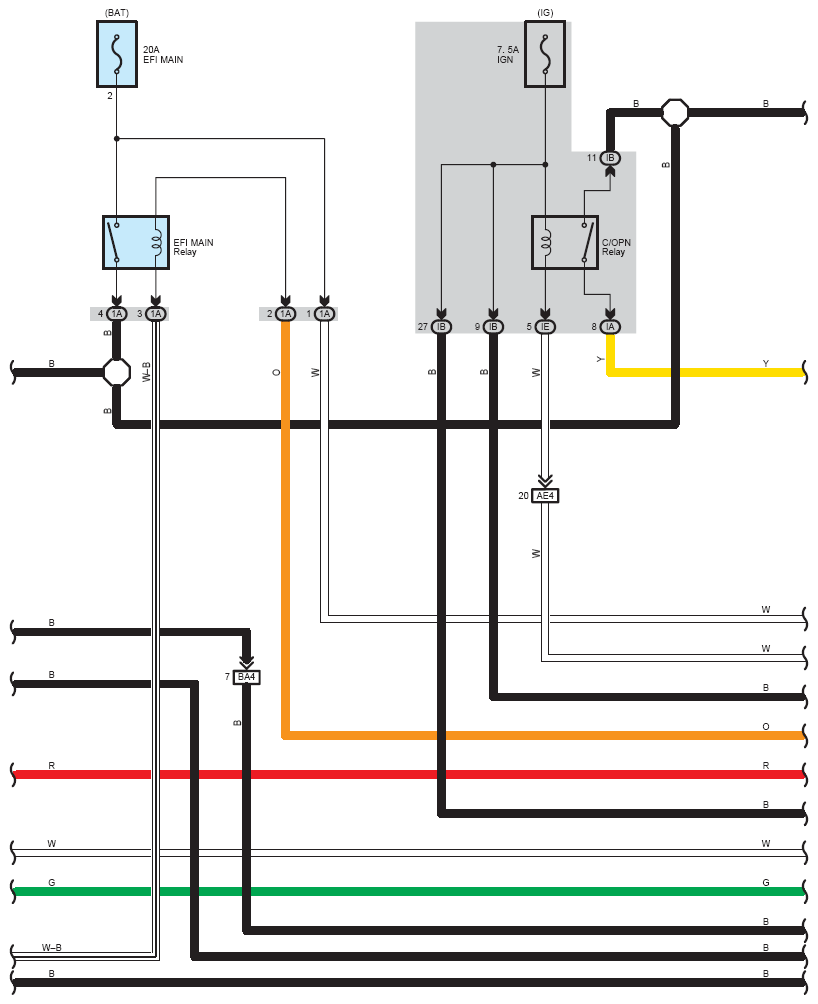

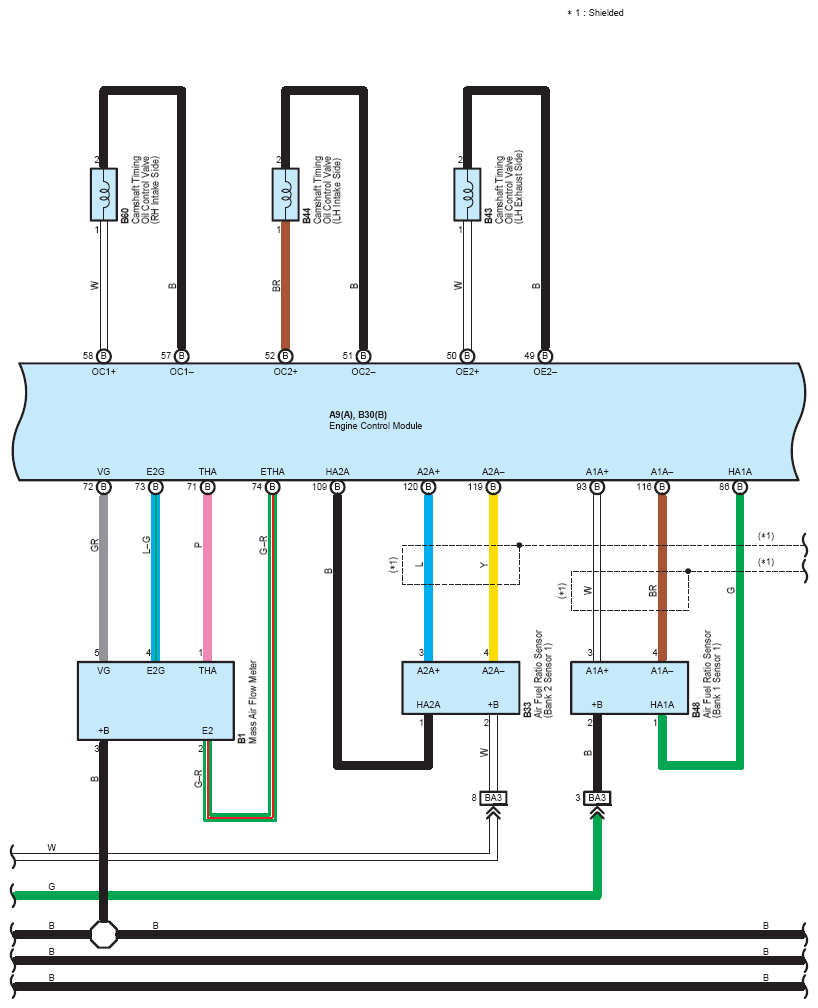

Fig 3: Engine Control For 2GR-FE System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

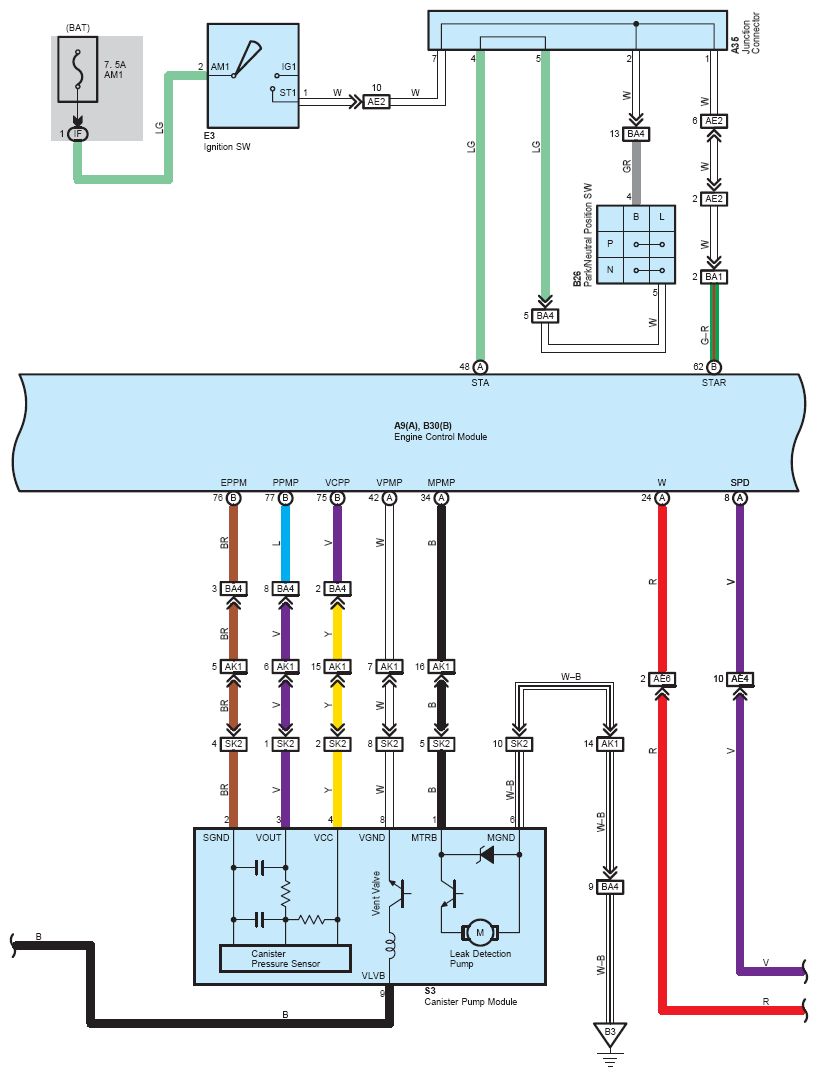

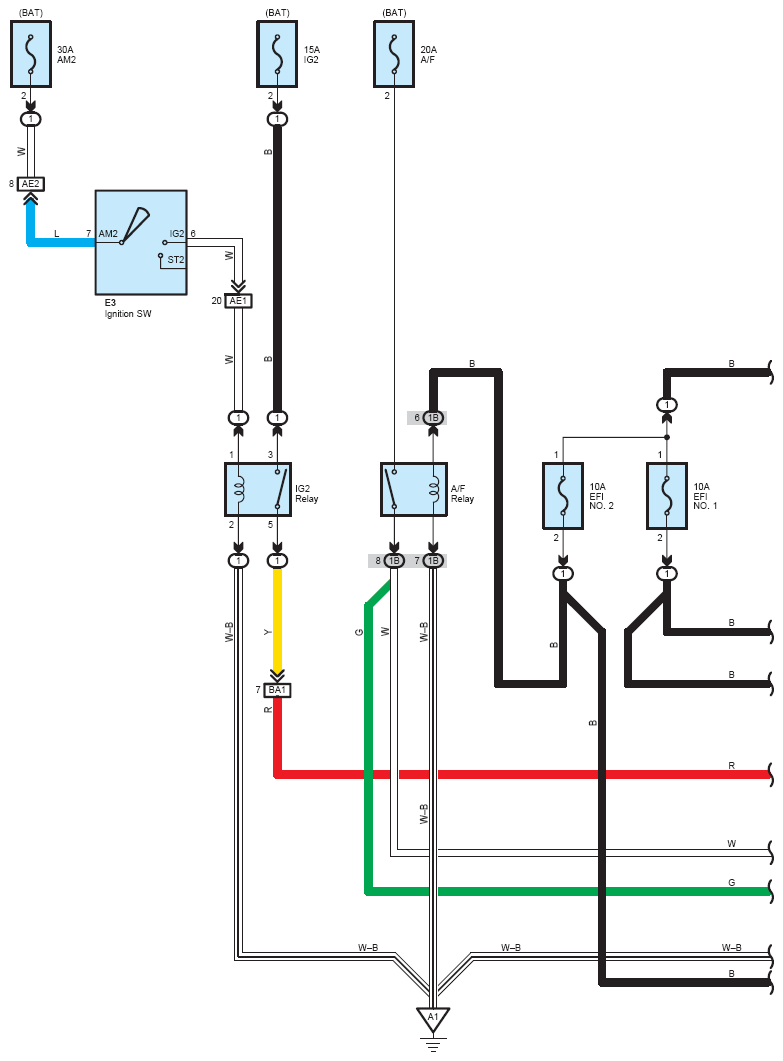

Fig 4: Engine Control For 2GR-FE System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

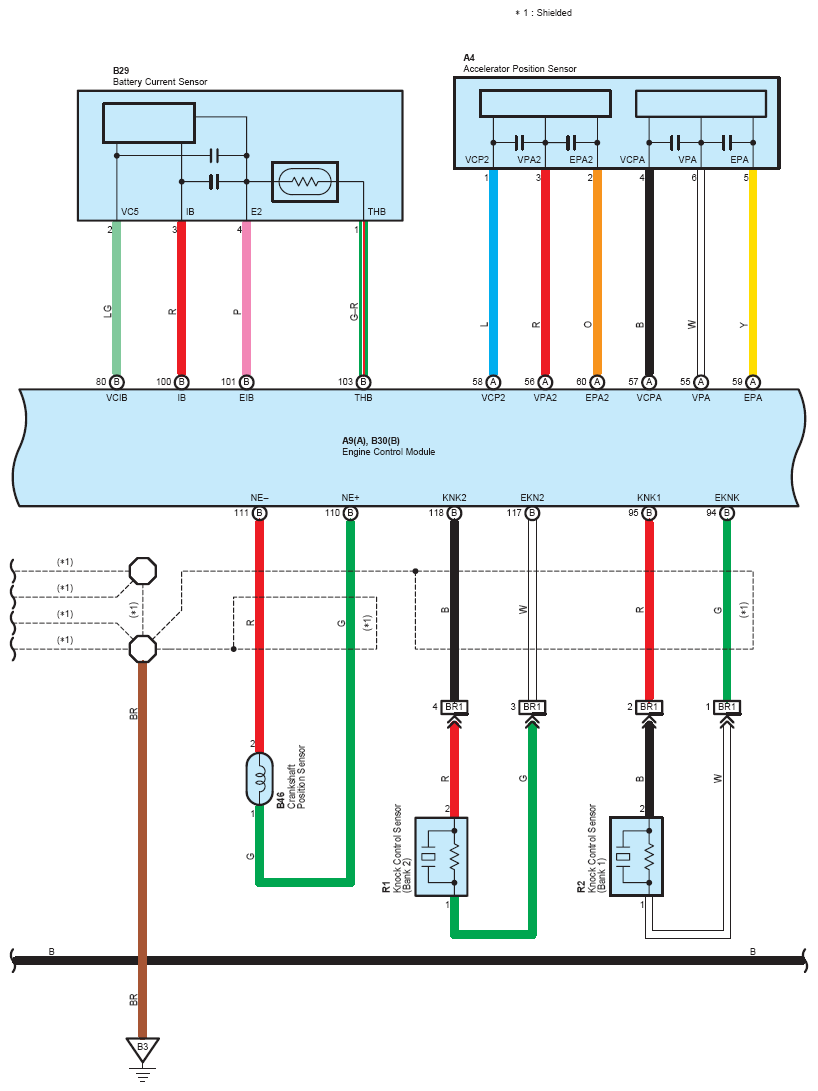

Fig 5: Engine Control For 2GR-FE System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

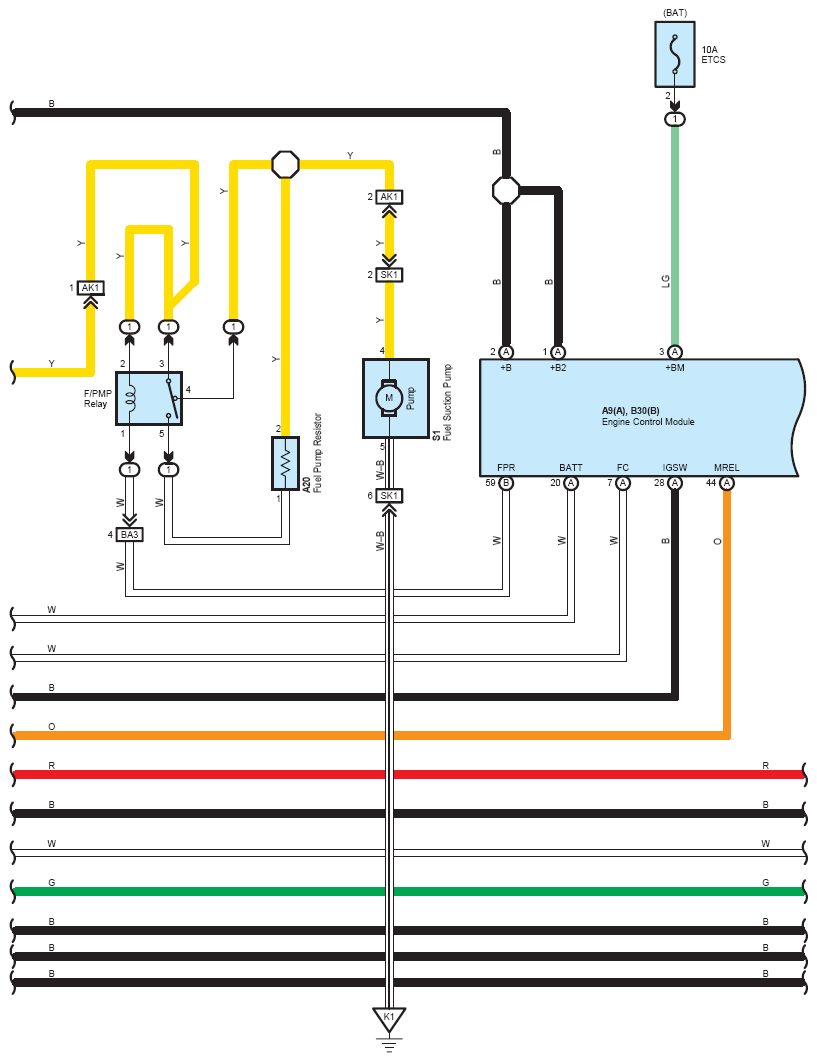

Fig 6: Engine Control For 2GR-FE System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

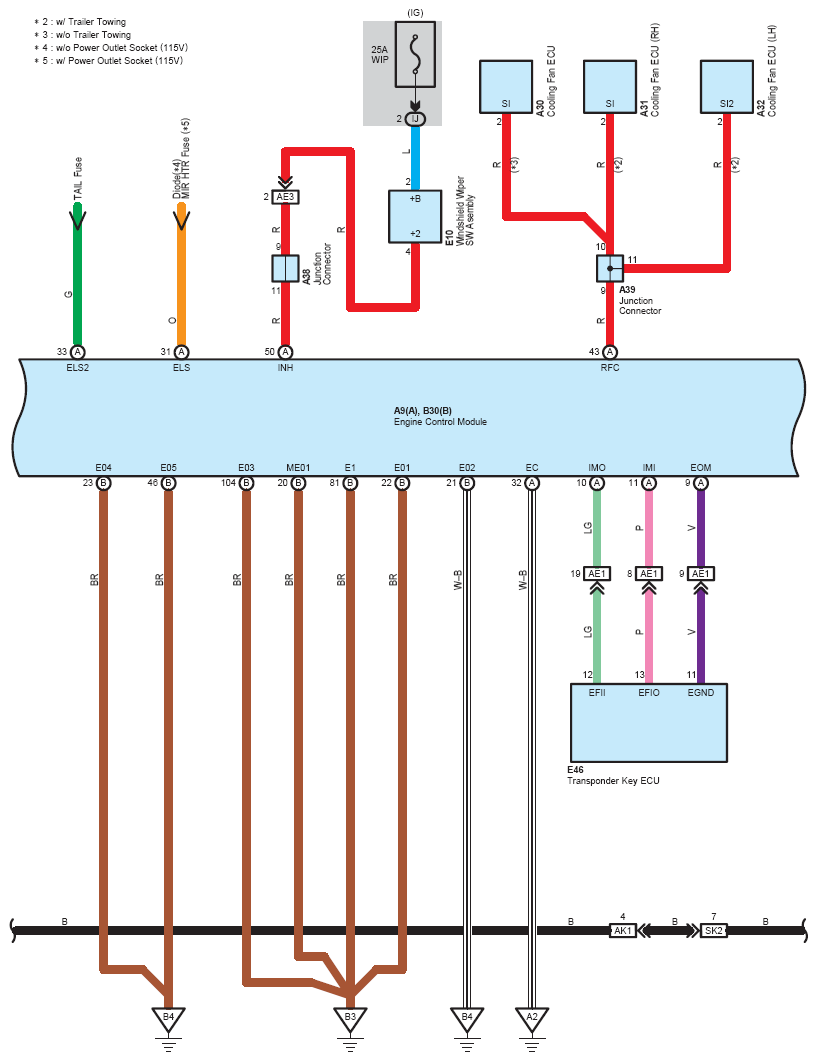

Fig 7: Engine Control For 2GR-FE System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

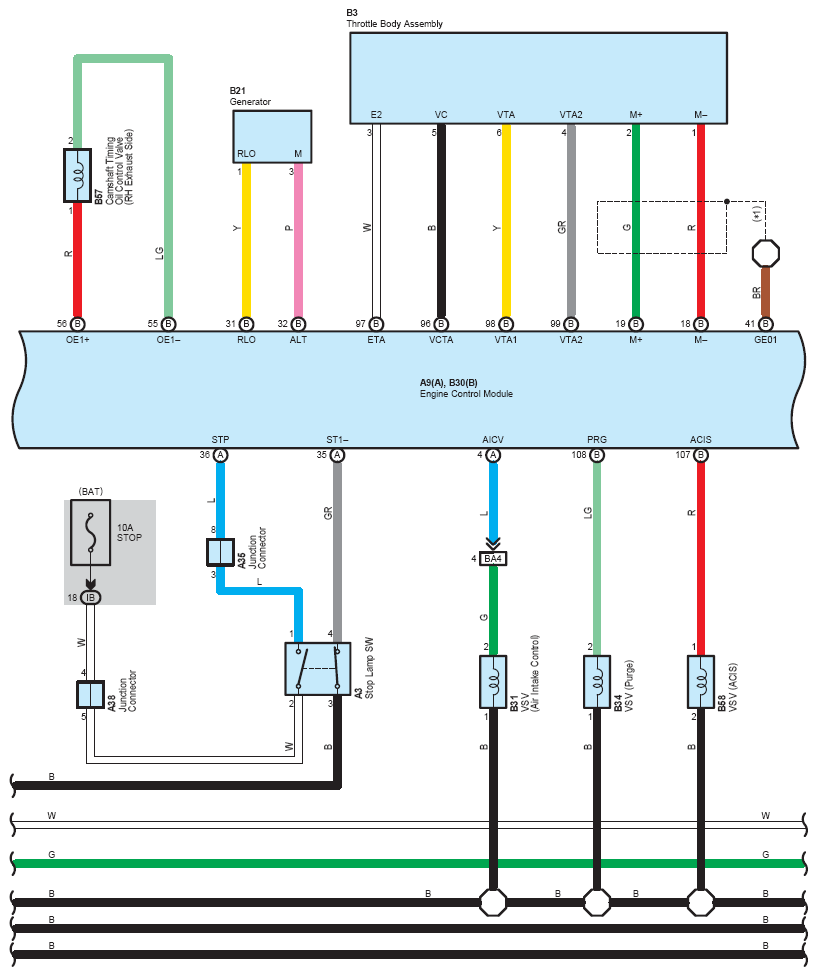

Fig 8: Engine Control For 2GR-FE System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control For 2GR-FE System Wiring Diagram (9 Of 12)

Fig 10: Engine Control For 2GR-FE System Wiring Diagram (10 Of 12)

Fig 11: Engine Control For 2GR-FE System Wiring Diagram (11 Of 12)

Fig 12: Engine Control For 2GR-FE System Wiring Diagram (12 Of 12)
