Multiplex Communication System - CAN: Notes

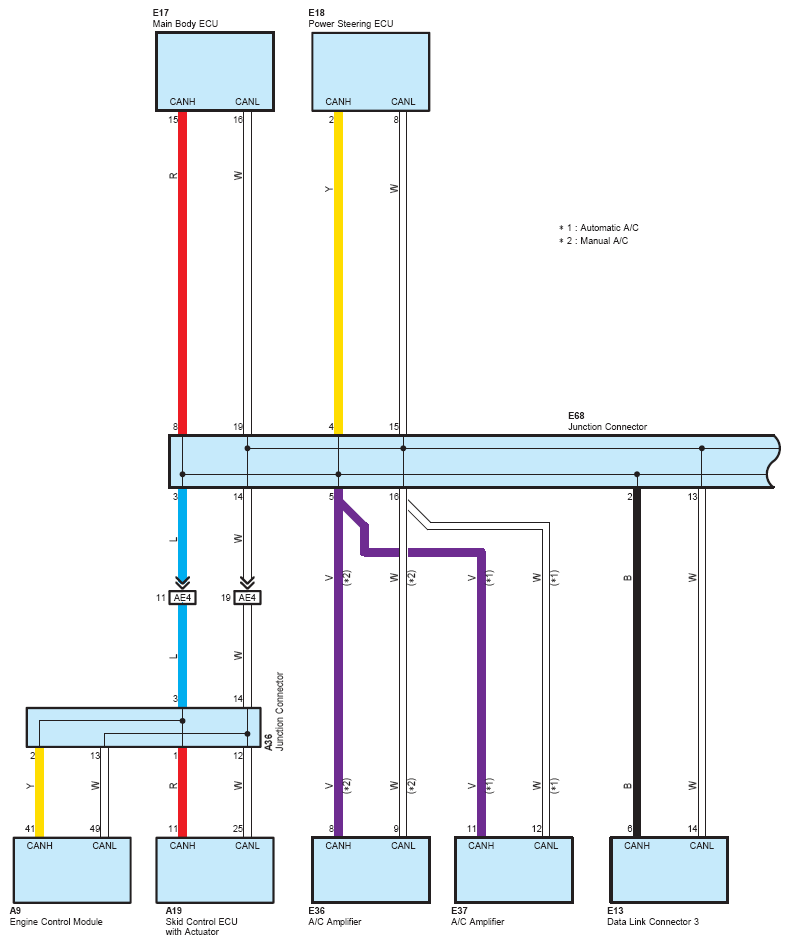

Fig 1: Multiplex Communication System - CAN (1 Of 2)
G08795375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

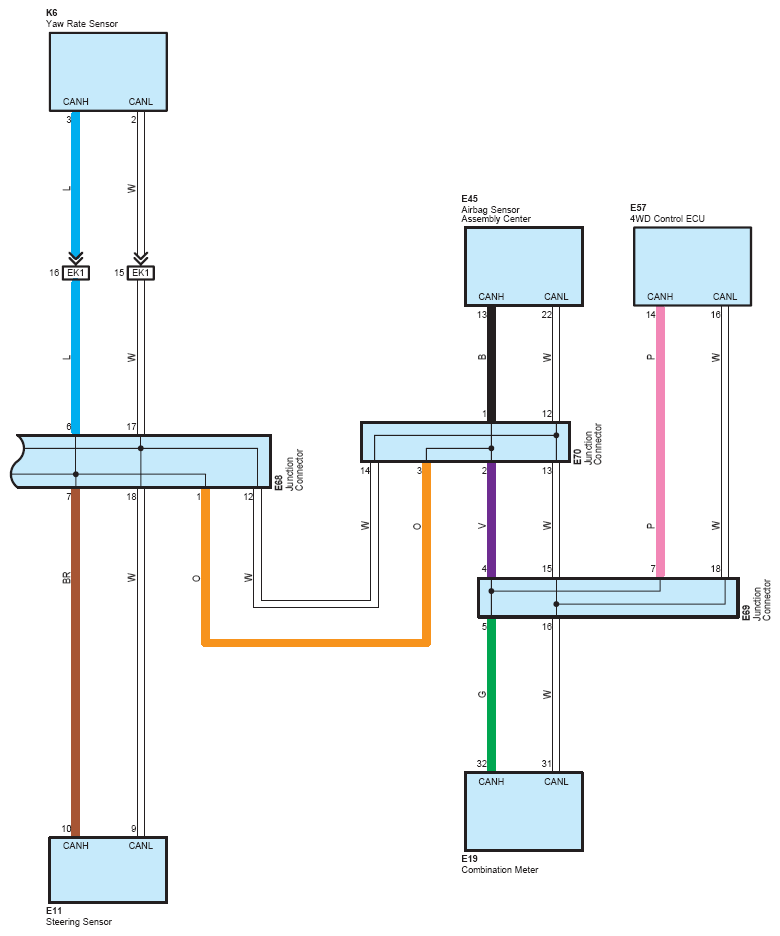

Fig 2: Multiplex Communication System - CAN (2 Of 2)
G08795376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
