Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a coat of engine oil to an O-ring of the sensor.
    2. Install the sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

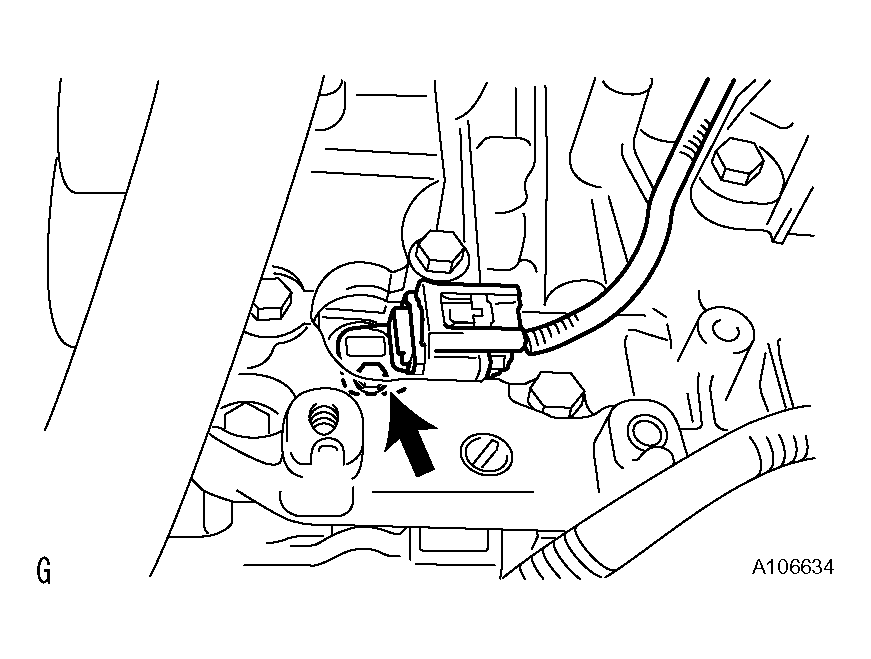

      Fig 1: Installing Crankshaft Position Sensor
      G04484546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the sensor connector.
  2. INSTALL COMPRESSOR WITH PULLEY ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FAN AND GENERATOR V BELT (See  INSTALLATION  )
  4. INSTALL RADIATOR ASSEMBLY
    1. Install the radiator assembly (see INSTALLATION ).
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. CHARGE REFRIGERANT (See appropriate step(s) under  REPLACEMENT  ).
  7. ADD ENGINE COOLANT (See appropriate step(s) under  COOLANT  ).
  8. CHECK FOR LEAKAGE OF REFRIGERANT (See appropriate step(s) under  REPLACEMENT  ).
  9. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
