Throttle Body: Installation

INSTALL THROTTLE BODY
1. Install a new gasket to the intake air surge tank.

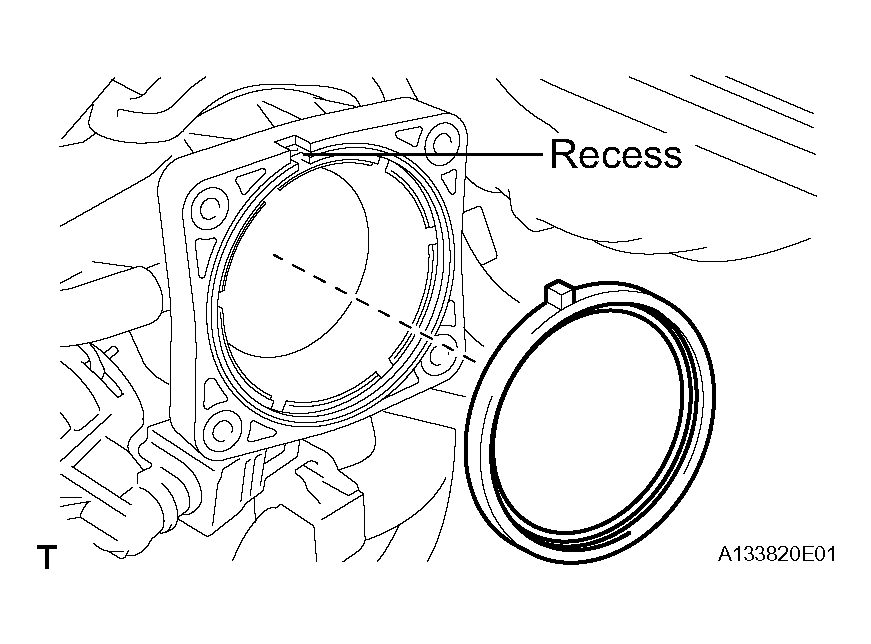

  Fig 1: Installing Gasket To Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle body and wire harness clamp stay to the intake air surge tank with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

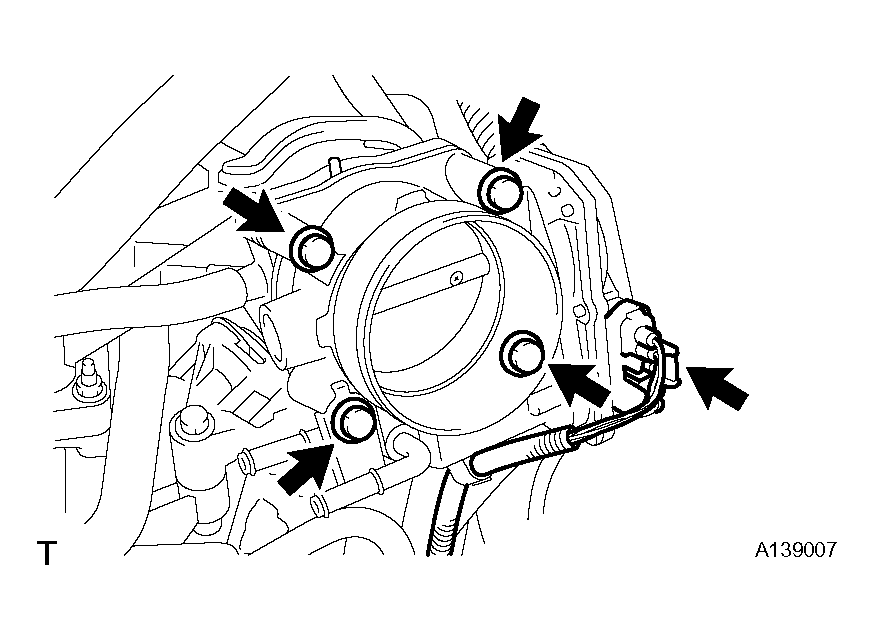

  Fig 2: Installing Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the control motor connector.
4. Connect the 2 water by-pass hoses to the throttle body.

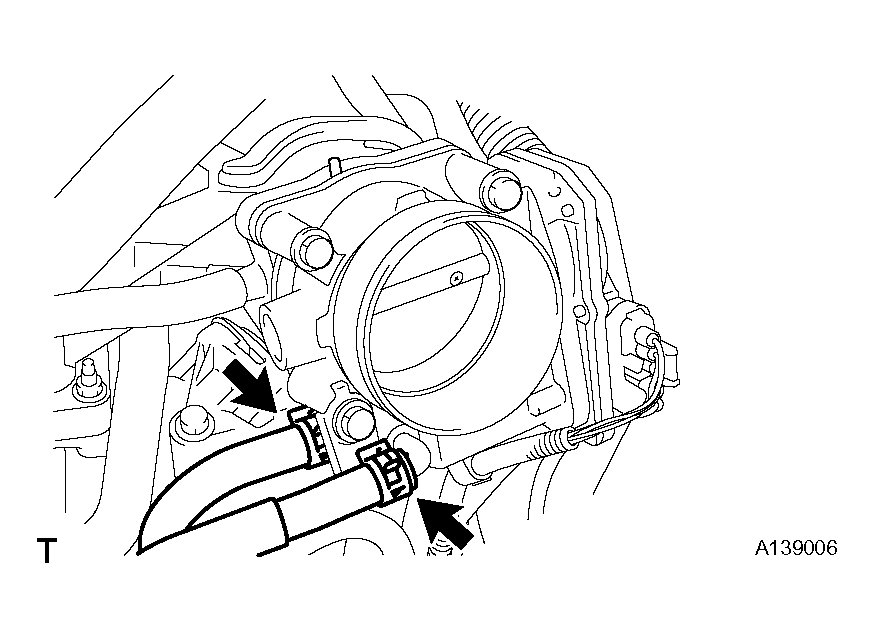

  Fig 3: Connecting Water By-Pass Hoses To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See appropriate step(s) under INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See appropriate step(s) under COOLANT ).
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See appropriate step(s) under INSTALLATION ).
