Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE

    (See PRECAUTION )

  2. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  3. REMOVE FRONT WIPER ARM HEAD CAP (See  REMOVAL  )
  4. REMOVE FRONT WIPER ARM LH (See  REMOVAL  )
  5. REMOVE FRONT WIPER ARM RH (See  REMOVAL  )
  6. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  REMOVAL  )
  7. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY (See  REMOVAL  )
  8. REMOVE NO. 1 COWL TOP TO COWL BRACE INNER (See  REMOVAL  )
  9. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT (See  REMOVAL  )
  10. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  11. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See  REMOVAL   )
  12. REMOVE EMISSION CONTROL VALVE SET (See  REMOVAL  )
  13. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL  )
  14. REMOVE INTAKE MANIFOLD
    1. Disconnect the No. 1 fuel pipe.
      1. Remove the EFI fuel pipe clamp.

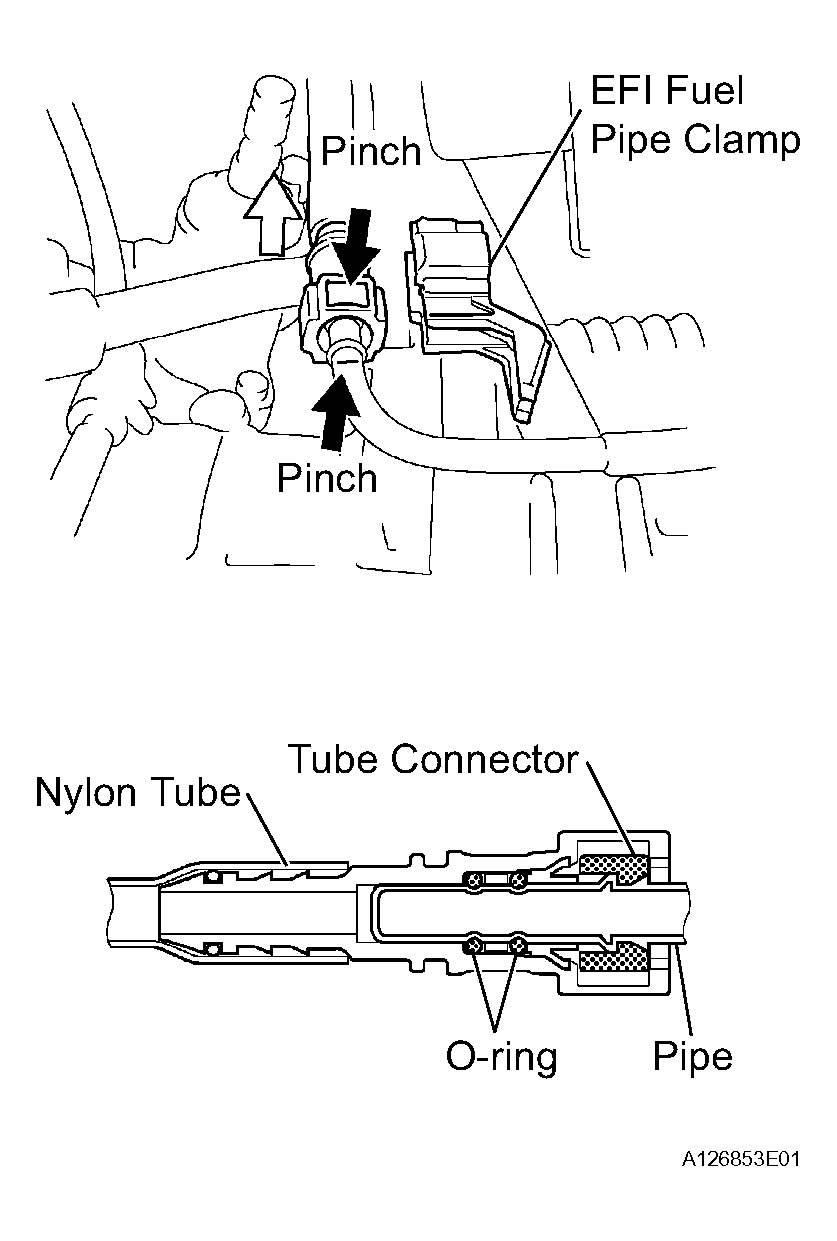

        Fig 1: Removing EFI Fuel Pipe Clamp
        G04493870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pinch the tube connector and then pull out the No. 1 fuel pipe.
        NOTE:
        • Check if there is any dirt or mud around the connector before this operation and remove the dirt as necessary.
        • Be careful of mud because the quick connector has an O-ring which seals the pipe and connector that can be contaminated.
        • Do not use any tool in this operation.
        • Do not bend or twist the nylon tube. Protect the connector by covering it with a vinyl or plastic bag.
        • When the pipe and connector are stuck, push and pull the connector to release and pull the connector out carefully.
    2. Lock the hose clamp as shown in Fig 2 .

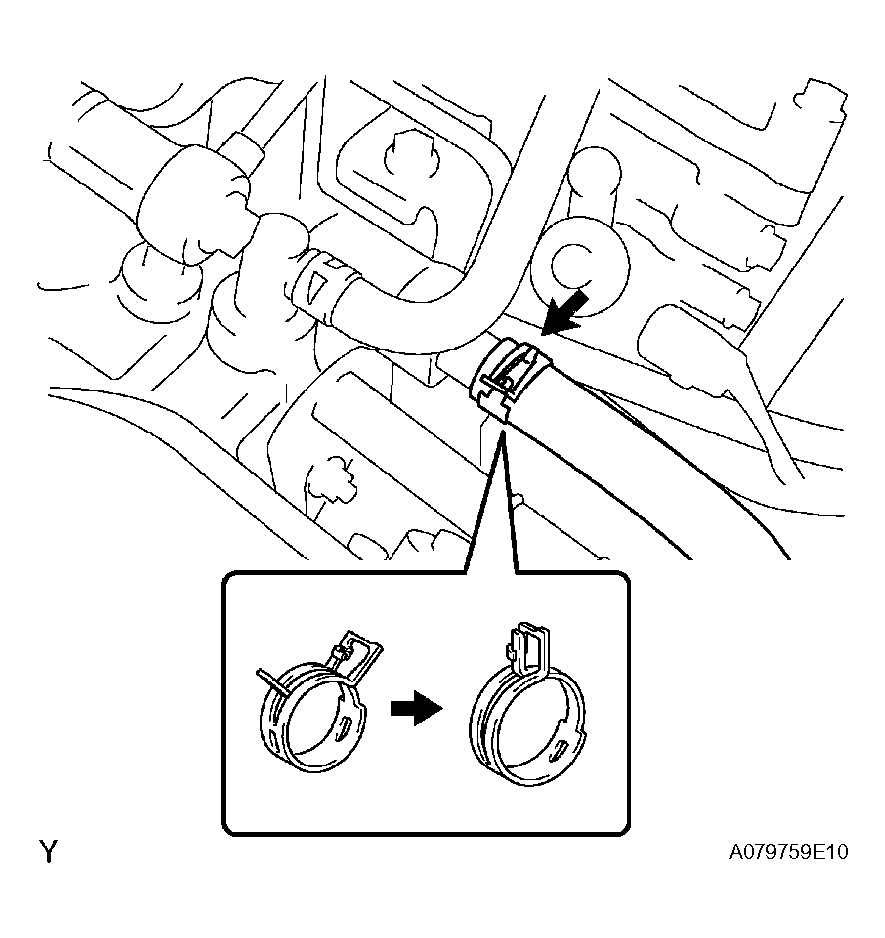

      Fig 2: Locking Hose Clamp
      G04493871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the heater water inlet hose B.
    4. Remove the nut and the ground cable.
    5. Disconnect the 6 fuel injector connectors.
      Fig 3: Disconnecting Fuel Injector Connectors
      G04493872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. In order to remove the intake manifold, using several steps, remove the 9 bolts and the 2 nuts in the sequence shown in Fig 4 .

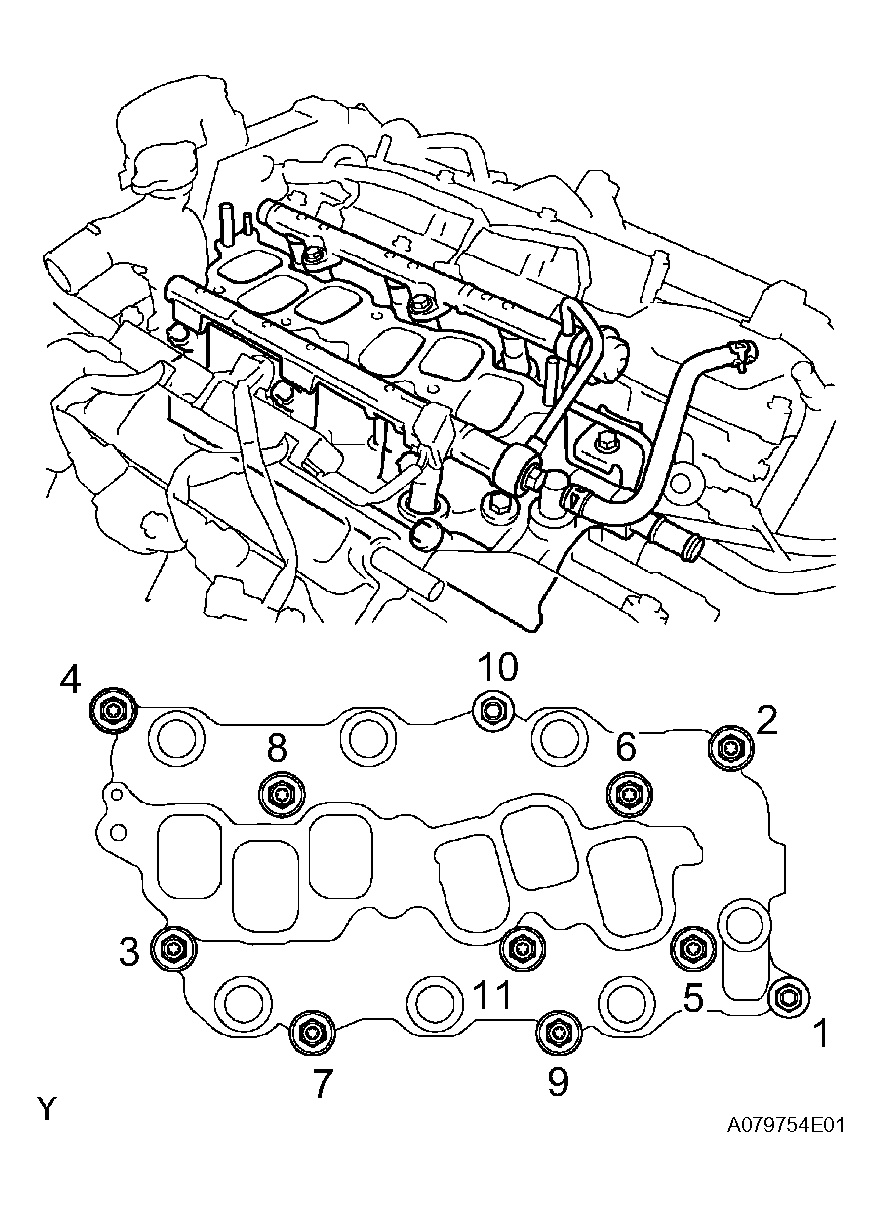

      Fig 4: Removing Intake Manifold In Sequence
      G04493873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE ENGINE MOUNTING STAY RH
    1. Remove the 2 bolts and the engine mounting stay.
  16. REMOVE WATER OUTLET
    1. Disconnect the radiator hose inlet.
    2. Disconnect the radiator reserve tank hose.

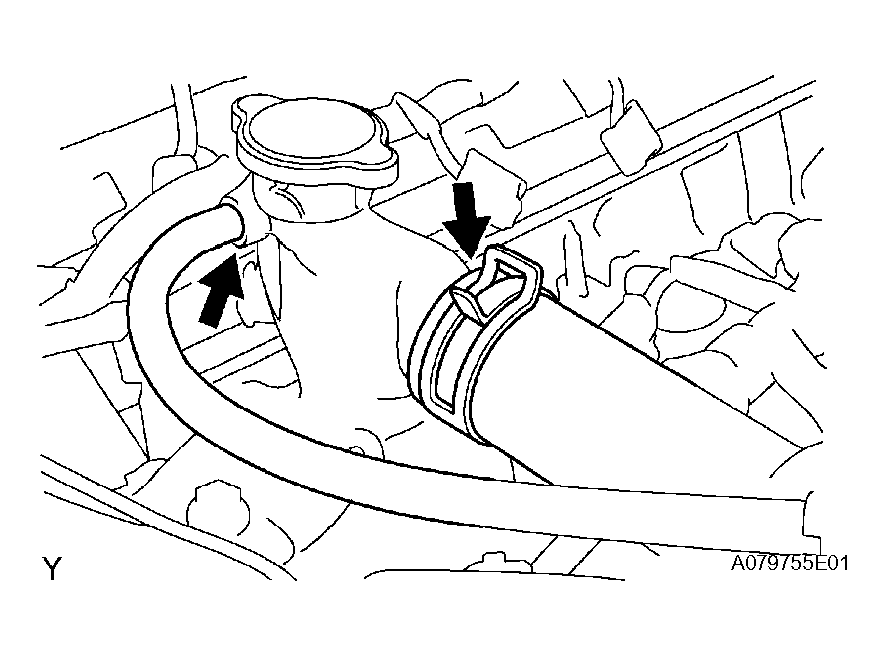

      Fig 5: Disconnecting Radiator Hose Inlet
      G04493874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the engine coolant temperature sensor connector.
    4. Remove the clamp.
    5. Remove the 2 bolts, the 2 nuts and the 2 washers.
    6. Lock the hose clamp as shown in Fig 6 and remove the water outlet together with the No. 1 water by-pass hose.

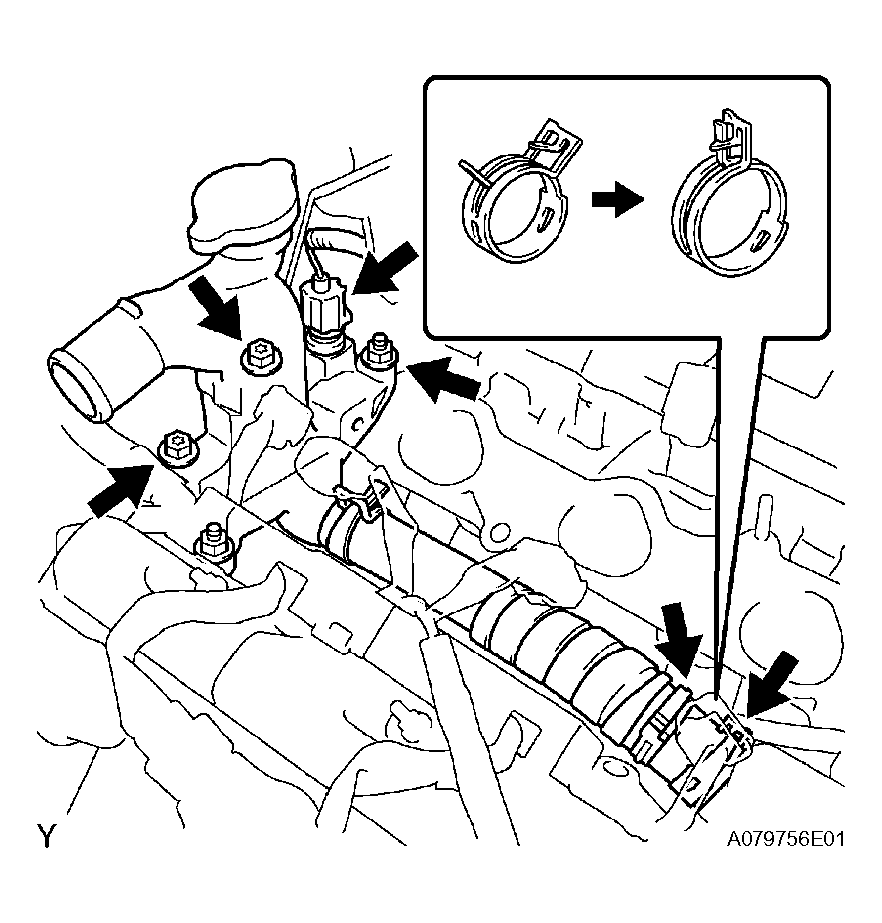

      Fig 6: Locking Hose Clamp
      G04493875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 gaskets from the 2 cylinder heads.
  17. REMOVE KNOCK SENSOR
    1. Disconnect the 2 knock sensor connectors.
    2. Remove the 2 nuts and the 2 knock sensors.

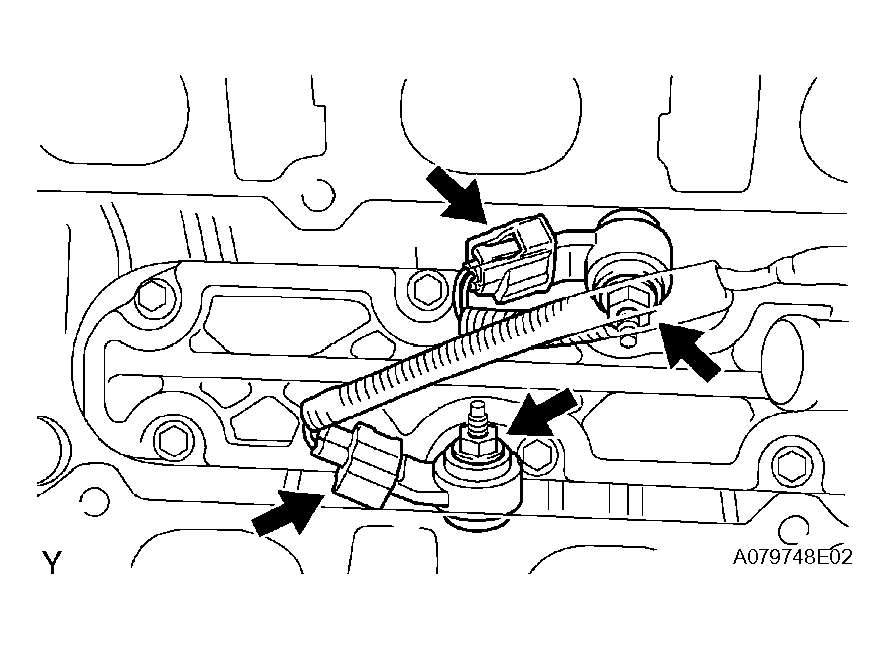

      Fig 7: Removing Knock Sensor
      G04493876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
