Fuel Tank: Components

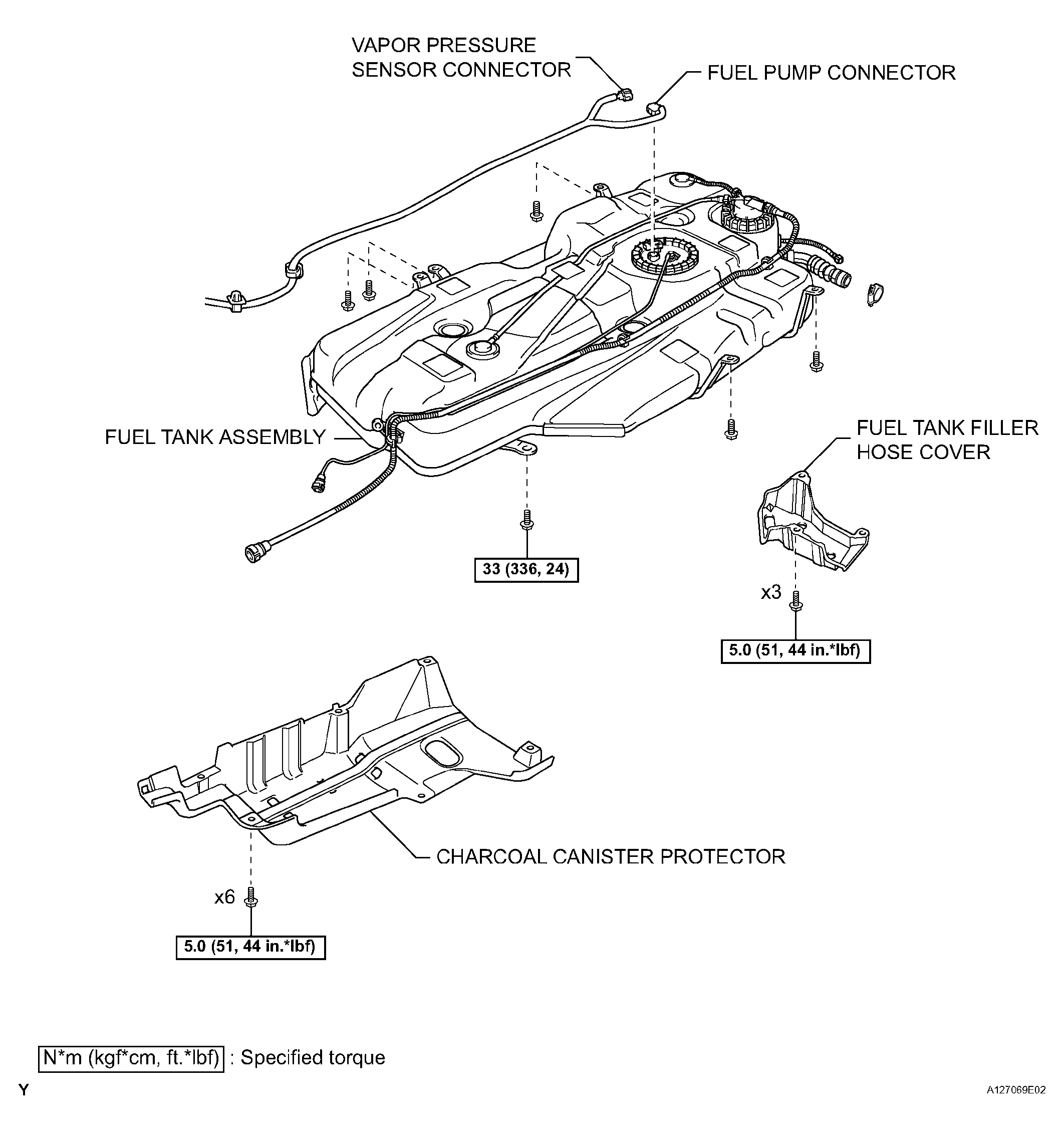

Fig 1: Identifying Fuel Tank Components And Replacements (1 Of 2)
G04494389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

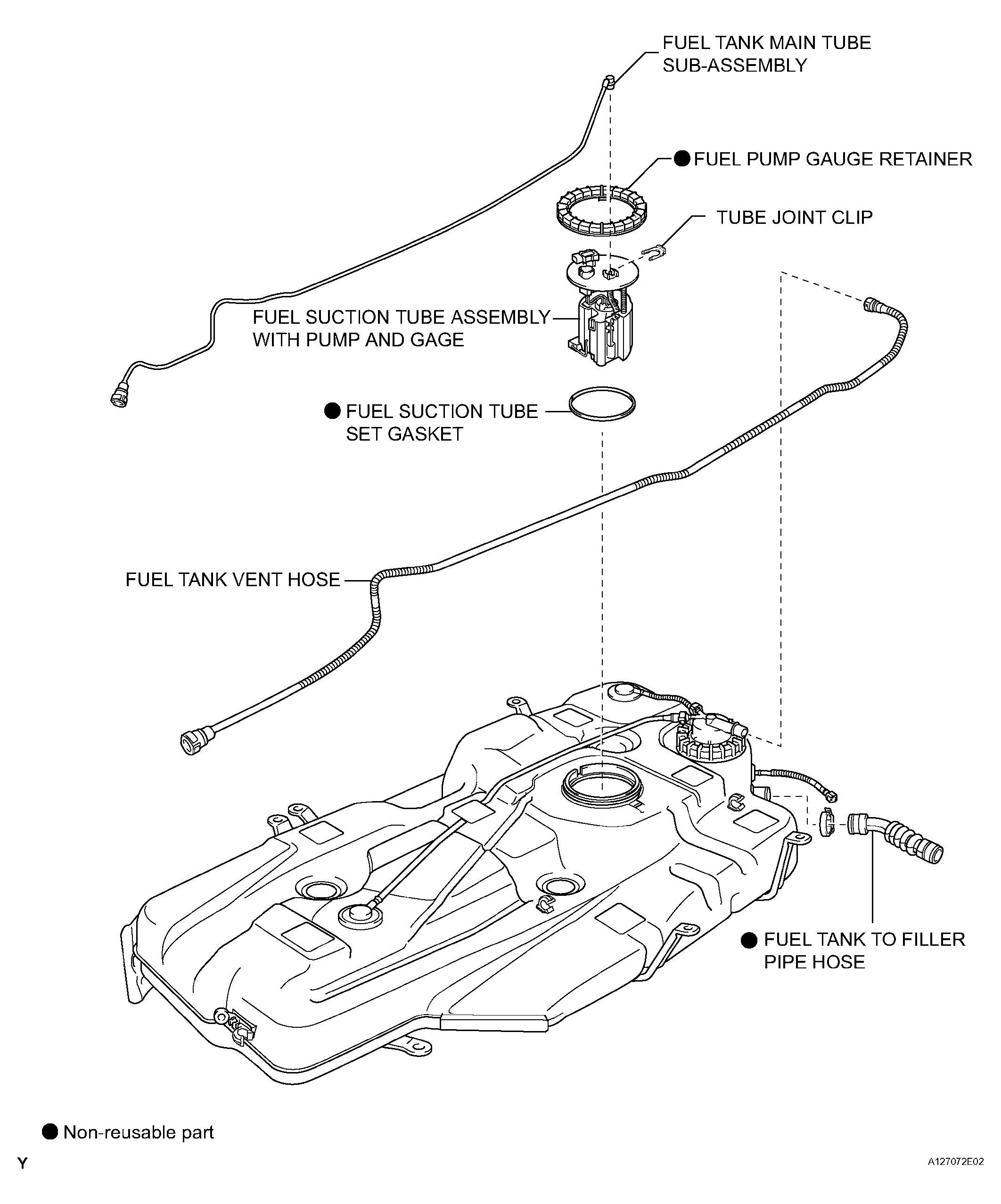

Fig 2: Identifying Fuel Tank Components And Replacements (2 Of 2)
G04494390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
