Crankshaft Position Sensor: Removal

REMOVE FRONT FENDER APRON SEAL RH
1. Using a clip remover, remove the clip.
2. Remove the 2 blots and the front fender apron seal.

  Fig 1: Removing Front Fender Apron Seal RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt and the crankshaft position sensor.

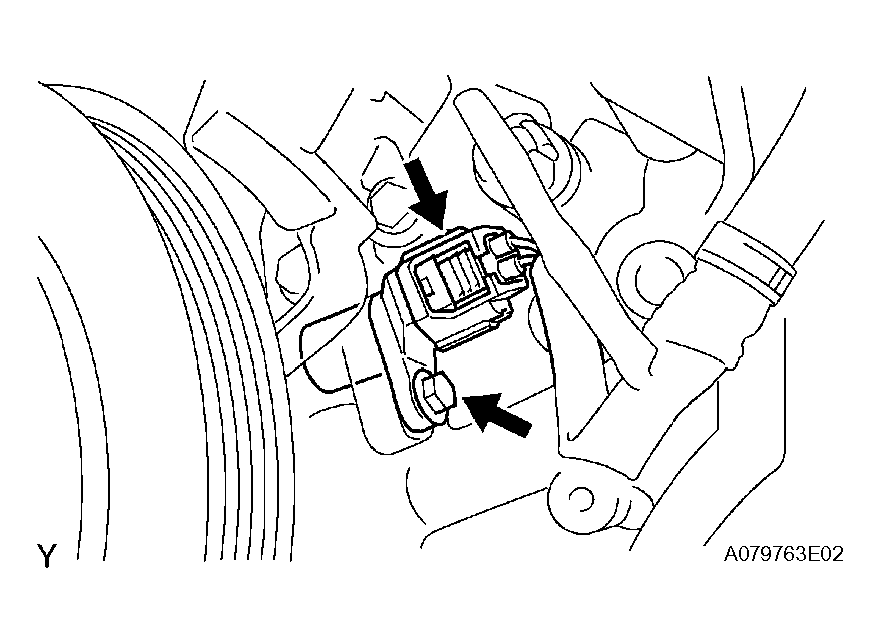

  Fig 2: Removing Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
