Front Lower Ball Joint: Components

Fig 1: Identifying Front Lower Ball Joint Components (1 Of 2)
G04498025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

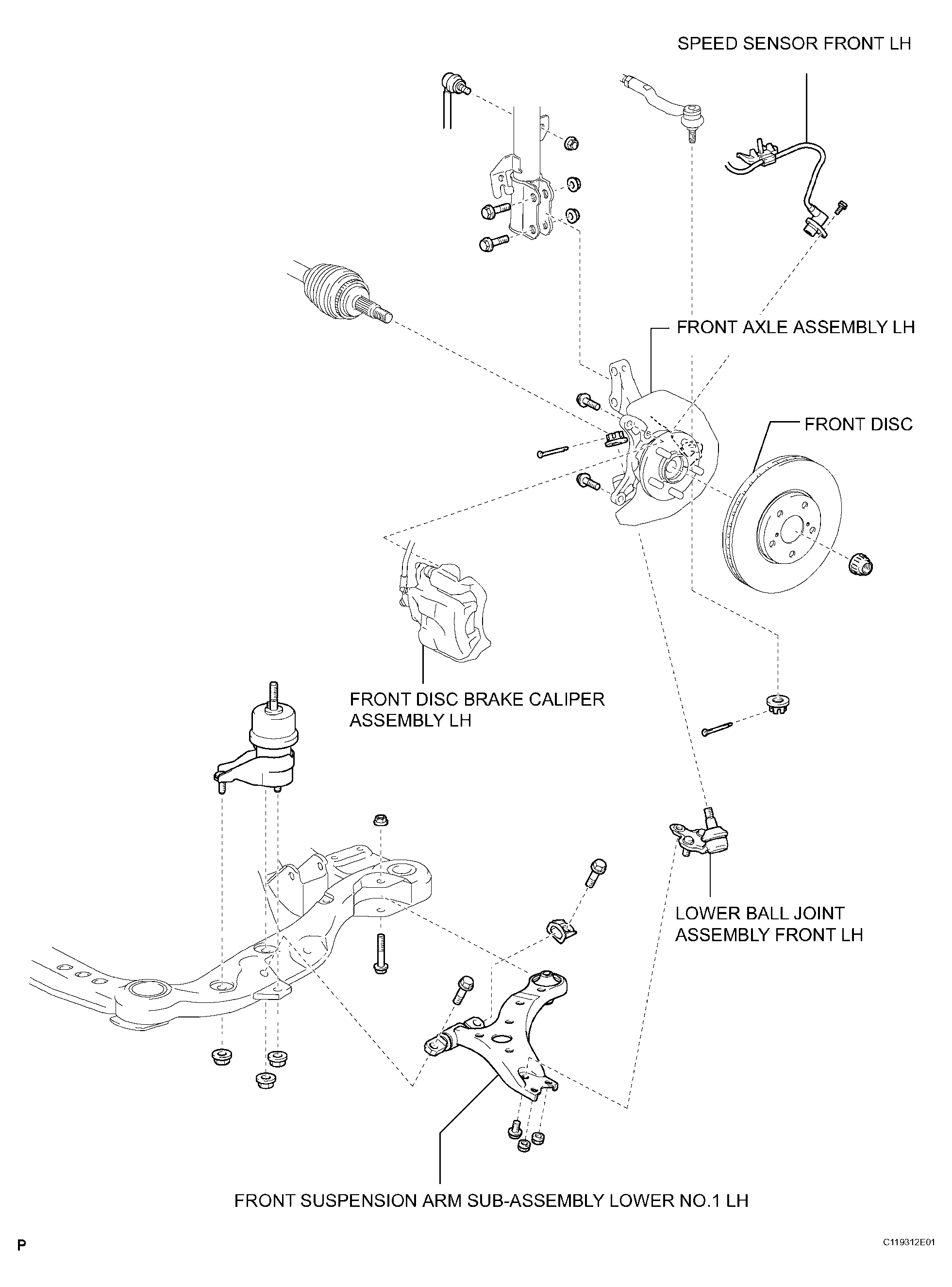

Fig 2: Identifying Front Lower Ball Joint Components (2 Of 2)
G04498026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
