Circuit Opening Relay: Inspection
- INSPECT CIRCUIT OPENING RELAY ASSEMBLY
- Check the resistance.

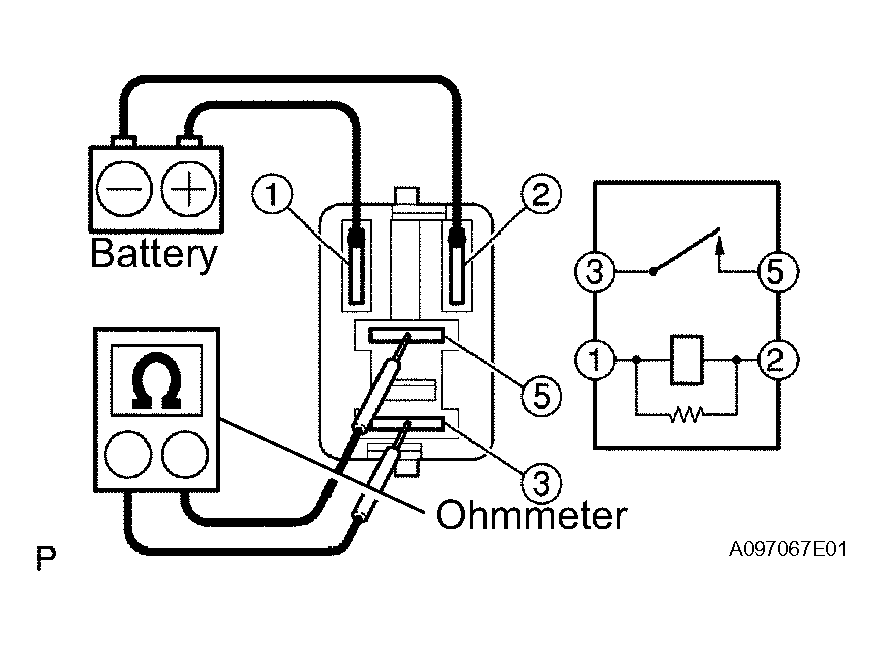

- Using an ohmmeter, measure the resistance between the terminals.
Standard
TESTER CONNECTIONS AND SPECIFIED CONDITION TABLETester Connection Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω
(Apply battery voltage to terminals 1 and 2)Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the circuit opening relay assembly.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the resistance.
