Throttle Body: Components

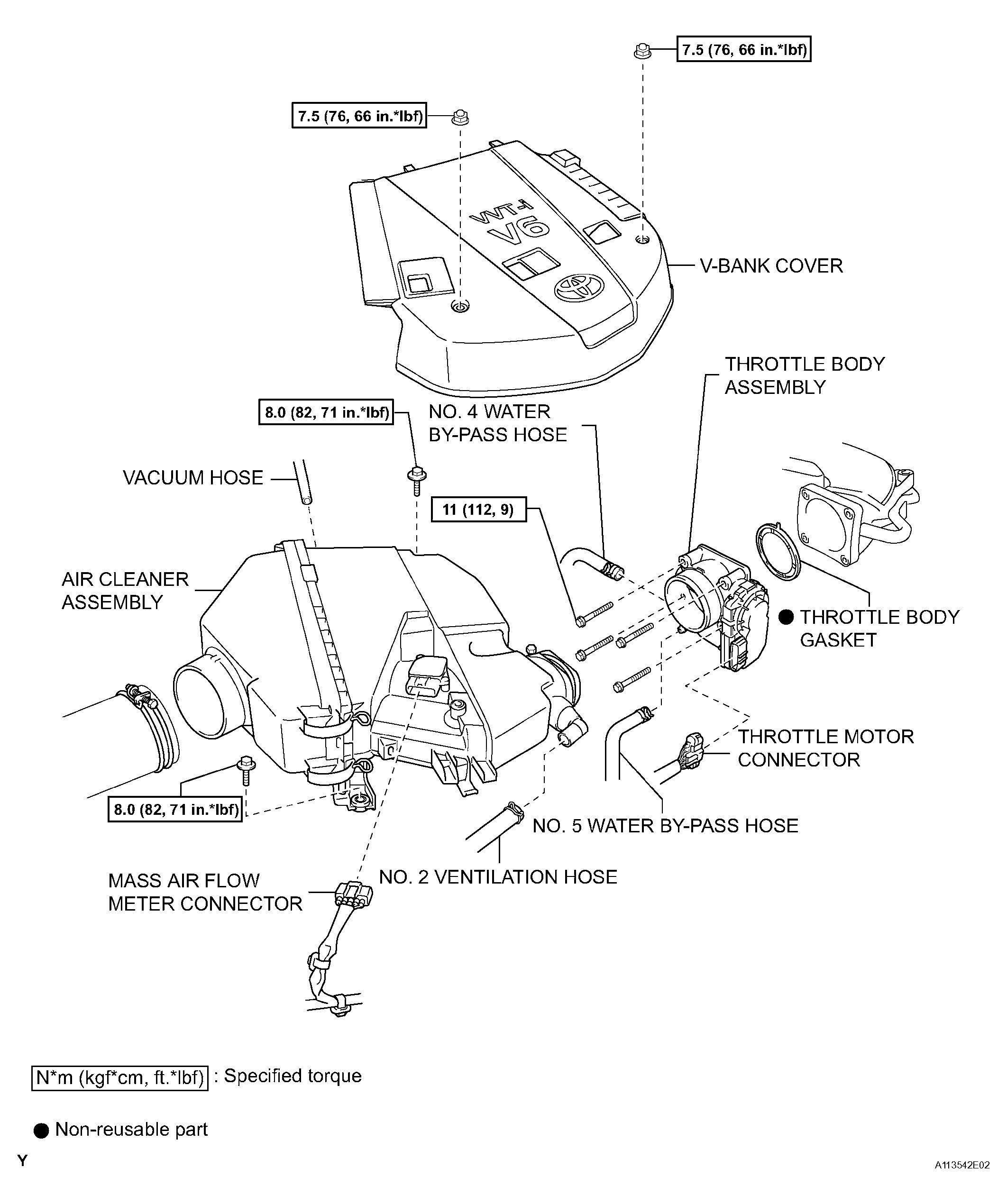

Fig 1: Identifying Throttle Body Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
