Camshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt, then remove the camshaft position sensor.

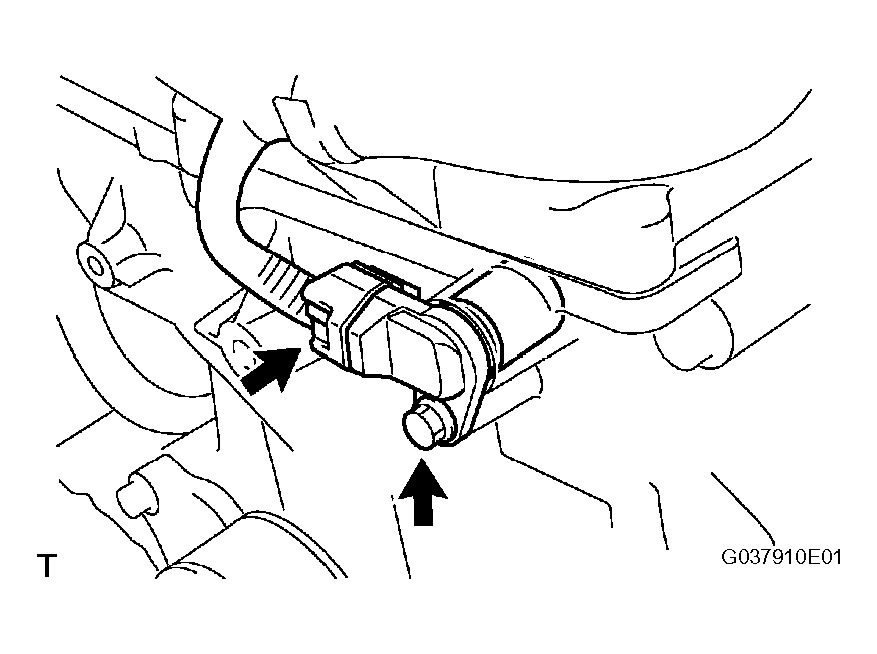

      Fig 1: Removing Camshaft Position Sensor Bolt
      G04407880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
