Accelerator Pedal Position Sensor: Inspection

INSPECT ACCELERATOR PEDAL POSITION SENSOR
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check if the voltage (ACCEL POS) of the CURRENT DATA indicates the standard value.
  Accelerator pedal released: 0.5 to 1.1 V

  Accelerator pedal depressed: 2.6 to 4.5 V
4. Check if the voltage (ACCEL POS #2) of the CURRENT DATA indicates the standard value.
  Accelerator pedal released: 1.2 to 2.0 V

  Accelerator pedal depressed: 3.4 to 5.3 V
If not using a hand-held tester, measure the voltage between terminals (VPA - EPA, VPA2 - EPA2) of the ECM connector (see TERMINALS OF ECM ).
REMOVE ACCELERATOR PEDAL ROD
1. Disconnect the accelerator pedal connector.
2. Remove the 2 nuts and the accelerator pedal assy.
INSTALL ACCELERATOR PEDAL ROD
NOTE:
- Avoid physical shock to the accelerator pedal assy.
- Do not disassemble the accelerator pedal assy.
1. Install the accelerator pedal assy with the 2 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

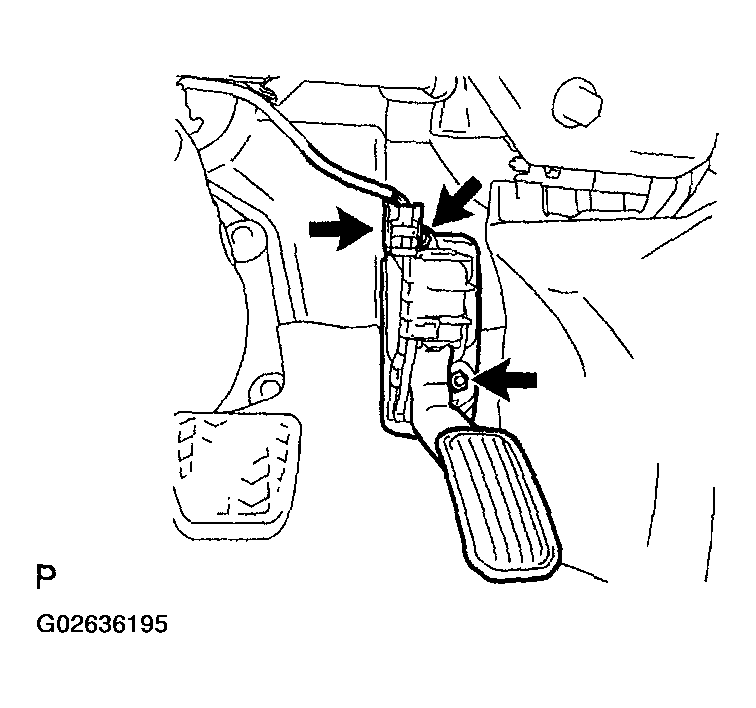

  Fig 1: Installing Accelerator Pedal Assy With 2 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the accelerator pedal connector.
