Fuel Tank And Line: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all parts tightened.

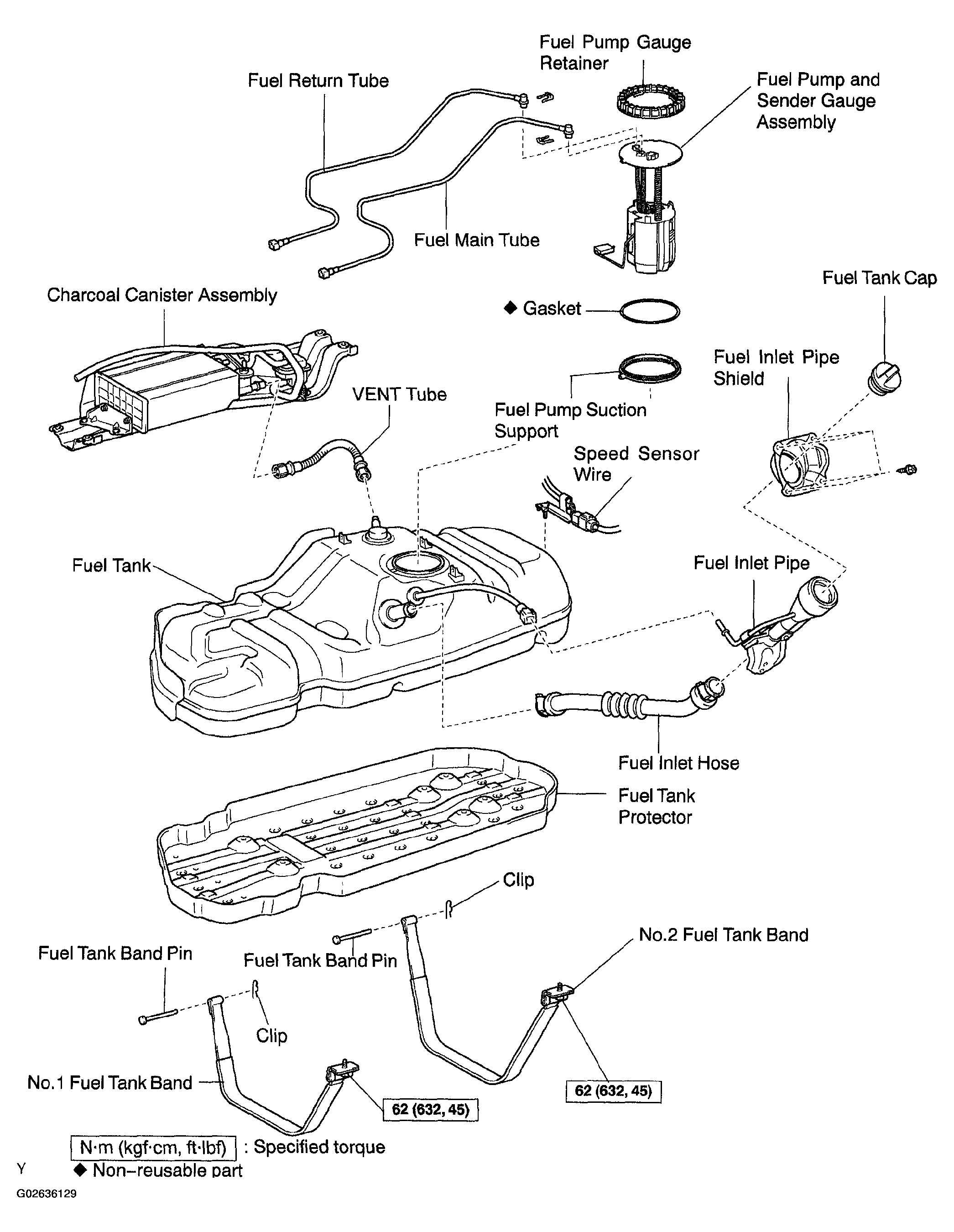

Fig 1: Fuel Tank And Line Replacement Components With Torque Specifications
G02636129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
