SFI System (1GR-FE): Injector: Components

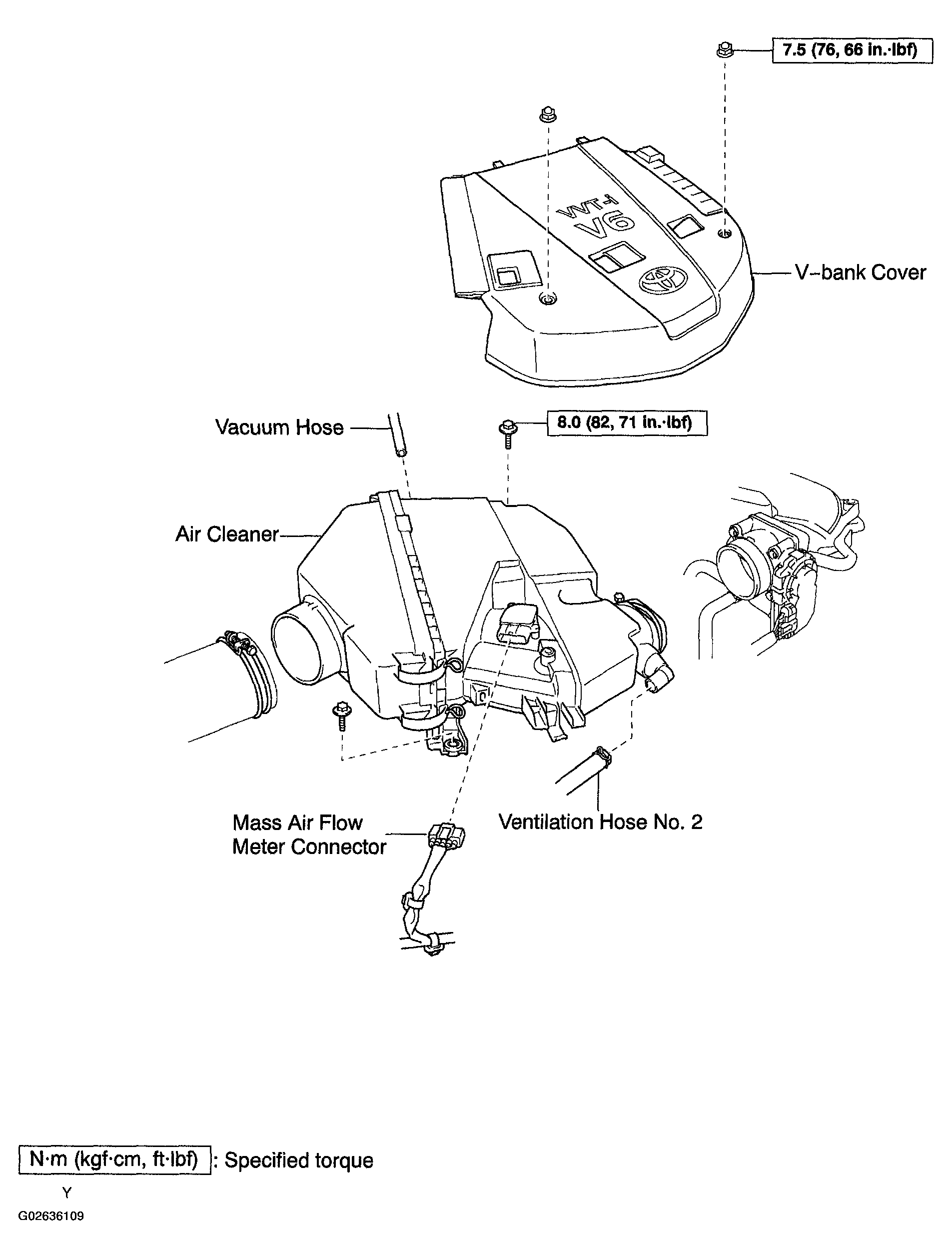

Fig 1: Intake Assembly Replacement Components With Torque Specifications (1 Of 2)
G02636109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

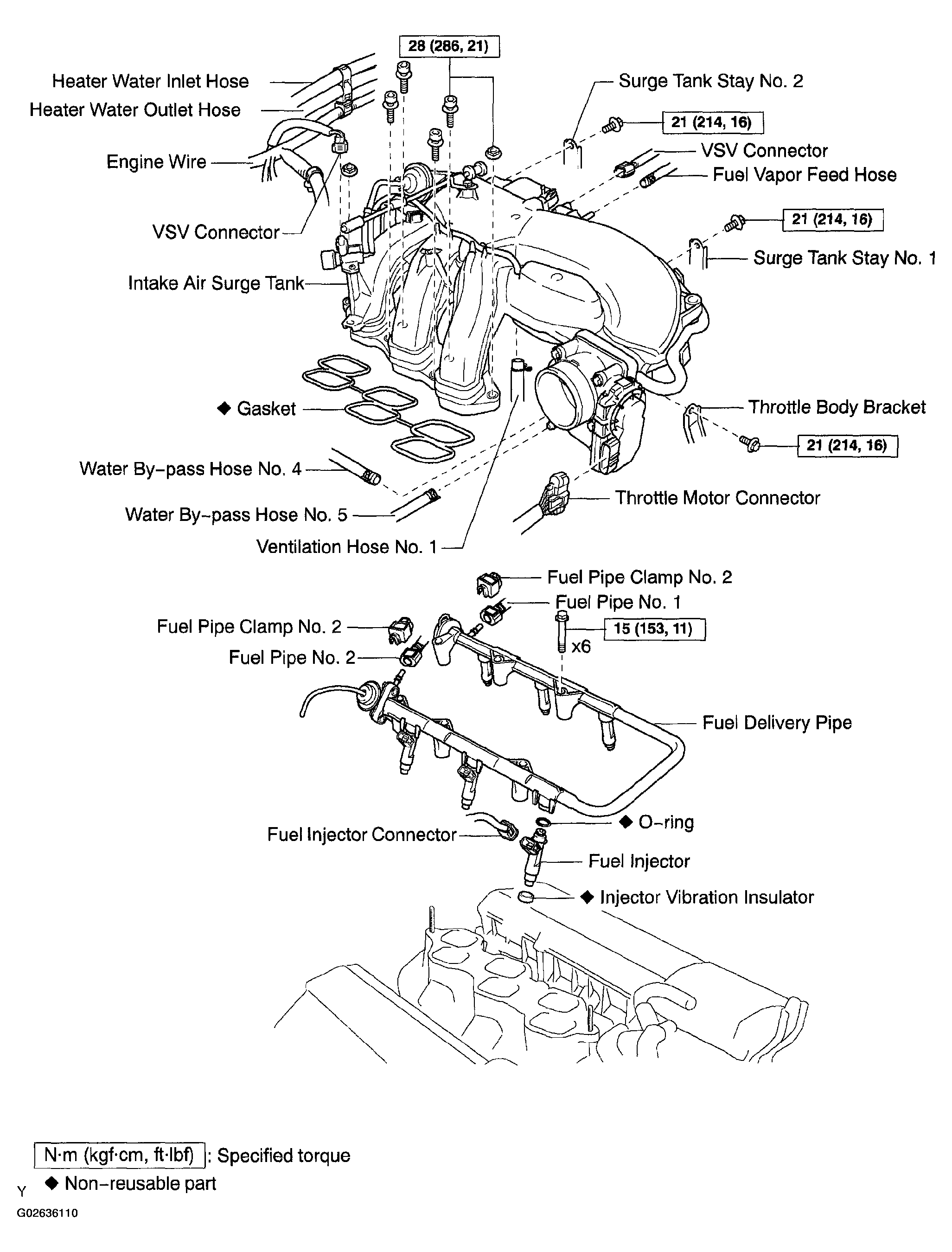

Fig 2: Intake Assembly Replacement Components With Torque Specifications (2 Of 2)
G02636110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
