Throttle Body: Components

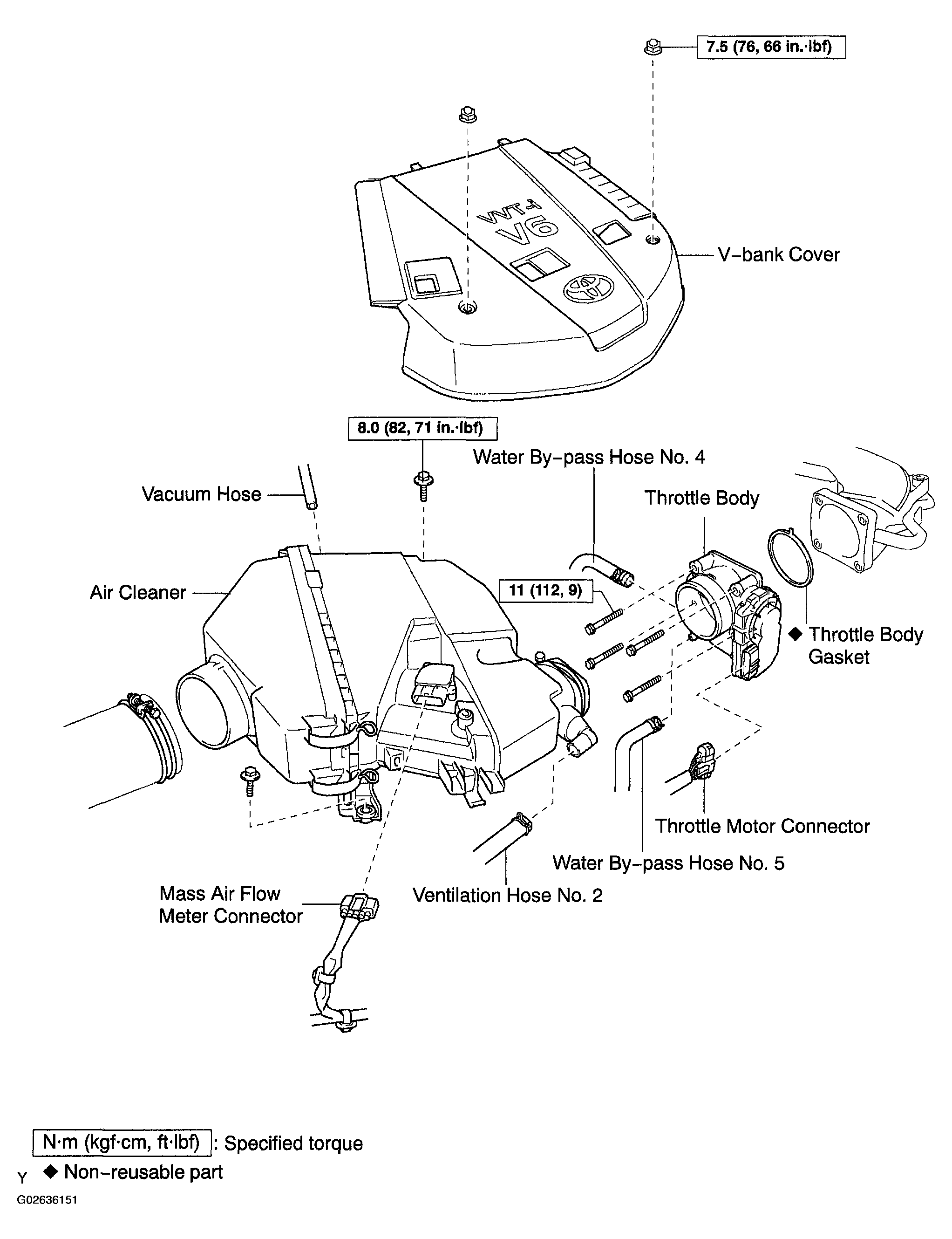

Fig 1: Intake Assembly Replacement Components With Torque Specifications
G02636151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
