Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and certification label.

    1. A: Vehicle Identification Number Plate
    2. B: Certification Label
      Fig 1: Locating Vehicle Identification Number Position
      G02647311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

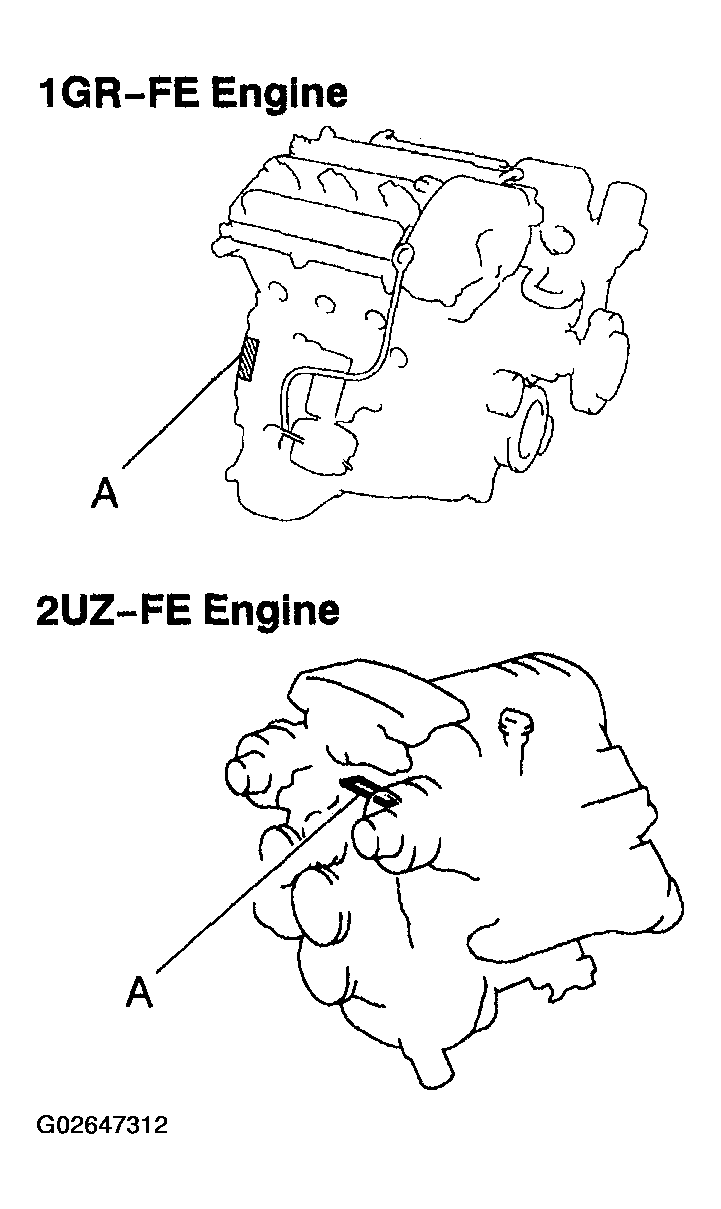

  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in the illustration.

    1. A: Engine Serial Number
      Fig 2: Locating Engine Serial Number Position
      G02647312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
