Home >> Toyota >> 2007 >> 4Runner Limited, 4.7 T, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - A750F >> Transmission Control Cable >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Transmission Control Cable: Components

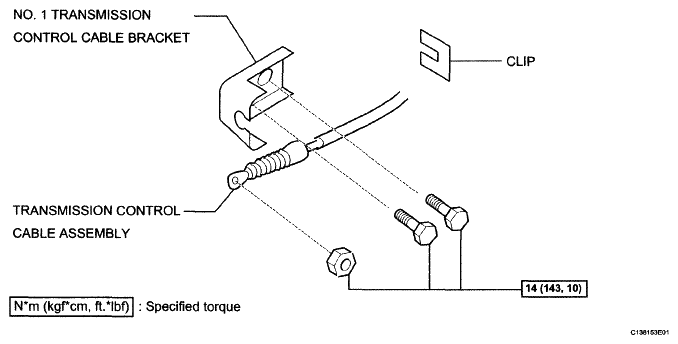

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications
G04963470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
