Valve Body Assembly: Components

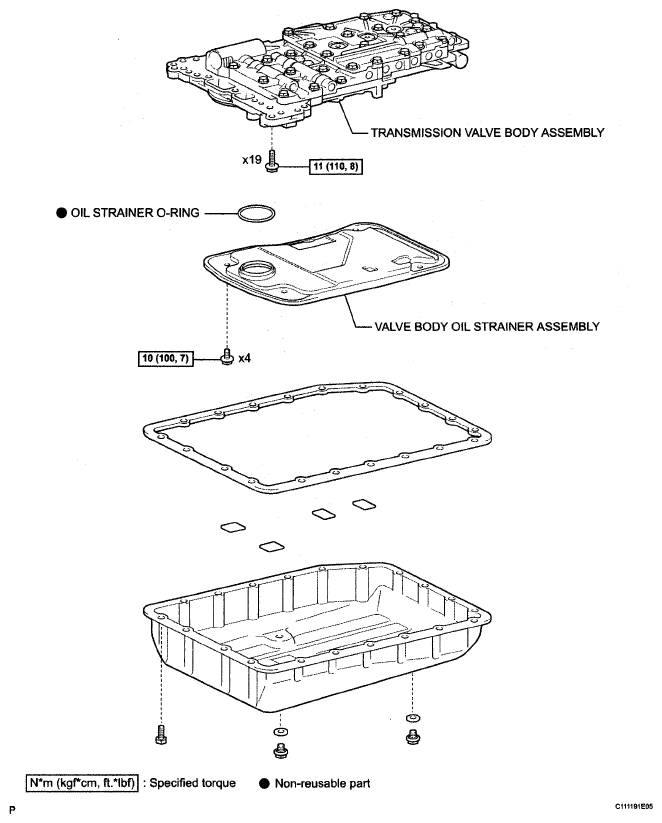

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications
G04963372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
