Knock Sensor, Intake Manifold: Components

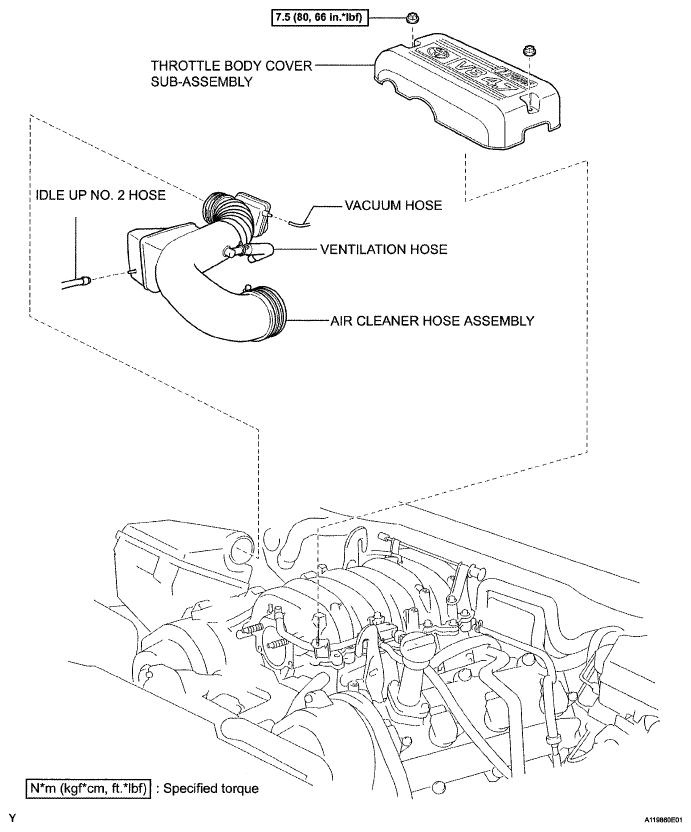

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 3)
G04968228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

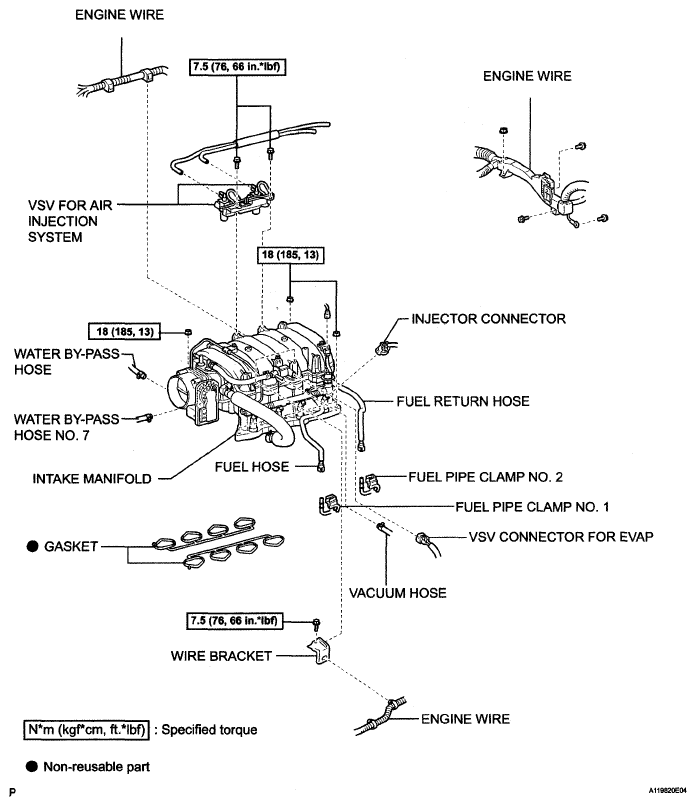

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 3)
G04968229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

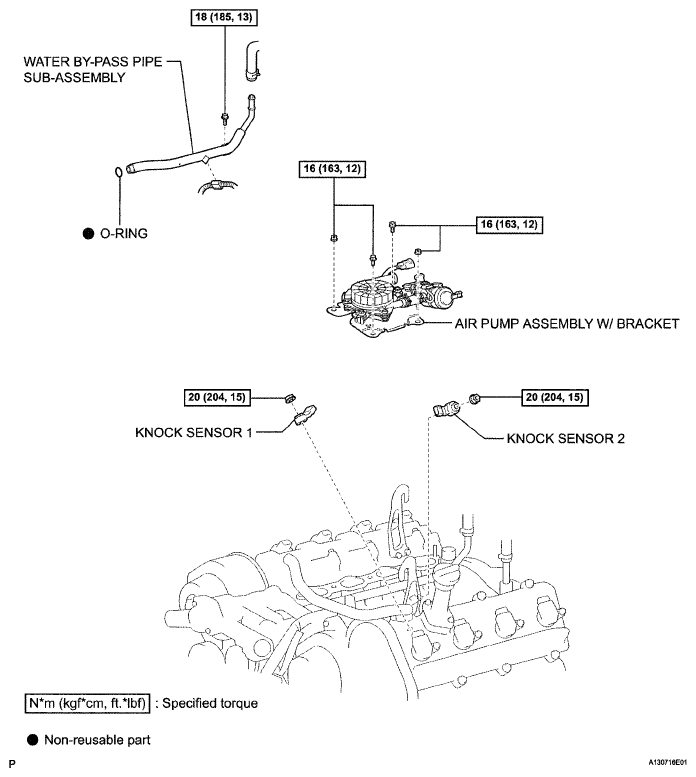

Fig 3: Knock Sensor Replacement Components With Torque Specifications ( 3 Of 3)
G04968230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
