Seat Belt System: Components

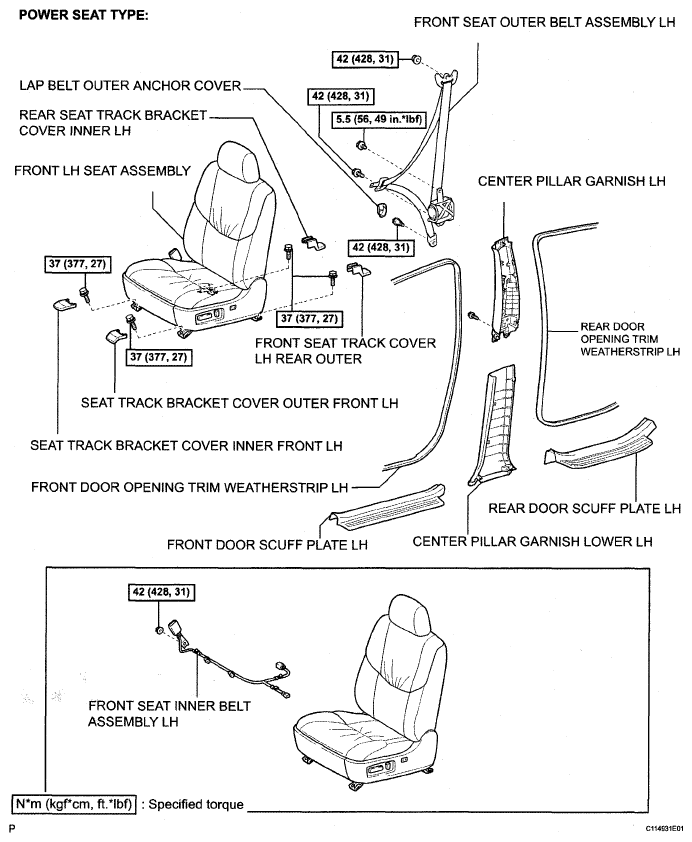

Fig 1: Seat Belt Replacement Components With Torque Specifications (1 Of 4)
G05005350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

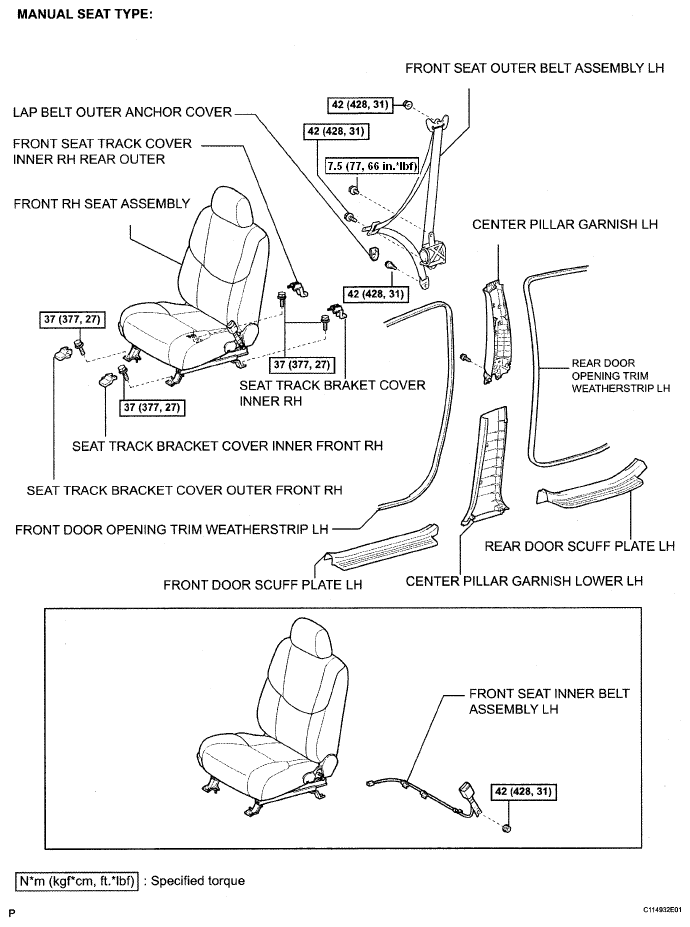

Fig 2: Seat Belt Replacement Components With Torque Specifications (2 Of 4)
G05005351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

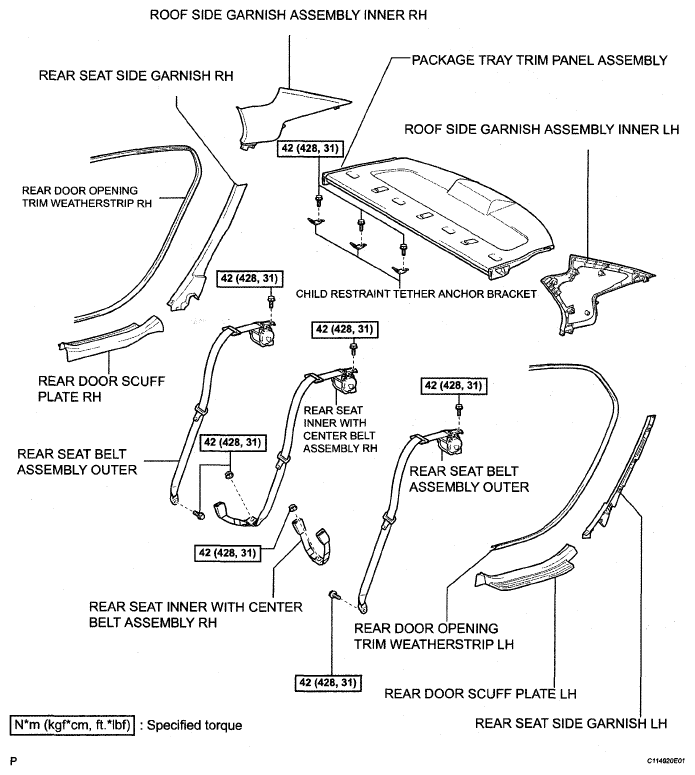

Fig 3: Seat Belt Replacement Components With Torque Specifications (3 Of 4)
G05005352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Seat Belt Replacement Components With Torque Specifications (4 Of 4)
G05005353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
