Oil Pump: Components

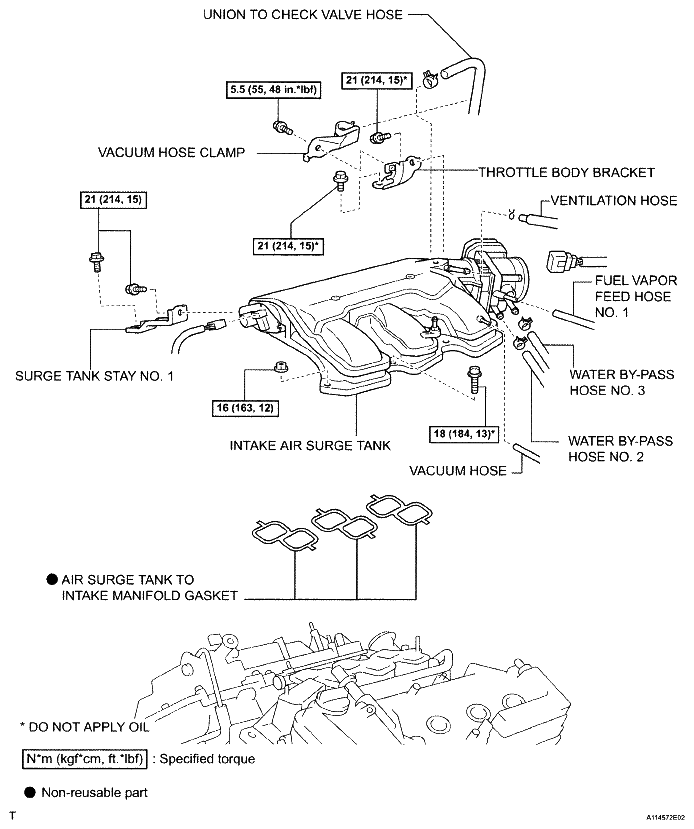

Fig 1: Lubrication System Replacement Components With Torque Specifications (1 Of 5)
G05000276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

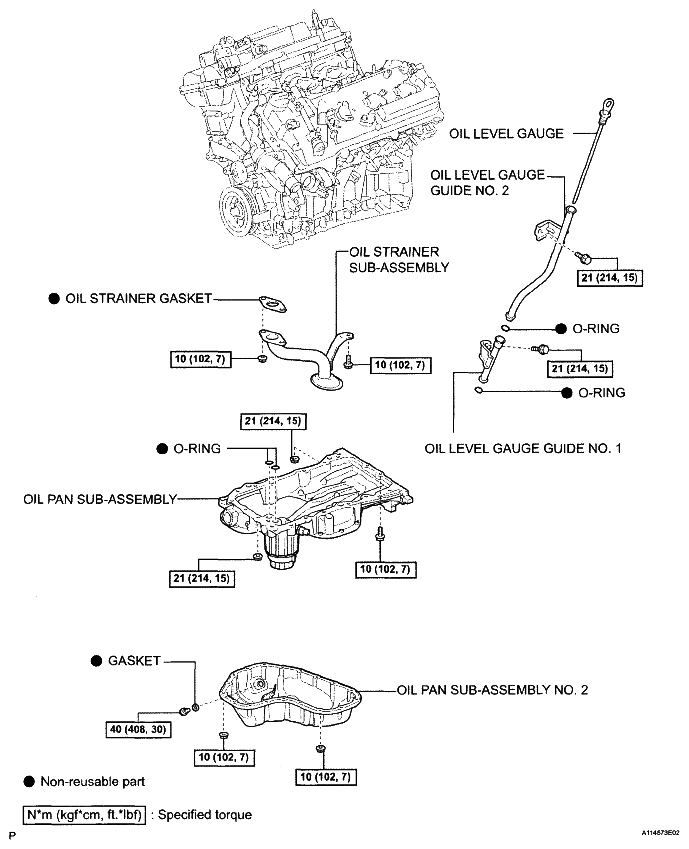

Fig 2: Lubrication System Replacement Components With Torque Specifications (2 Of 5)
G05000277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

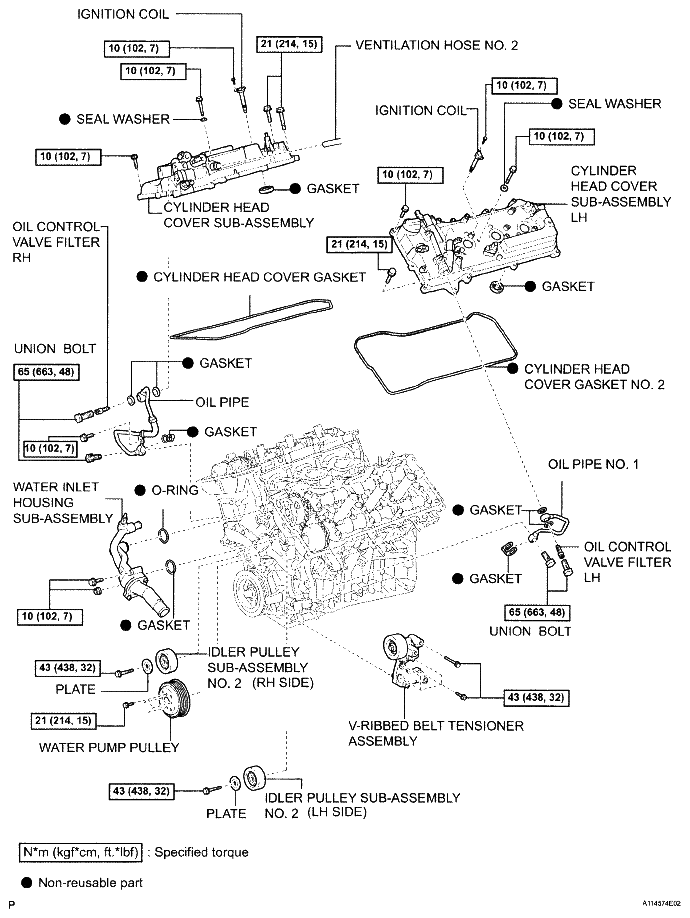

Fig 3: Lubrication System Replacement Components With Torque Specifications (3 Of 5)
G05000278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

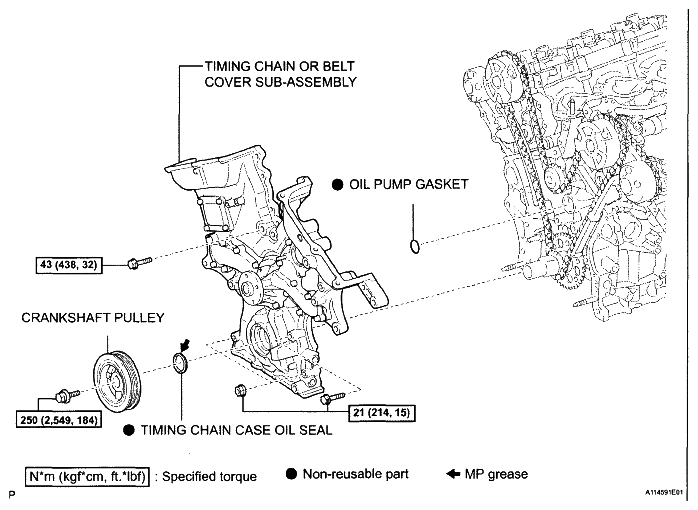

Fig 4: Lubrication System Replacement Components With Torque Specifications (4 Of 5)
G05000279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

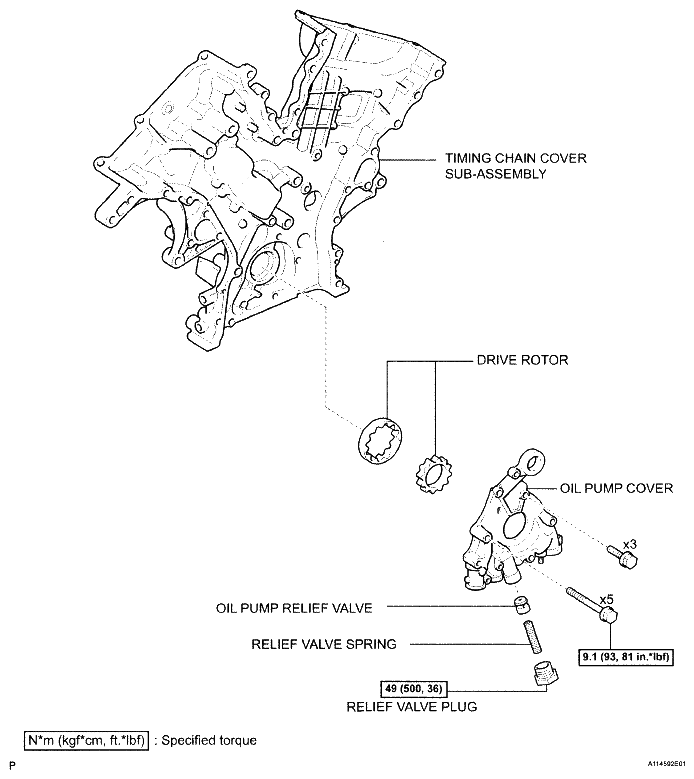

Fig 5: Lubrication System Replacement Components With Torque Specifications (5 Of 5)
G05000280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
