Parts Location

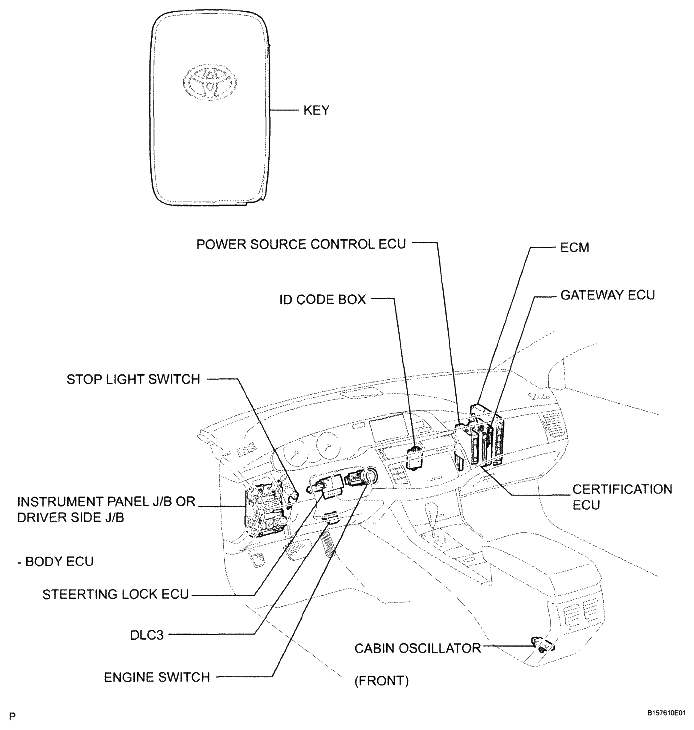

Fig 1: Identifying Entry And Start System Components Location (1 Of 2)
G05000317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

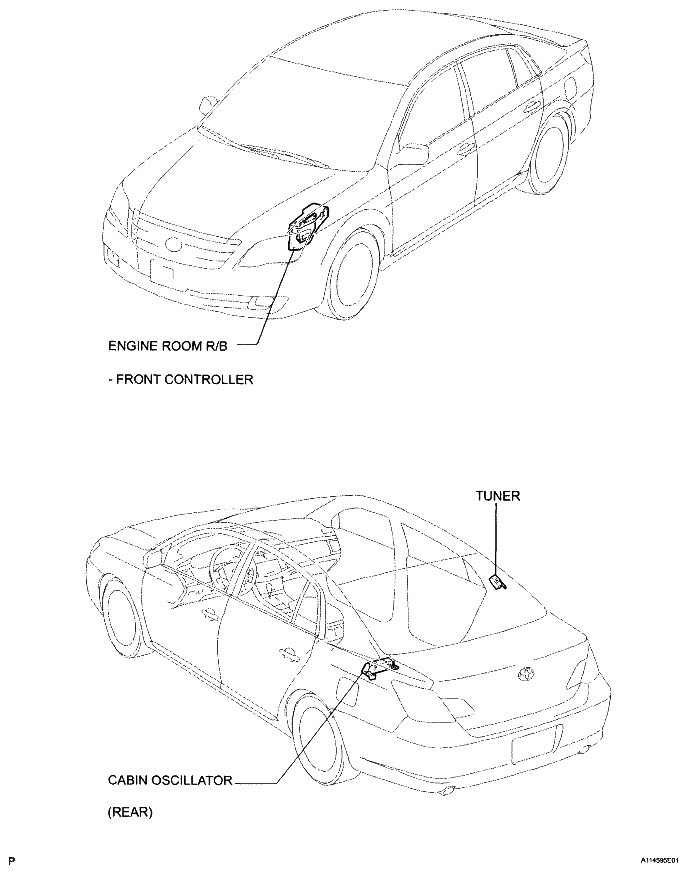

Fig 2: Identifying Entry And Start System Components Location (2 Of 2)
G05000318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
