Audio And Visual System: Precaution

INITIALIZATION

NOTE: When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.

SYSTEM REFERENCE

System Name	See procedure
Power Window Control	INITIALIZATION
Sliding Roof System	INITIALIZATION

EXPRESSIONS OF IGNITION SWITCH
The type of ignition switch used on this model differs according to the specifications of the vehicle.

The expressions listed in the table below are used in this article.

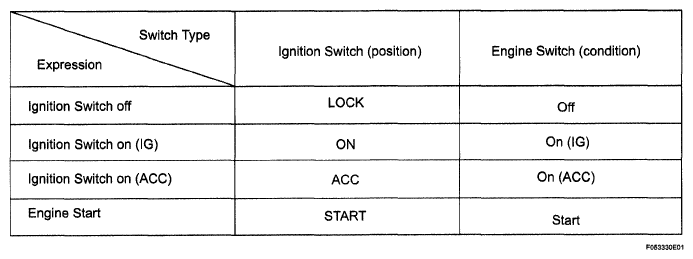

Fig 1: Ignition Switch Expressions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HANDLING AND OPERATIONAL PRECAUTIONS
1. Explain to the customer that when the negative terminal is disconnected from the battery, the AM/ FM channel presets in the radio receiver are cleared. If necessary, make a note of the recorded channel information before the negative terminal is disconnected, then reset the information after the negative terminal is reconnected.
2. The removal / installation of the radio receiver or tape player should be performed after all cassette tapes and audio CDs are ejected from the radio receiver or tape player.
  HINT:

  If a cassette tape, audio CD, or map disc cannot be ejected due to a malfunction in the radio receiver, do not attempt to remove it forcefully. Bring the vehicle to a repair center.
3. Fasten the ground bolt securely when the antenna cord is removed or installed.
  HINT:

  Failure to fasten the ground bolt securely causes noise when receiving radio waves.
4. Do not touch the cone paper of the speaker.
