Inspection Procedure

1. Remove the power window regulator motor.
2. Apply battery voltage to the motor connector according to the table below.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

   Standard

   MEASUREMENT CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 1 (U) Battery negative (-) → Terminal 2 (D)	Motor gear rotates clockwise
   Battery positive (+) → Terminal 2 (D) Battery negative (-) → Terminal 1 (U)	Motor gear rotates counterclockwise

Fig 1: Checking Power Window Regulator Motor Operation (Rear RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR (REAR RH)

OK: Go to Next Step

1. Disconnect the 12 and 14 connectors.
2. Measure the resistance of the wire harness side connectors.

   Resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   I4-1 - I2-3	Always	Below 1 Ω
   I4-2 - I2-1	Always	Below 1 Ω
   14-1 - Body ground	Always	10 kΩ or higher
   I4-2 - Body ground	Always	10 kΩ or higher

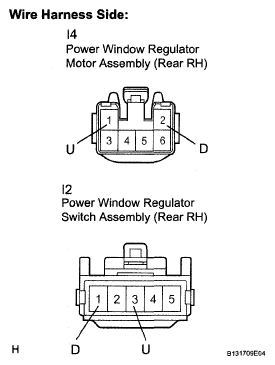

Fig 2: Identifying 12 And 14 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
