Inspection Procedure

1. Remove the multiplex network master switch with connector still connected.
2. Measure the voltage of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Switch Condition	Tester Connection	Specified Condition
   H6-15 (PCT) - Body ground	Window lock switch is OFF Ω ON	0 V Ω 2 V or less
   H6-13 (TX) - Body ground	Ignition switch ON	10 to 14 V

Fig 1: Identifying H6 Multiplex Network Master Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

OK: Go to Next Step

1. Disconnect the H6 and G6 connectors.
2. Measure the resistance of the wire harness side connector.

   Standard resistance

   RESISTANCE SPECIFICATION



   Switch Condition	Tester Connection	Specified Condition
   H6-15 (PCT) - G6-11 (PCT)	Always	Below 1 Ω
   H6-15 (PCT) - Body ground	Always	10 kΩ or higher
   H6-13 (TX) - G6-2 (RX)	Always	Below 1 Ω
   H6-13 (TX) - Body ground	Always	10 kΩ or higher

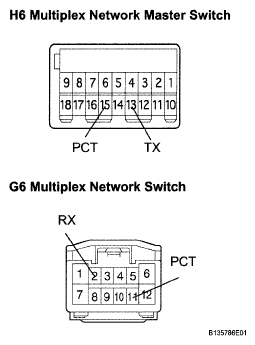

Fig 2: Identifying H6 And G6 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
