Windshield Glass: Installation

  1. INSTALL WINDSHIELD GLASS STOPPER NO.2
    1. Coat the installation part of the stopper with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much Primer G.
      Fig 1: Identifying Stoppers Onto Glass
      G05006593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 new stoppers onto the glass as shown in the illustration.

      Specification

      MEASUREMENT AREA

      Area Measurement
      A 7.7 mm (0.303 in.)
      B 40.0 mm (1.575 in.)
  2. INSTALL WINDSHIELD GLASS STOPPER NO.1
    1. Install 2 new stoppers to the vehicle body as shown in the illustration.
    Fig 2: Identifying Stoppers To Vehicle Body
    G05006594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WINDSHIELD GLASS RETAINER
    1. Install 2 new retainers onto the glass as shown in the illustration.
    Fig 3: Identifying Windshield Glass Retainer
    G05006595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Coat the installation part of the windshield glass adhesive dam with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much primer.
    2. Install a new dam as shown in the illustration.

      Specification

      MEASUREMENT AREA

      Area Measurement
      a 7.0 mm (0.276 in.)
      b 48.4 mm (1.905 in.)

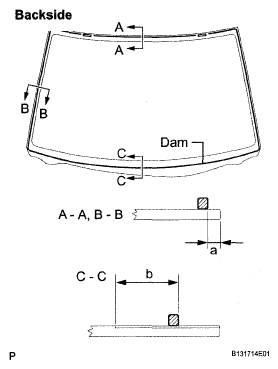

    Fig 4: Identifying Window Glass Adhesive Dam
    G05006596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL WINDSHIELD GLASS
    1. Position the glass.
      1. Using the suction cup, place the glass in the correct position.
      2. Check that the whole contact surface of the glass rim is perfectly even.
      3. Place reference marks on the glass and vehicle body.
        NOTE: Check that the stoppers are attached to the vehicle body correctly.

        HINT:

        When reusing the glass, check and correct the reference mark positions.

        Fig 5: Identifying Windshield Glass Installation Position
        G05006597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Using a suction cup, remove the glass.
    2. Using a brush, coat the exposed areas of the vehicle body, where all adhesive has been removed with Primer M.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer M.
      • Do not apply too much Primer M.
    3. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer M.

      HINT:

      If a non-specified area is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of away any excess Primer M.
      • Do not apply too much Primer M.

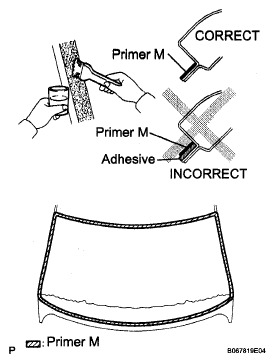

      Fig 6: Identifying Correct Way Of Primer Coating
      G05006598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply adhesive.

      Adhesive:

      Part No. 00850-00801 or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use adhesive within the time described in the table below.

        Usage time frame

        TEMPERATURE SPECIFICATION

        Temperature Usage time frame
        35°C(95°F) 15 minutes
        20°C(68°F) 1 hour 40 minutes
        5°C(41°F) 8 hour
      2. Load a sealer gun with the cartridge.
      3. Coat the glass with adhesive as shown in the illustration.

      Specification

      MEASUREMENT AREA

      Area Measurement
      a 8.0 mm (0.315 In.)
      b 12.0 mm (0.472 In.)

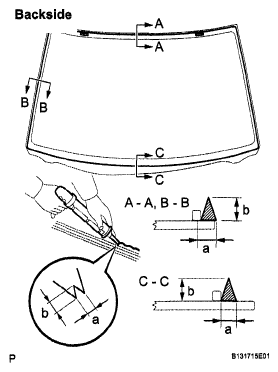

      Fig 7: Applying Adhesive On Glass
      G05006599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the glass.
      1. Using a suction cup, position the glass so that the reference marks are aligned. Press it in gently along the rim.
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that there is a small gap between the vehicle body and glass.
        Fig 8: Identifying Windshield Glass Installation Position
        G05006600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.
      3. Using a scraper, remove any excess or protruding adhesive (See Procedure a).

        HINT:

        Make sure that adhesive is applied up to the glass rim.

        NOTE: The vehicle should not be driven until the time indicated in the table below has elapsed after procedure A.
        Fig 9: Applying Protruding Adhesive
        G05006601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Minimum time

      TEMPERATURE SPECIFICATION

      Temperature Minimum time prior to driving vehicle
      35°C(95°F) 1 hour 30 minutes
      20°C(68°F) 5 hours
      5°C(41°F) 24 hours
  6. INSTALL WINDSHIELD MOLDING OUTER UPPER
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of away any excess Primer G.
      • Do not apply too much Primer G.
    2. Install the molding.
  7. INSPECT FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with out glass sealer.
  8. INSTALL ROOF HEADLINING ASSEMBLY
  9. INSTALL SUN ROOF OPENING TRIM MOLDING
  10. INSTALL RAIN SENSOR
  11. INSTALL RAIN SENSOR COVER
  12. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
  13. INSTALL VISOR HOLDER
  14. INSTALL ROOF CONSOLE BOX ASSEMBLY
  15. INSTALL RH VISOR ASSEMBLY
  16. INSTALL LH VISOR ASSEMBLY
  17. INSTALL VISOR BRACKET COVER
  18. INSTALL ASSIST GRIP SUB-ASSEMBLY
  19. INSTALL ASSIST GRIP SUB-ASSEMBLY FRONT
  20. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  21. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  22. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  23. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  24. INSTALL COWL TOP VENTILATOR LOUVER RH
  25. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
  26. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
