Wiper and Washer: Notes

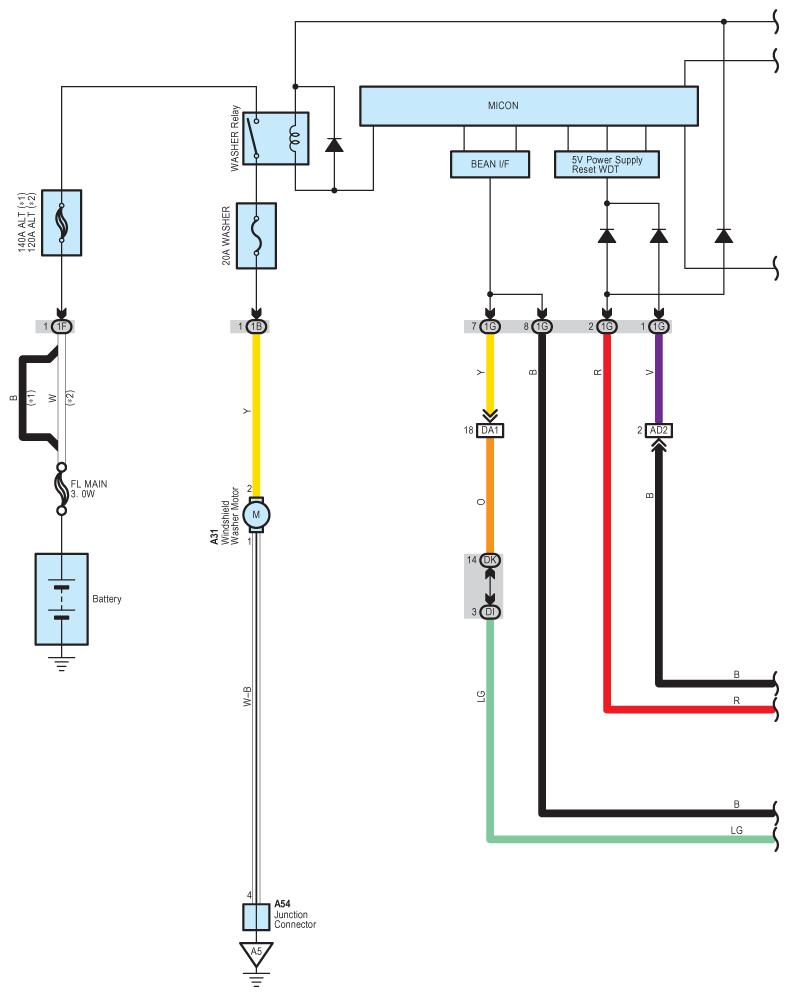

Fig 1: Wiper And Washer System Wiring Diagram (1 Of 5)
G08780770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

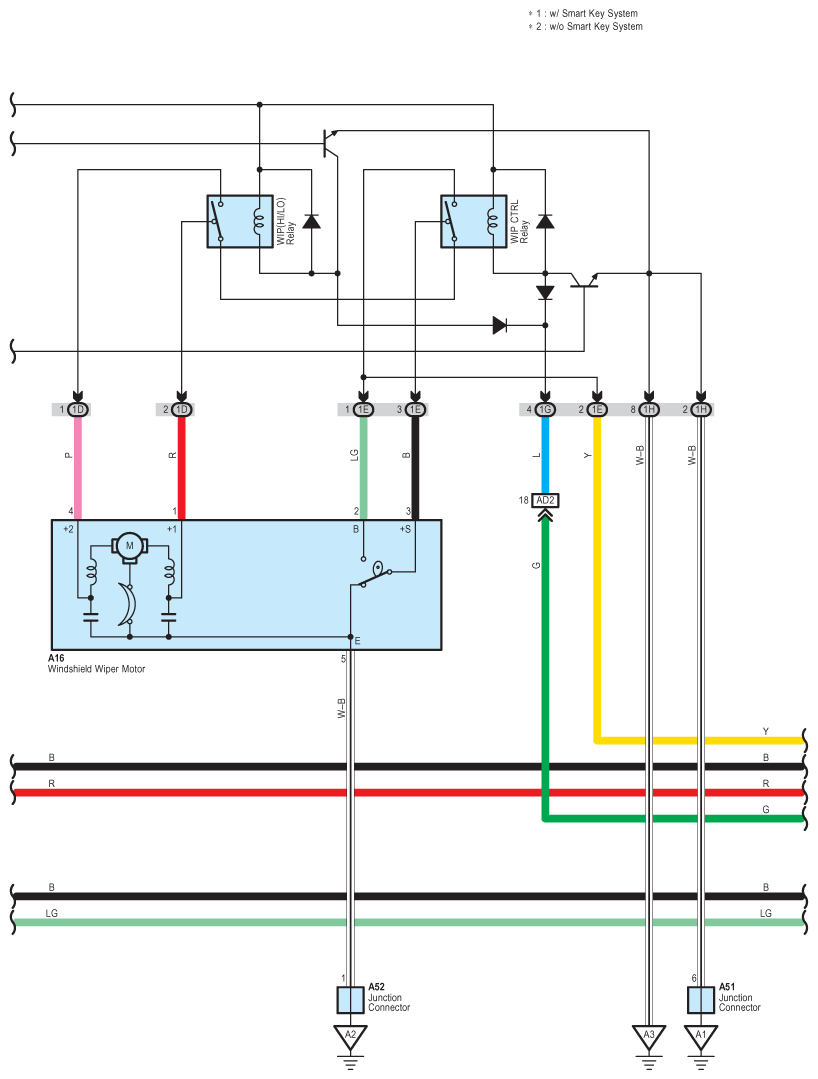

Fig 2: Wiper And Washer System Wiring Diagram (2 Of 5)
G08780771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

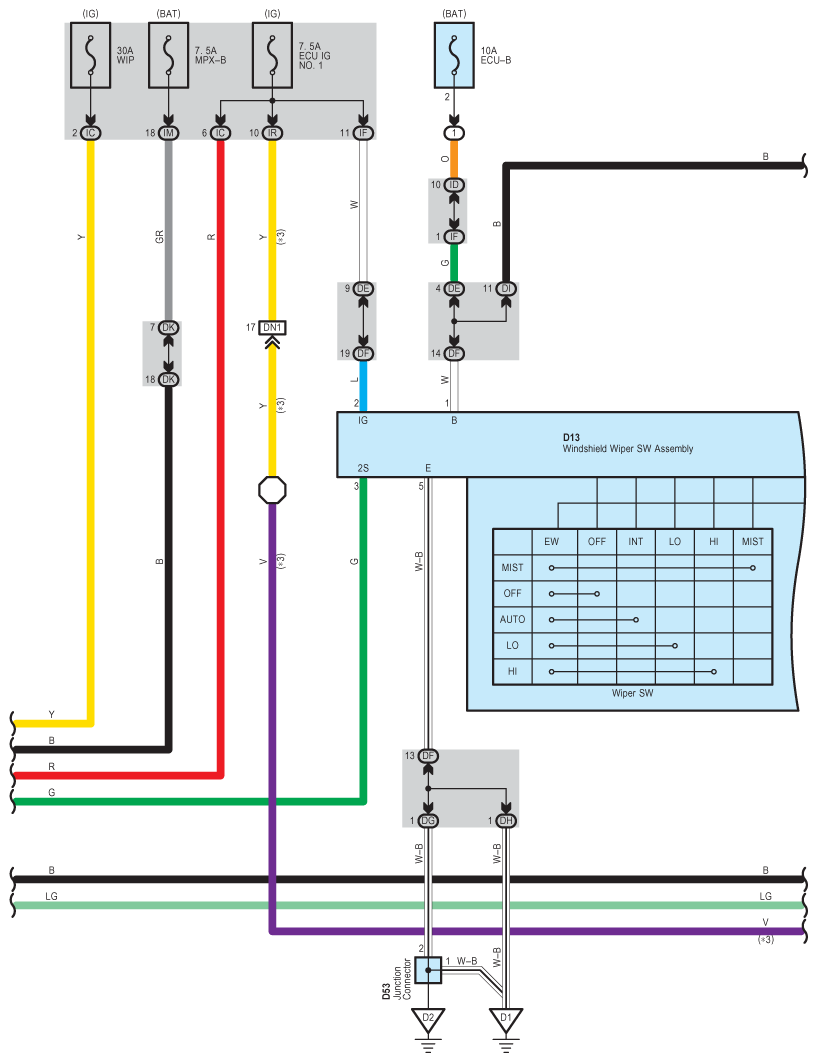

Fig 3: Wiper And Washer System Wiring Diagram (3 Of 5)
G08780772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

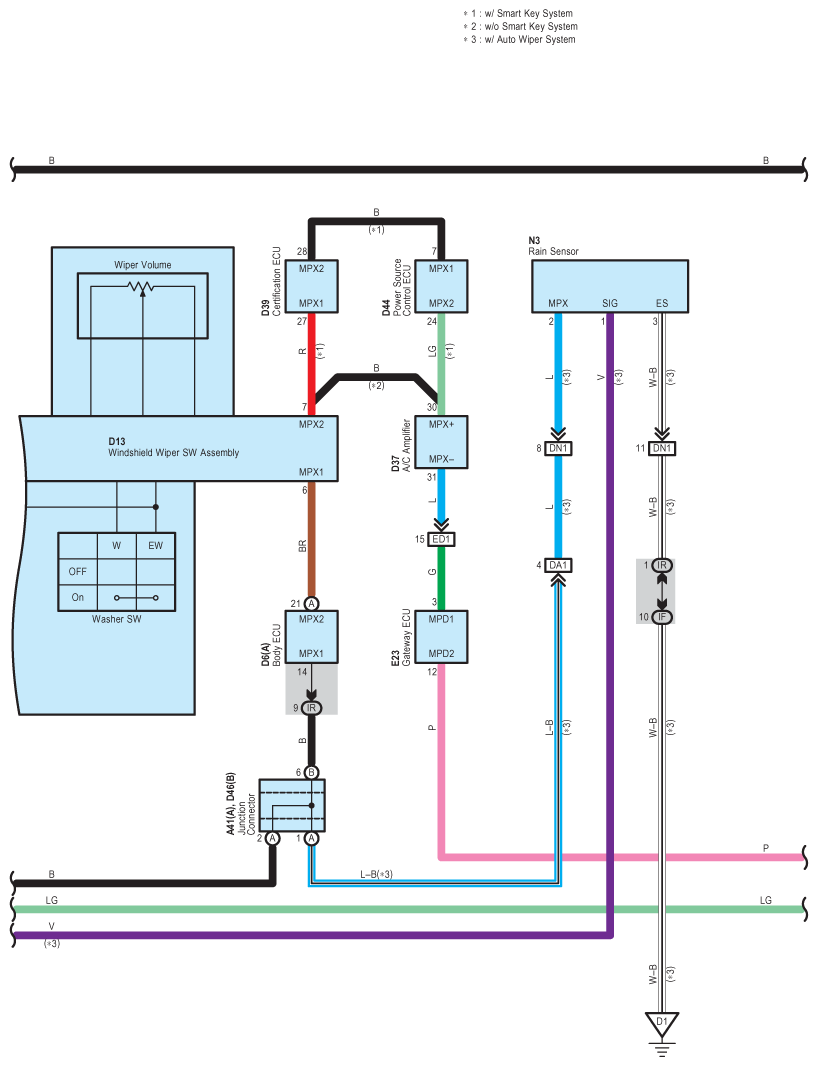

Fig 4: Wiper And Washer System Wiring Diagram (4 Of 5)
G08780773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

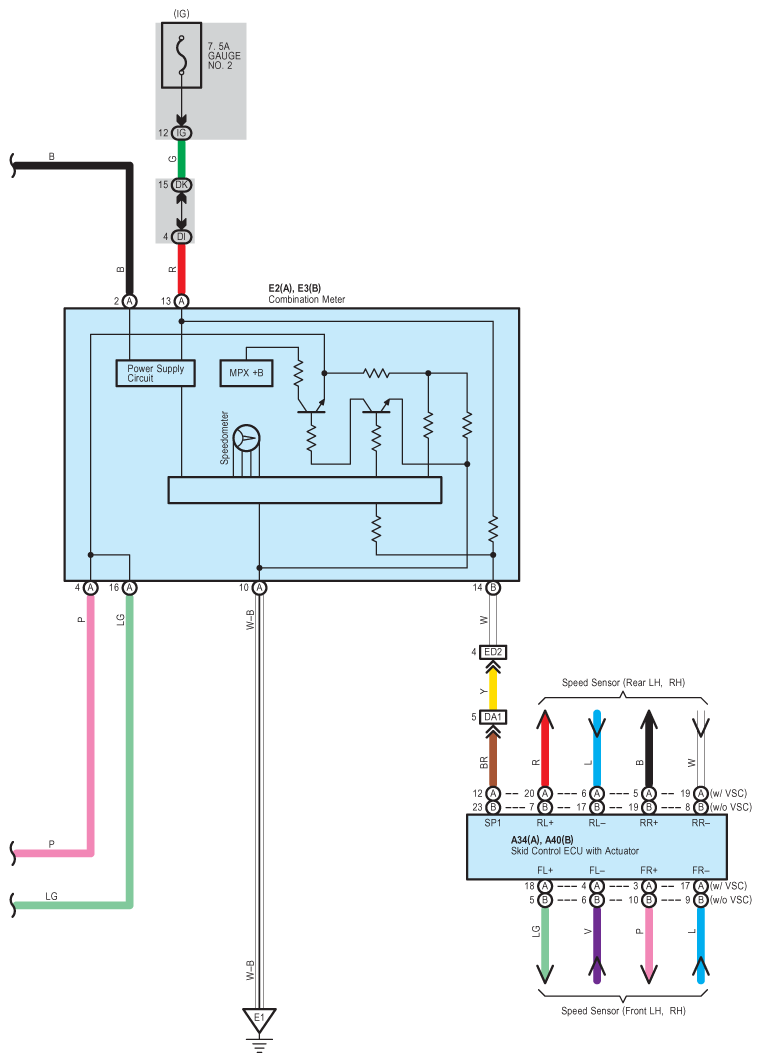

Fig 5: Wiper And Washer System Wiring Diagram (5 Of 5)
G08780774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
