Charging System: Generator: Components

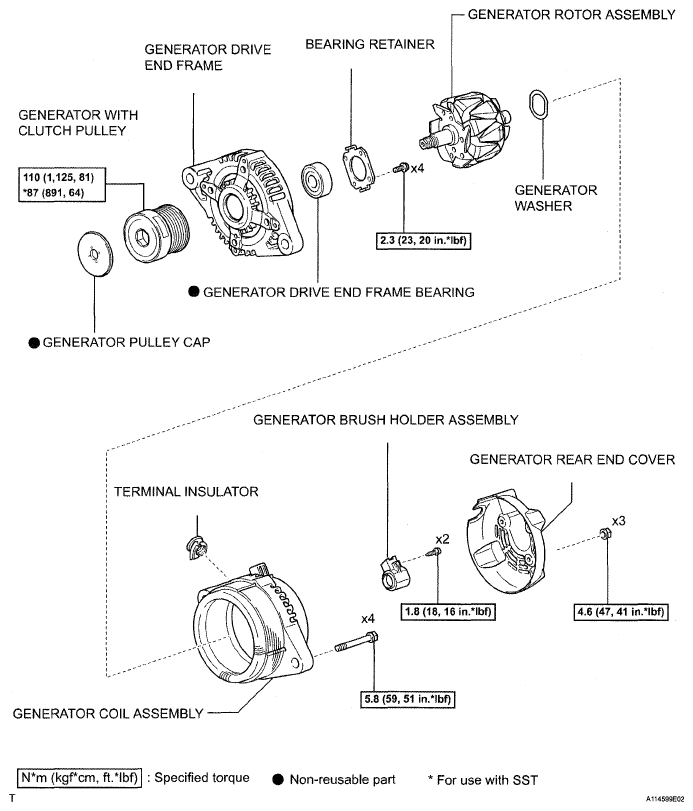

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G05000431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

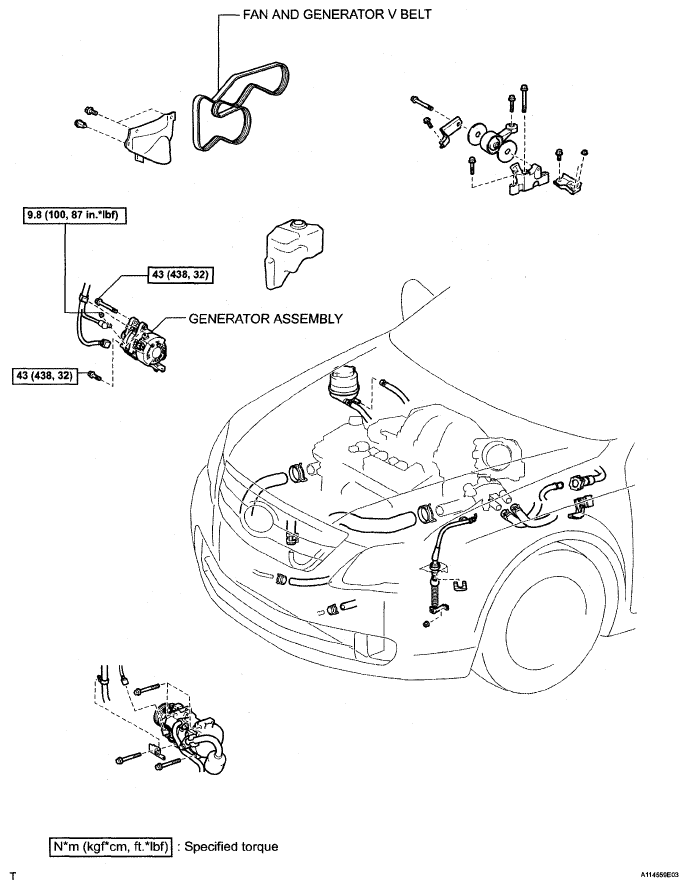

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G05000432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
