Engine Switch Indicator Circuit: Wiring Diagram

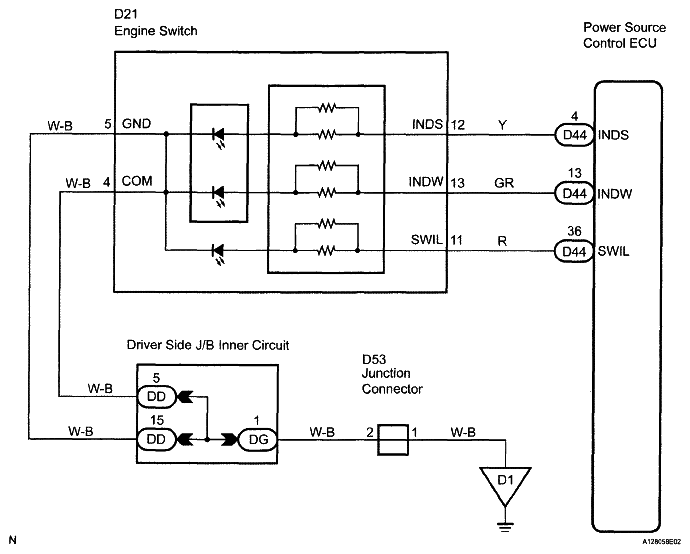

Fig 1: Engine Switch Indicator - Wiring Diagram
G05000379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
