Starting System: Starter: Components

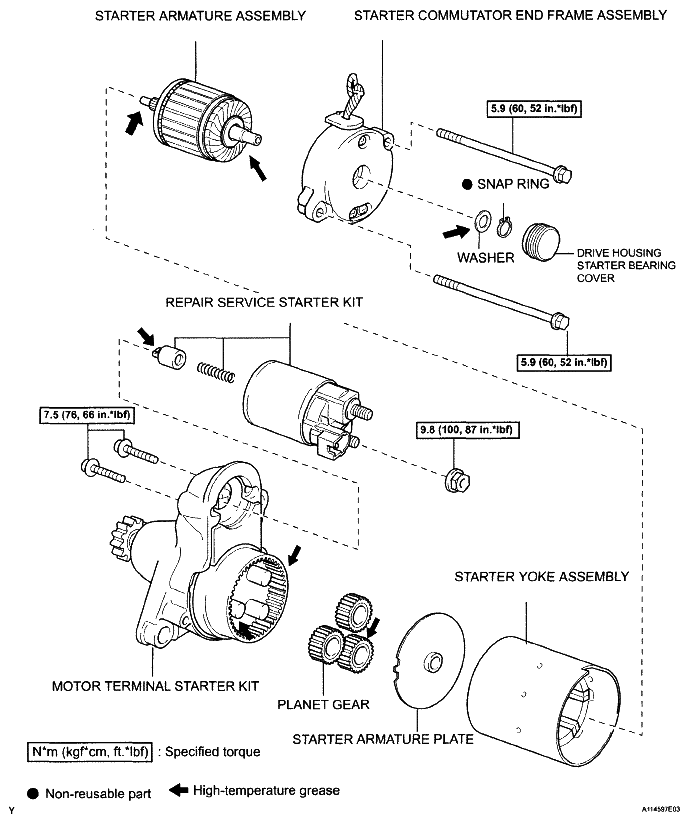

Fig 1: Starter Replacement Components With Torque Specifications
G05000384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
