Rear Shock Absorber With Coil Spring: Components
Fig 1: Identifying Rear Shock Absorber With Coil Spring Component Replacement (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

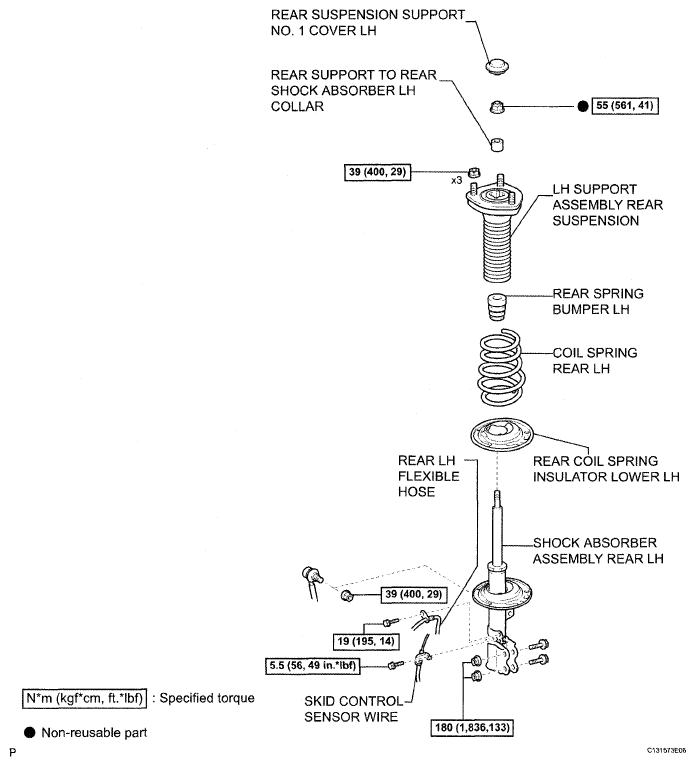

Fig 2: Rear Shock Absorber With Coil Spring Component Replacement With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Rear Shock Absorber With Coil Spring Component Replacement With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
