Fuel Tank: Components

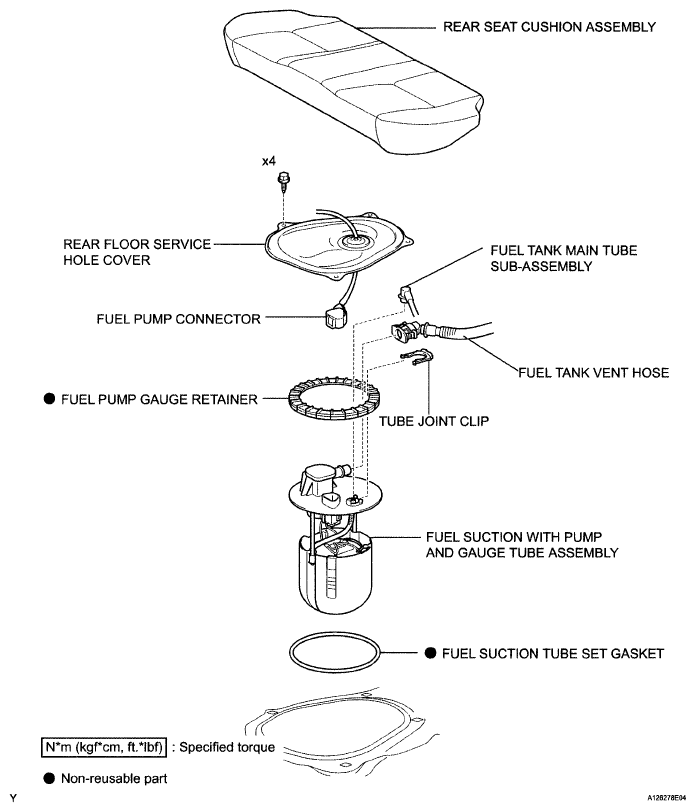

Fig 1: Identifying Fuel Tank Components (1 Of 3)
G05193281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G05193282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05193283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
