Power Outlet for 12V: Notes

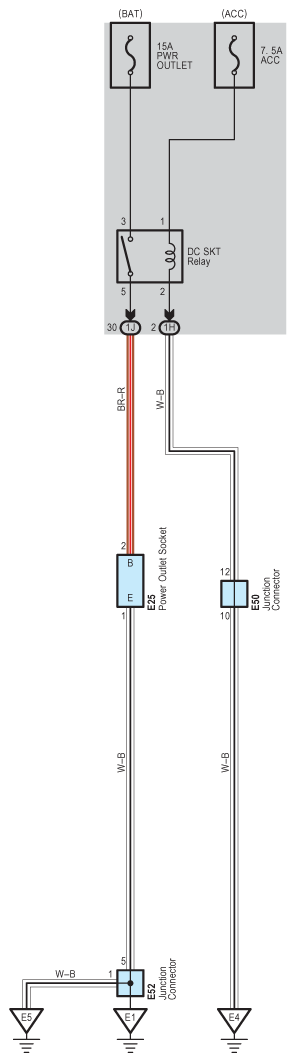

Fig 1: Power Outlet (For 12V) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
