Oil Pump: Components

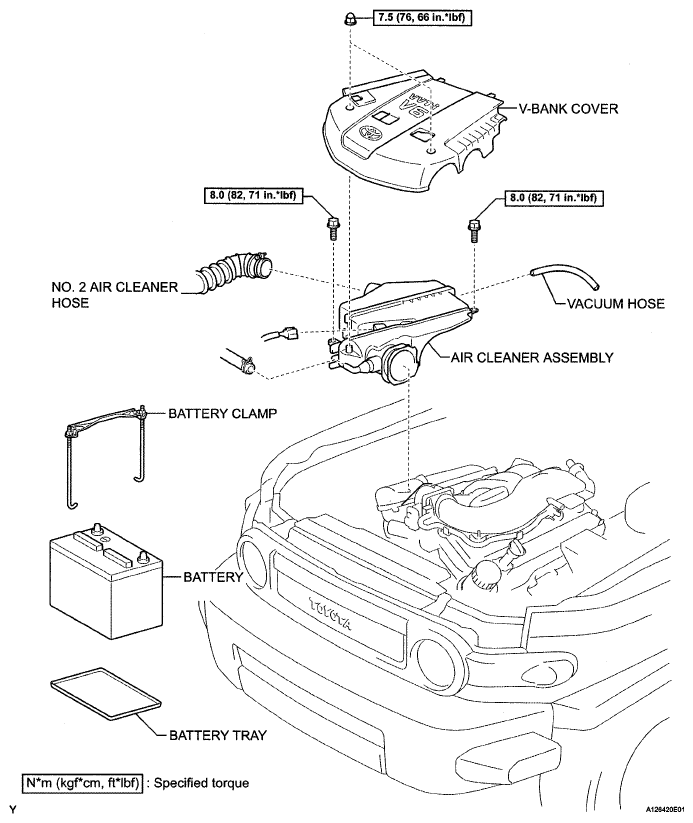

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

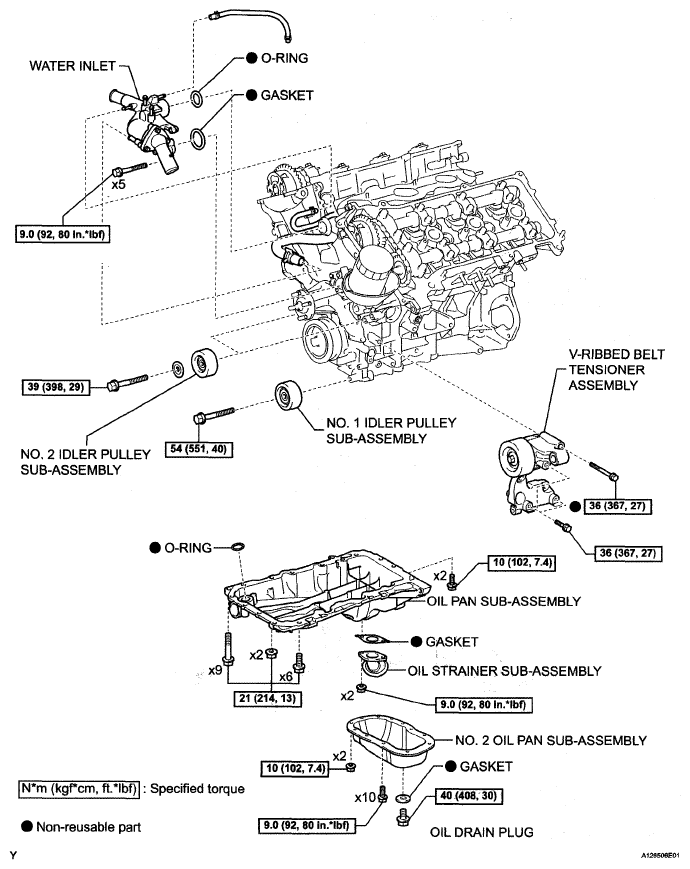

Fig 2: Timing Chain Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

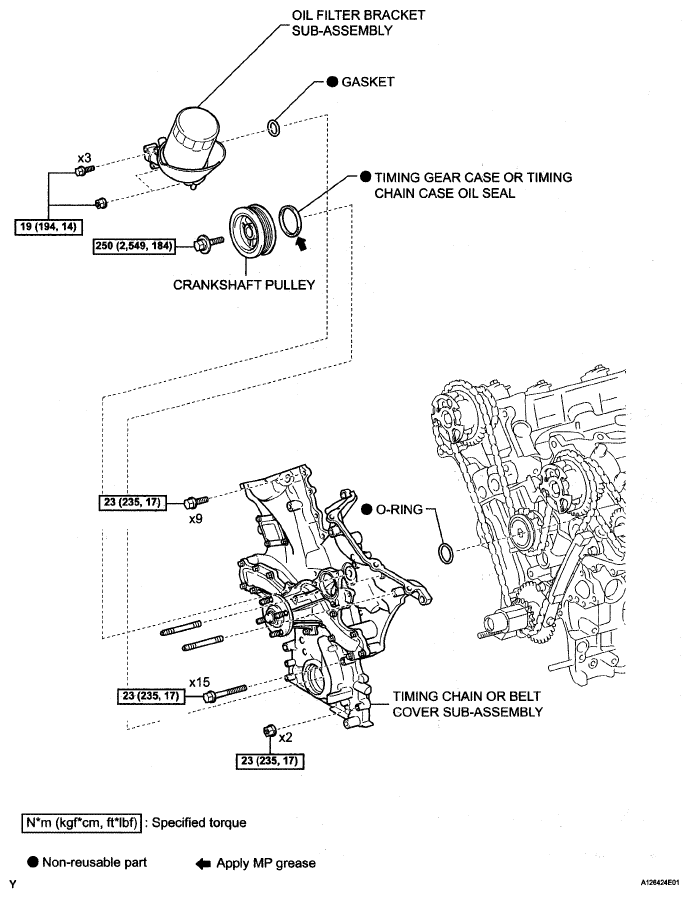

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

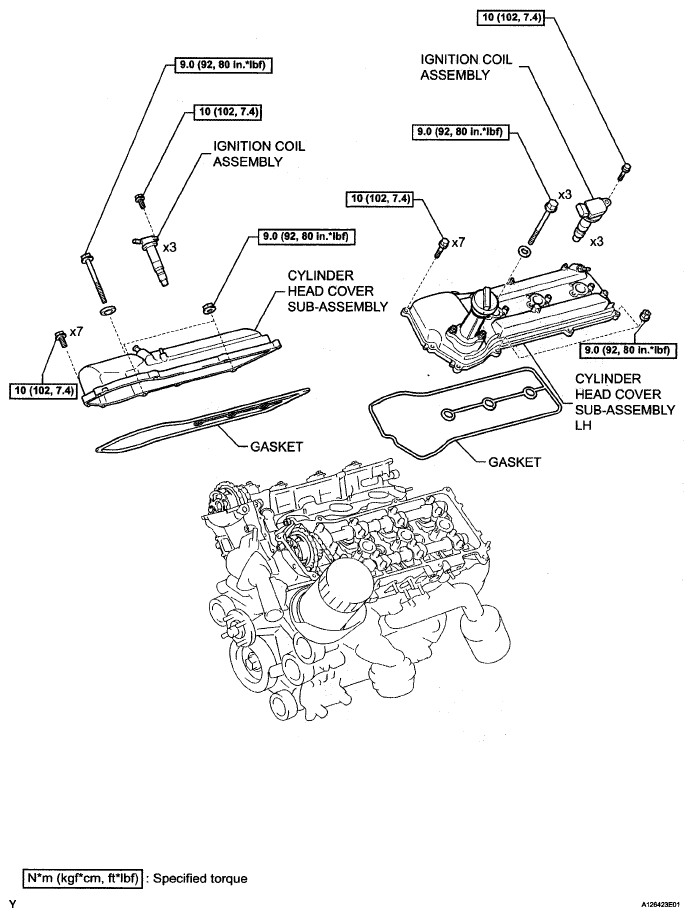

Fig 4: Timing Chain Replacement Components With Torque Specifications (4 Of 5)

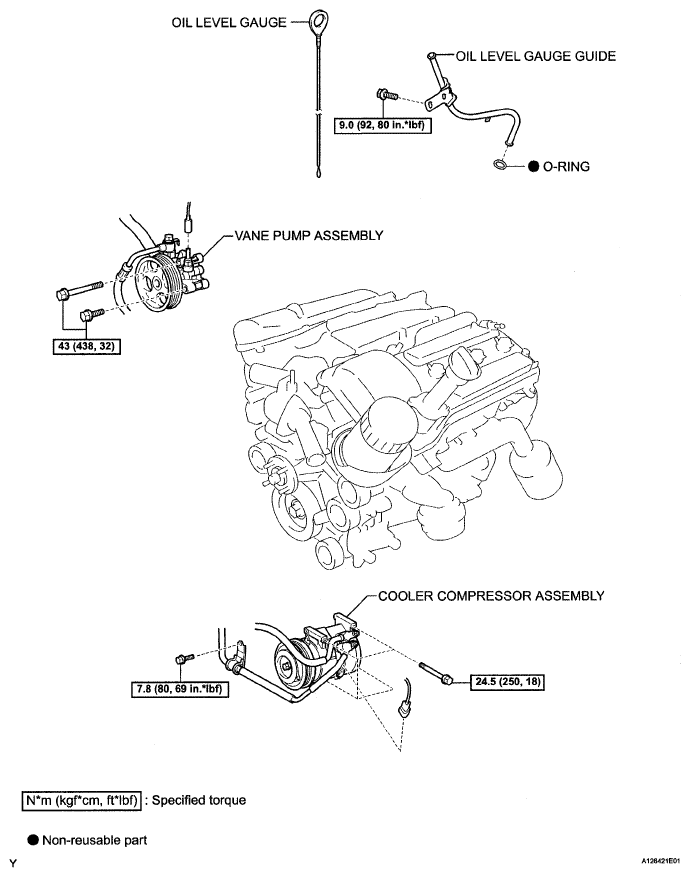

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 6)

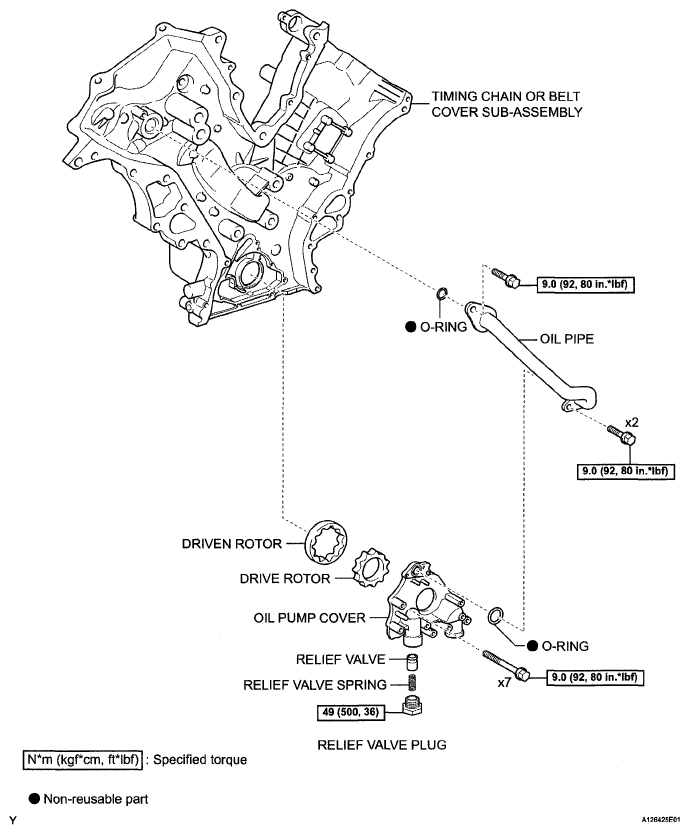

Fig 6: Oil Pump Replacement Components With Torque Specifications (6 Of 6)
