Cruise Control Main Switch: Inspection

  1. INSPECT CRUISE CONTROL MAIN SWITCH

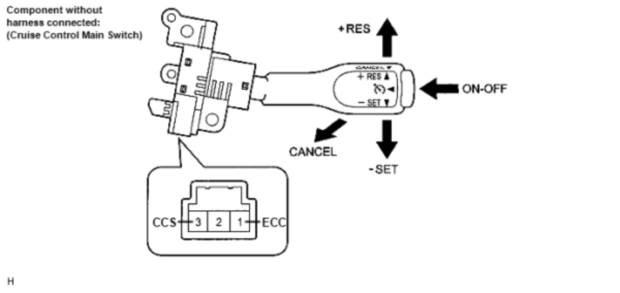

    Fig 1: Inspecting Cruise Control Main Switch
    G04831005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance and check the results in accordance with the value(s) in STANDARD RESISTANCE REFERENCE TABLE .

      Standard resistance

      CRUISE CONTROL MAIN SWITCH

      Tester Connection Switch Condition Specified Condition
      1 (ECC) - 3 (CCS) Neutral 10 kΩ or higher
      1 (ECC) - 3 (CCS) +/RES 216 to 264 Ω
      1 (ECC) - 3 (CCS) -/SET 567 to 693 Ω
      1 (ECC) - 3 (CCS) CANCEL 1,386 to 1,694 Ω
      1 (ECC) - 3 (CCS) Main Switch off 10 kΩ or higher
      1 (ECC) - 3 (CCS) Main Switch on Below 1 Ω

      If the result is not as specified, replace the cruise control main switch.
