Power Outlet: Clock: Components

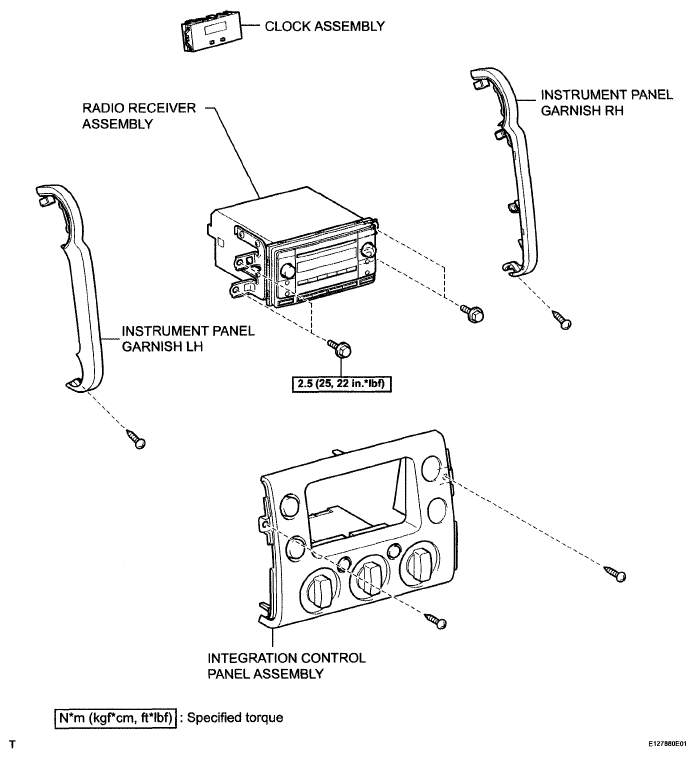

Fig 1: Clock Replacement Components With Torque Specifications
G05114243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
