Quarter Window Glass: Components

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications (1 Of 5)
G05115104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Quarter Window Glass Components (2 Of 5)
G05115105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

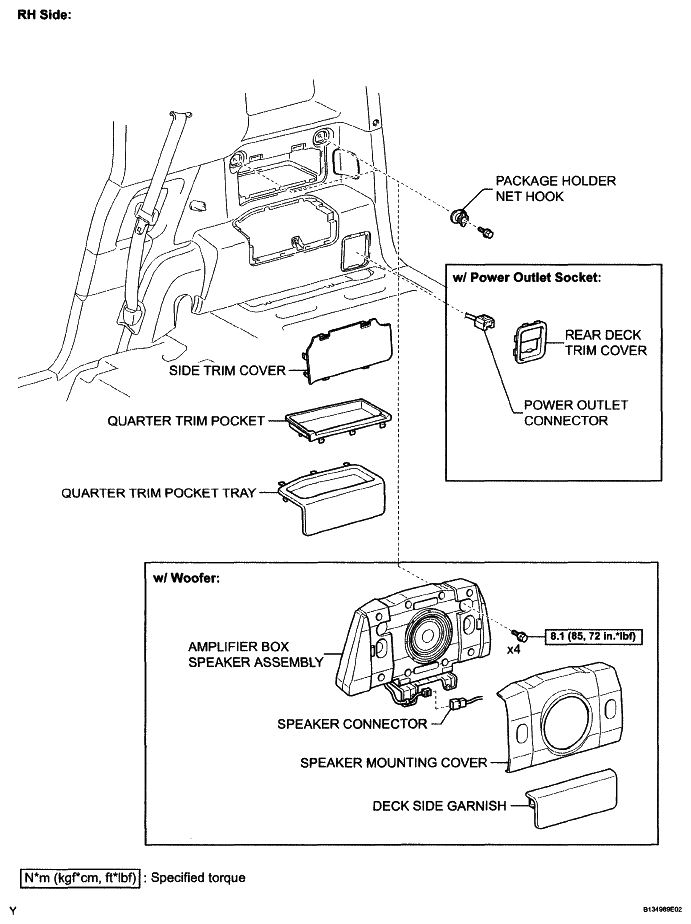

Fig 3: Quarter Window Glass Replacement Components With Torque Specifications (3 Of 5)
G05113598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

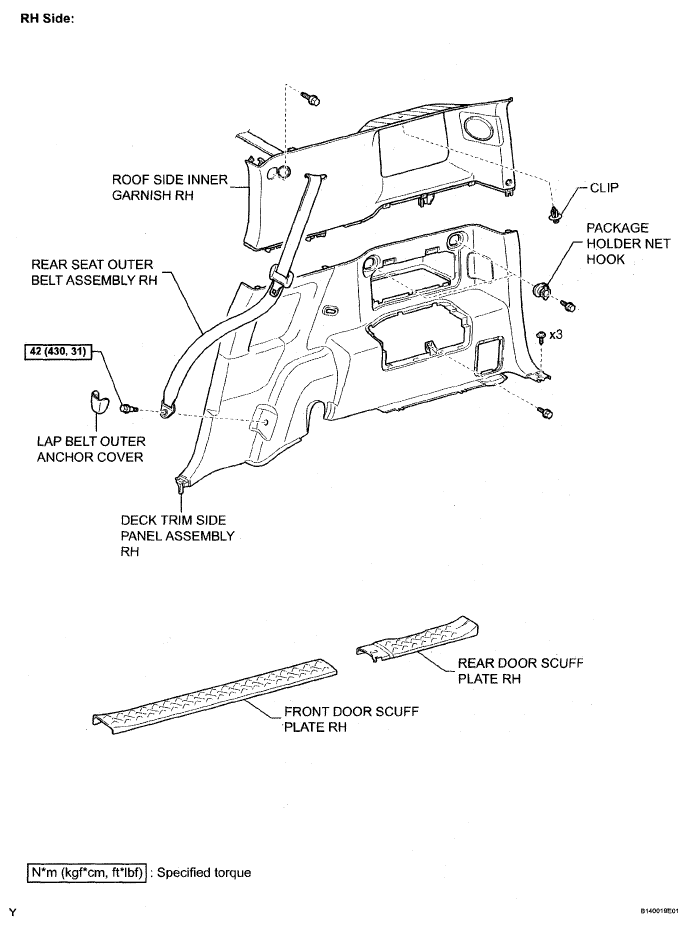

Fig 4: Quarter Window Glass Replacement Components With Torque Specifications (4 Of 5)
G05114377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

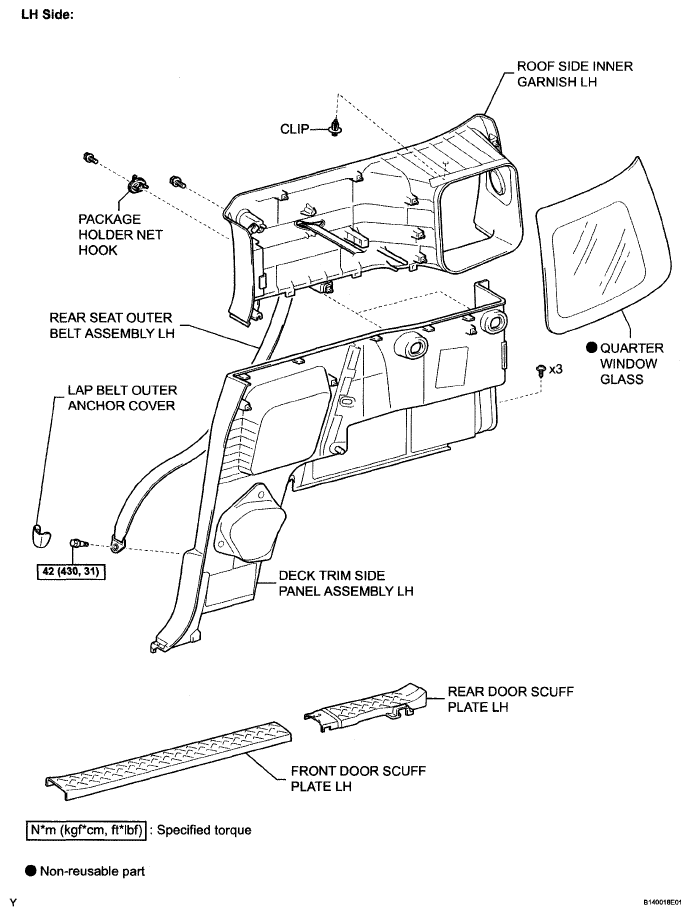

Fig 5: Quarter Window Glass Replacement Components With Torque Specifications (5 Of 5)
G05114378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
