Automatic Air Conditioning: Notes

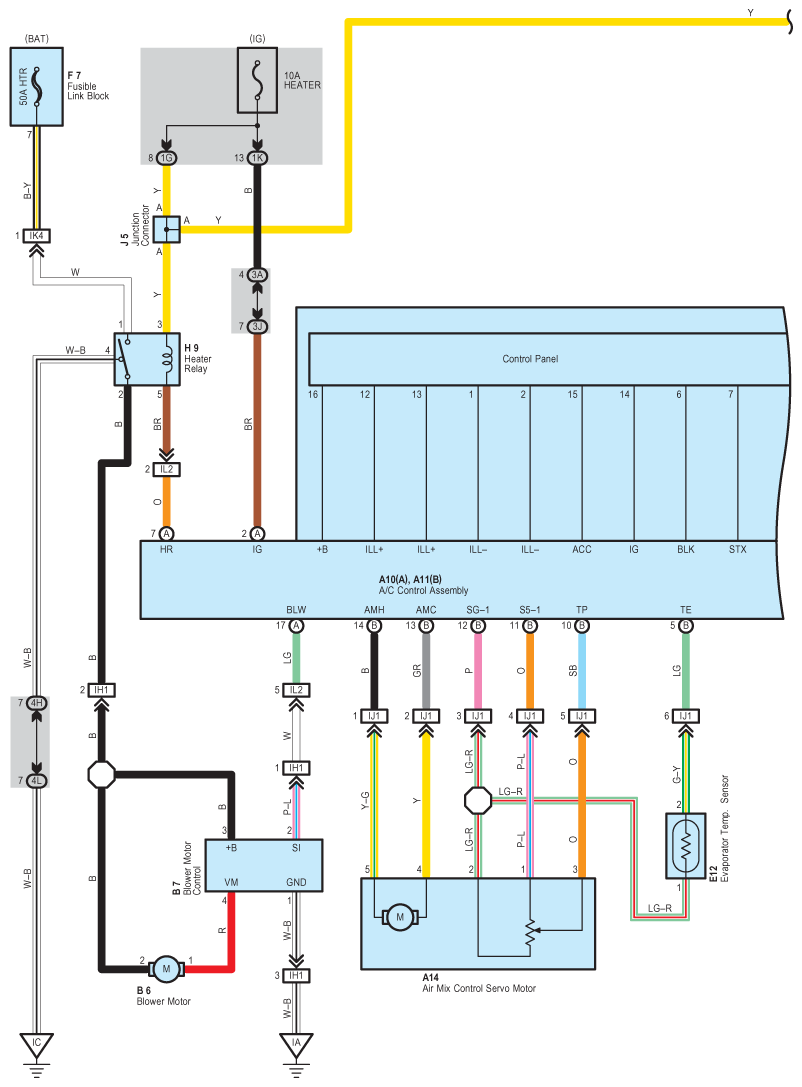

Fig 1: Automatic Air Conditioning System Wiring Diagram (1 Of 3)
G08860999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

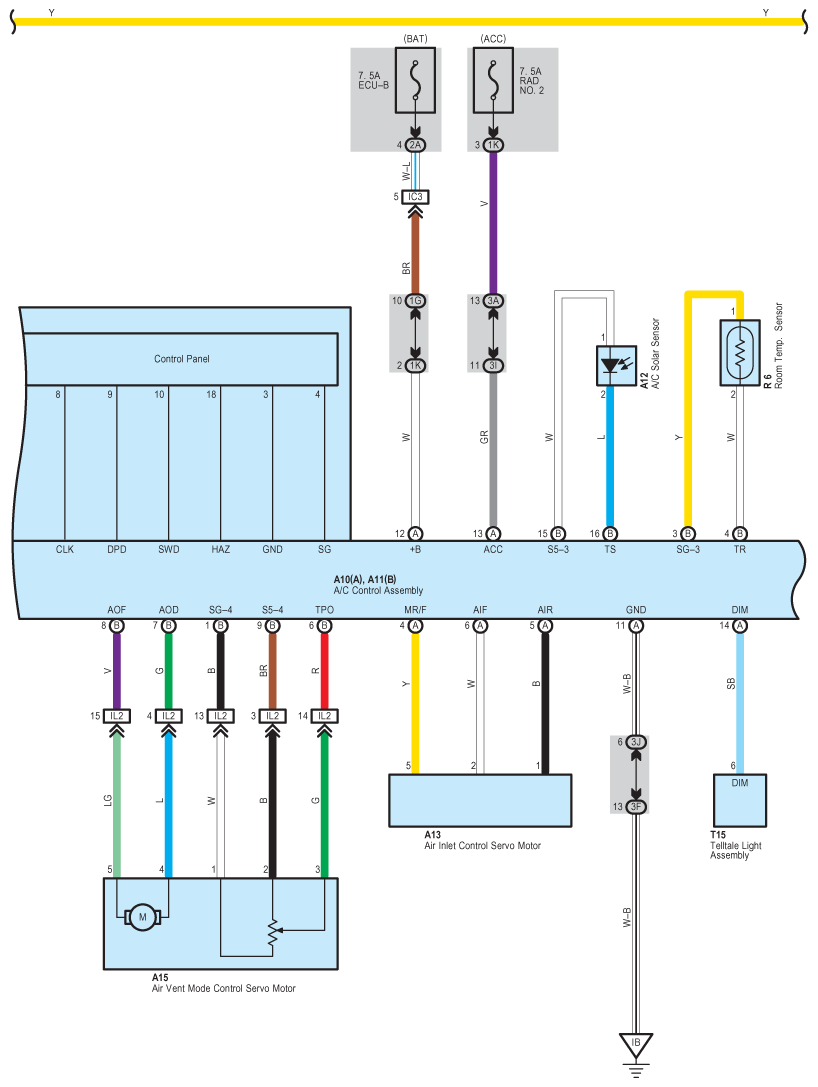

Fig 2: Automatic Air Conditioning System Wiring Diagram (2 Of 3)
G08861000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

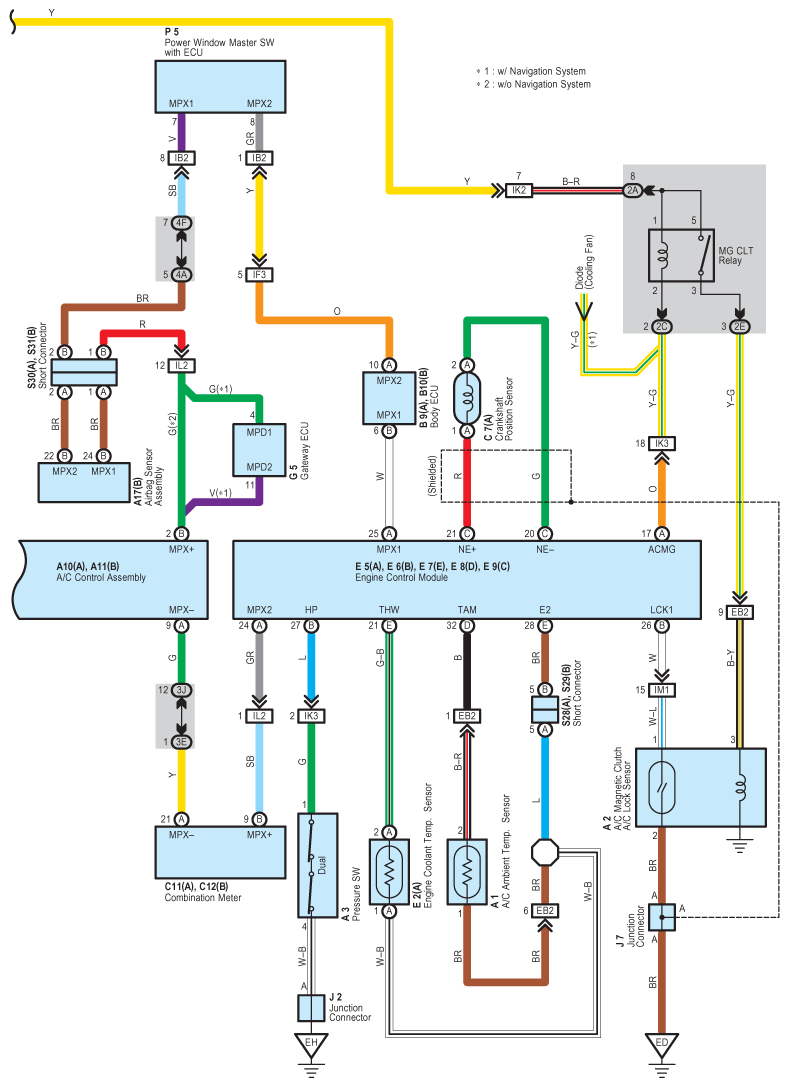

Fig 3: Automatic Air Conditioning System Wiring Diagram (3 Of 3)
G08861001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
