Door Lock Control: Notes

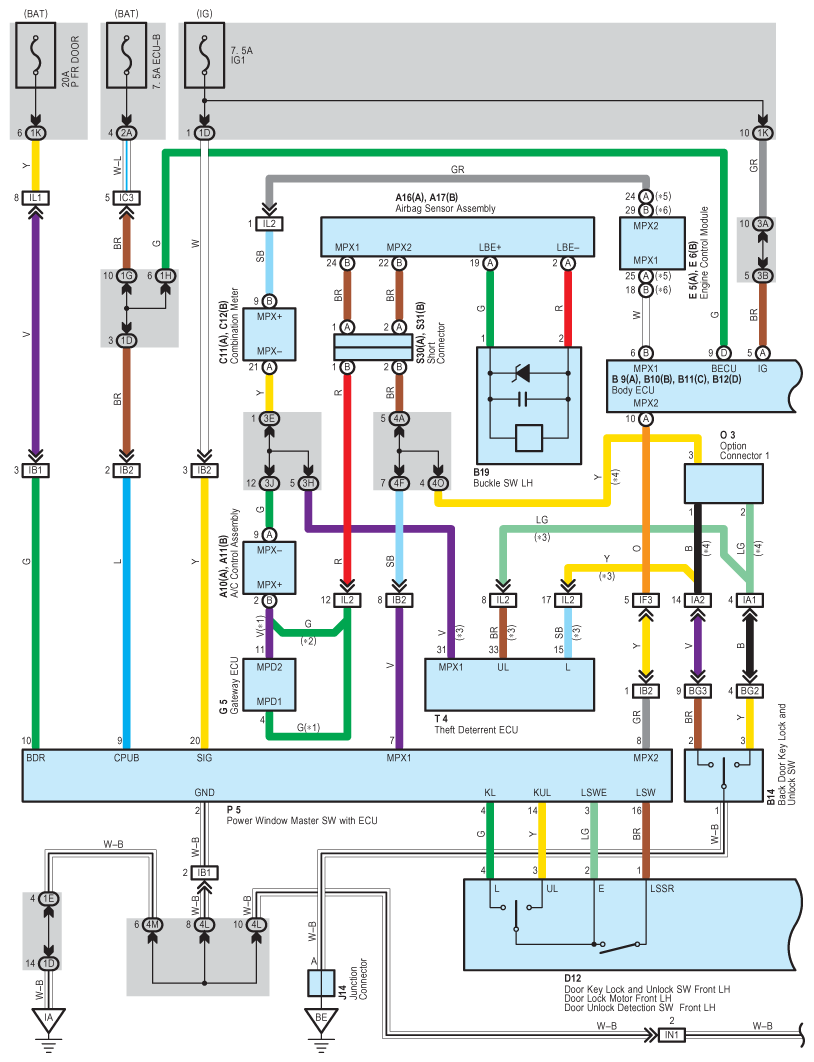

Fig 1: Door Lock Control System Wiring Diagram (1 Of 3)
G08860944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

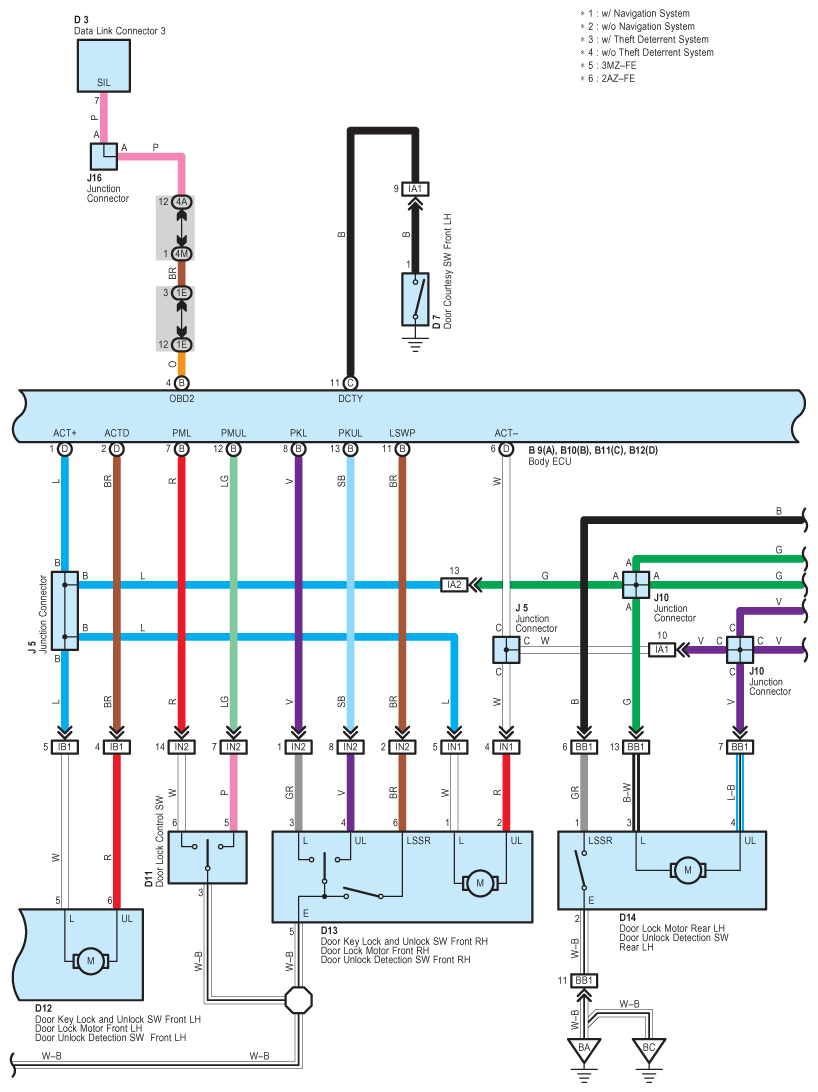

Fig 2: Door Lock Control System Wiring Diagram (2 Of 3)
G08860945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

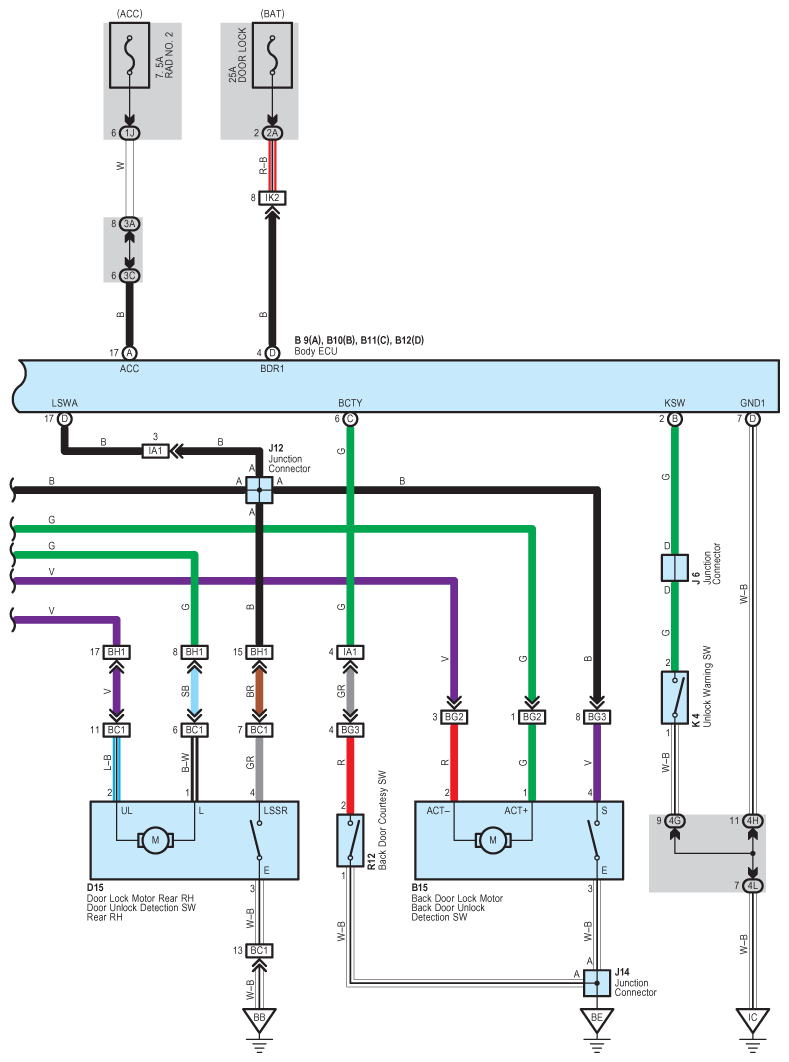

Fig 3: Door Lock Control System Wiring Diagram (3 Of 3)
G08860946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
